oil cooler fabrication

[mikep99]

would it be possible to pick up the oil cooler lines and chop them and fit the -12 type connectors somewhere along them?
I got shut of my old oil cooler a while back for £100 I think - the connectors on the pipes at engine end looked ok...
Mike

yes,exactly that-and fit a generic cooler-or even a modded standard one with ends to suit normal fittings-saves the relocation etc..
a repair for a little fabrication,two lengths of hose and a handfull of an12 fittings,future proofs the car too

keep an eye out on here /ebay as oil coolers/pipes come up now and again in the classifieds...
or put a wanted post up.
Lots of AN12 adapters on ebay to look at to see which will fit the OE pipes...

ta
Mike

[weekenny]

I've a cooler and pipes that I removed when I fitted the Forge kit a couple of weeks ago, needed a fast turn around so went with a ready made solution.

[rs user]

I've a cooler and pipes that I removed when I fitted the Forge kit a couple of weeks ago, needed a fast turn around so went with a ready made solution.

hi-i think thats why most folk do it-quick cure,i wouldnt buy a used cooler for my car tbh but if you want to chop off the engine ends of the pipes leaving a few inches and sell me that bit to experiment with i would happily buy if cheap enough...

[weekenny]

Pm me your address and I'll cut those off and send them to you if you cover the postage.

[Daytona]

I was going to go down the universal Setrab route and managed to find some rare male to male m22 ends to mate to the OE hoses but bought a Radtec cooler in the end which is a direct fit.

[rs user]

I was going to go down the universal Setrab route and managed to find some rare male to male m22 ends to mate to the OE hoses but bought a Radtec cooler in the end which is a direct fit.

cheers for the links-the o/e hoses seem to be the weak link,and the fact that they dont come off the standard cooler very well
most folk[even a tight git like me] wouldnt mind replacing a pair of hoses every 5 years or more but on top of a cooler it becomes an expensive task...

[schacks]

Hi arthur.. It was me who bought mikep's old oil cooler and lines.
I cut off both ends on the old oil cooler and welded dash 12(an12)male alu ends on. 6£ each, did the same to the pipe ends that fits in to the sump but in steel of course..
Then its just a matter of buing 2,5-3 m of black nylon braided hose and a few fittings.. 1 x strait male and so on.
Its a good kit that works and is pretty cheap, if your handy with spanners of course.
Let me know if you need more info

ole

[rs user]

Hi arthur.. It was me who bought mikep's old oil cooler and lines.
I cut off both ends on the old oil cooler and welded dash 12(an12)male alu ends on. 6£ each, did the same to the pipe ends that fits in to the sump but in steel of course..
Then its just a matter of buing 2,5-3 m of black nylon braided hose and a few fittings.. 1 x strait male and so on.
Its a good kit that works and is pretty cheap, if your handy with spanners of course.
Let me know if you need more info

ole

exactly what i had in mind-can you send me a linky for the an12 steel ends and the ally ones please
or details of a supplier..

found these for the engine outlets-http://www.ebay.co.uk/itm/Motamec-AN-JI ... 0895060395?
for cooler..http://www.ebay.co.uk/itm/Motamec-AN-JI ... 1135664146?


is that similar?

[Tommcole]

sorry to re kindle an old thread but i want to make my own kit too .

schacks - what fittings did you buy for yours ? and other parts to make your kit ?

was it a success ?

going to cut my old ones off my cooler and weld on new and make new lines up myself .. i think i could do it all for less than 100 quid

[Lukes3]

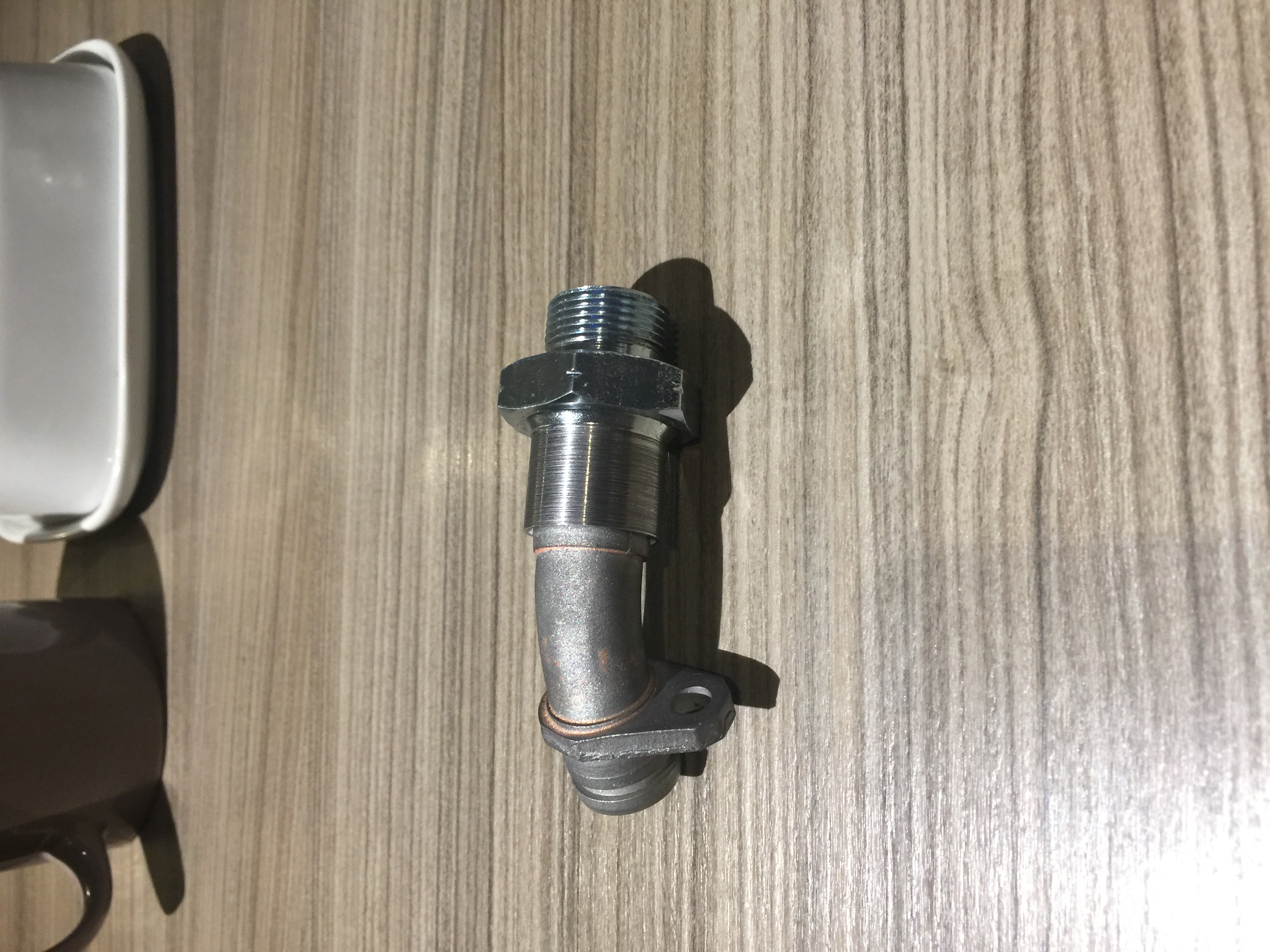

I made these out of the old pipes/fittings an now use 1/2” bsp allround.

[Tommcole]

Cheers mate appreciate it
