Camshaft Timing
Re: Camshaft Timing
Have a search on Google for "VCDS camshaft chain stretch". From what I can see on this problem that affects some VAG engines (not ours AFAIK) it looks like the group 93 timing becomes progressively more negative as the chain stretches. This would imply that as the chain stretches, the camshaft doesn't turn as much as it should and lags behind the crank.
Not sure if that proves you or me right.
/you, by the look of it, reading back.
//Although this is deduced from VCDS data on a completely different engine. I am pretty sure the K in KW means kurbelwinkel = Crank Angle.
Not sure if that proves you or me right.
/you, by the look of it, reading back.
//Although this is deduced from VCDS data on a completely different engine. I am pretty sure the K in KW means kurbelwinkel = Crank Angle.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: Camshaft Timing
re 093 being in elsawin - I'm being blind - where is it?
The only reference I found in elsawin is what I printed to a pdf above - referencing 090 and 094 I think?

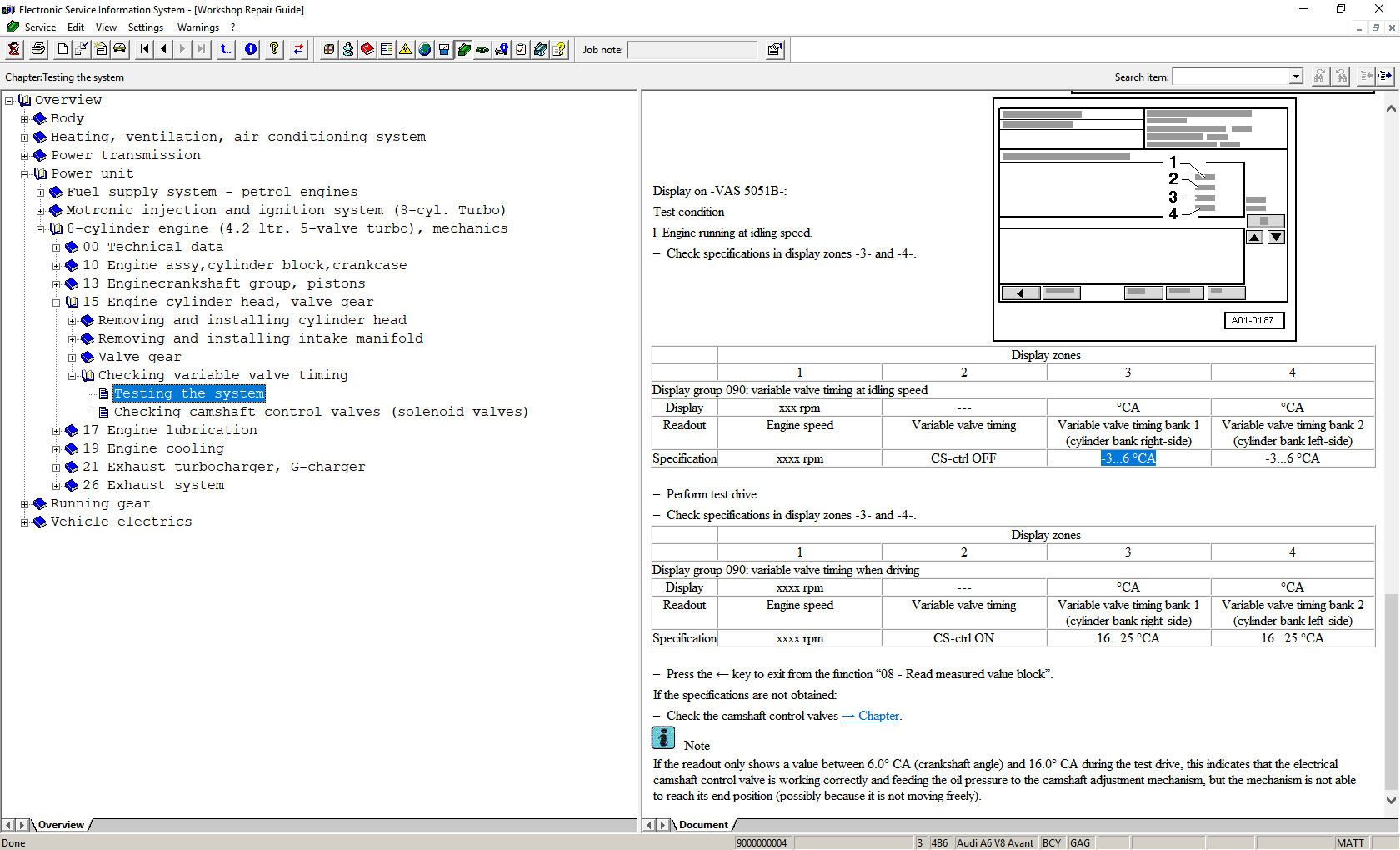

This is under Power Unit => 8 Cyl Engine => Engine Cylinder Head, Valve Gear => Checking Variable Valve Timing => Testing The System:
The only reference I found in elsawin is what I printed to a pdf above - referencing 090 and 094 I think?
This is under Power Unit => 8 Cyl Engine => Engine Cylinder Head, Valve Gear => Checking Variable Valve Timing => Testing The System:
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
P.S. If anyone wants a copy of elsawin, just shoot me a PM.
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
Is it one on a virtual machine?
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: Camshaft Timing
No. Install it on your PC/laptop etc.
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
Or the shoes wear. The new chain & shoes on Bank 1 have worked a treat.
It does, I had already googled it. Kurbelwinkel. What a great word.
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
Cool. I am interested then. These cumbersome VM do my head in. Haven't got a recent ETKA have you?
The 93 might be in with the ignition system / sensors instead of valve gear. Have a look for Hall sensors. If you still can't find it I'll crank up the VM and have a look for you.
The 93 might be in with the ignition system / sensors instead of valve gear. Have a look for Hall sensors. If you still can't find it I'll crank up the VM and have a look for you.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: Camshaft Timing
I just use https://ifinterface.com/page/page3.php?langid=1
It's live so gives me "real" NLA status on all the bits I want.
It's live so gives me "real" NLA status on all the bits I want.
Shoppinit wrote: ↑Fri Jan 03, 2020 7:44 pmCool. I am interested then. These cumbersome VM do my head in. Haven't got a recent ETKA have you?
The 93 might be in with the ignition system / sensors instead of valve gear. Have a look for Hall sensors. If you still can't find it I'll crank up the VM and have a look for you.
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
Yeah, it's clunky though.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: Camshaft Timing
Got it. Thank you. pdf here for anyone else that finds this useful.
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
I reset the cambelt timing based on eyeballing the exhaust timing marks, plus locked with cam bar and crank pin in.
You can see both intake and exhaust are pretty well aligned. I primarily tried to get the exhaust aligned - think I did OK?
However, Bank 2 is still marginal. So I guess it's either the hall sensor or the cam phaser that's off - but, intake on bank 2 looks good in the pics - so maybe it's doing something when the oil pressure comes up? I dunno. Will have a look at the hall sensor later to check that's on correctly (am sure it is) and then probably put the old dephaser back in bank 2 with it's new shoes on - I've got the gasket it needs on order already.

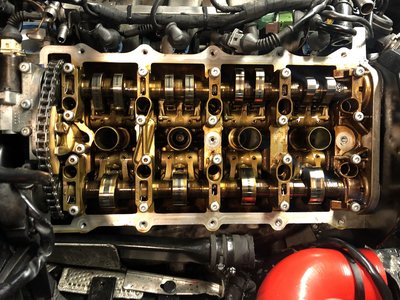

Bank 1 Exhaust:

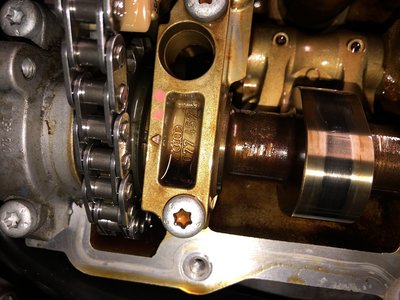

Bank 1 Intake:

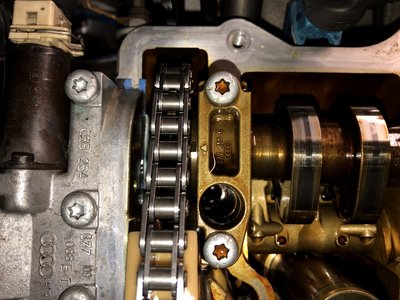

Bank 2 Exhaust:
Bank 2 Intake:

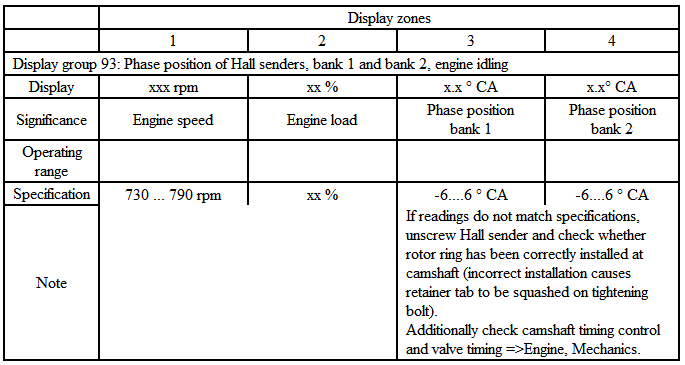

And the new timing results:
No SAI and the water pipe mode does make it easy to work on the OS (Bank 1) though, which is good:
You can see both intake and exhaust are pretty well aligned. I primarily tried to get the exhaust aligned - think I did OK?
However, Bank 2 is still marginal. So I guess it's either the hall sensor or the cam phaser that's off - but, intake on bank 2 looks good in the pics - so maybe it's doing something when the oil pressure comes up? I dunno. Will have a look at the hall sensor later to check that's on correctly (am sure it is) and then probably put the old dephaser back in bank 2 with it's new shoes on - I've got the gasket it needs on order already.
Bank 1 Exhaust:
"not a professional engineer, mechanic and mechanist"
Re: Camshaft Timing
Noice. What was it?
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
-
IchBautAuto
- 4th Gear
- Posts: 618
- Joined: Thu Feb 20, 2014 11:23 pm
- Location: Australia
Re: Camshaft Timing
Engine speed is different? Is this relevant? Spec calls for 730 - 790 RPM.
C5 RS6, Milltek and Wagners: B5 RS4 450 + HP: A4 1.8 GP TQS original: 1963 UNIMOG 404:
Re: Camshaft Timing
Only because the motor was not quite fully warm when I screenshotted it.
"not a professional engineer, mechanic and mechanist"
