Gearbox has started to ping up the solid red gear indicator in the cluster , just plugged in and retrieved this code
18155 - transmission solenoid power relay
P1747 35-00 open or short circuit to ground
No engine codes or abs codes
Cant seem to find much info regarding whether it's in the mechatronic or in a relay in the car somewhere so I can start checking power/ground etc.
Wondering if anyone has had this before?
18155 - transmission solenoid power relay
Re: 18155 - transmission solenoid power relay
If that power relay has any input via the F125 switch and that hasn't been replaced in a few years I'd probably start with that.

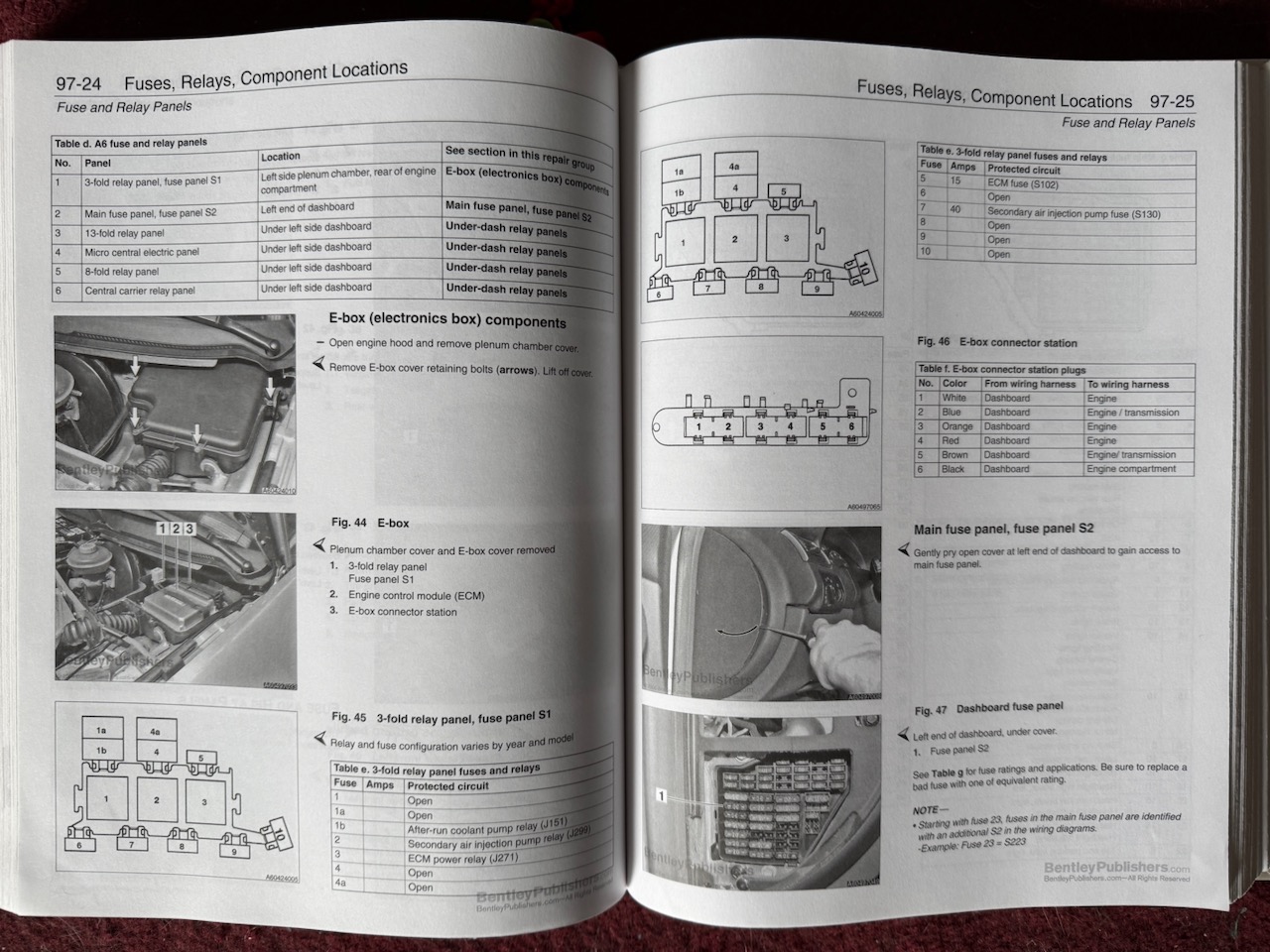

There's a fusebox under the bonnet for gubbins as well.

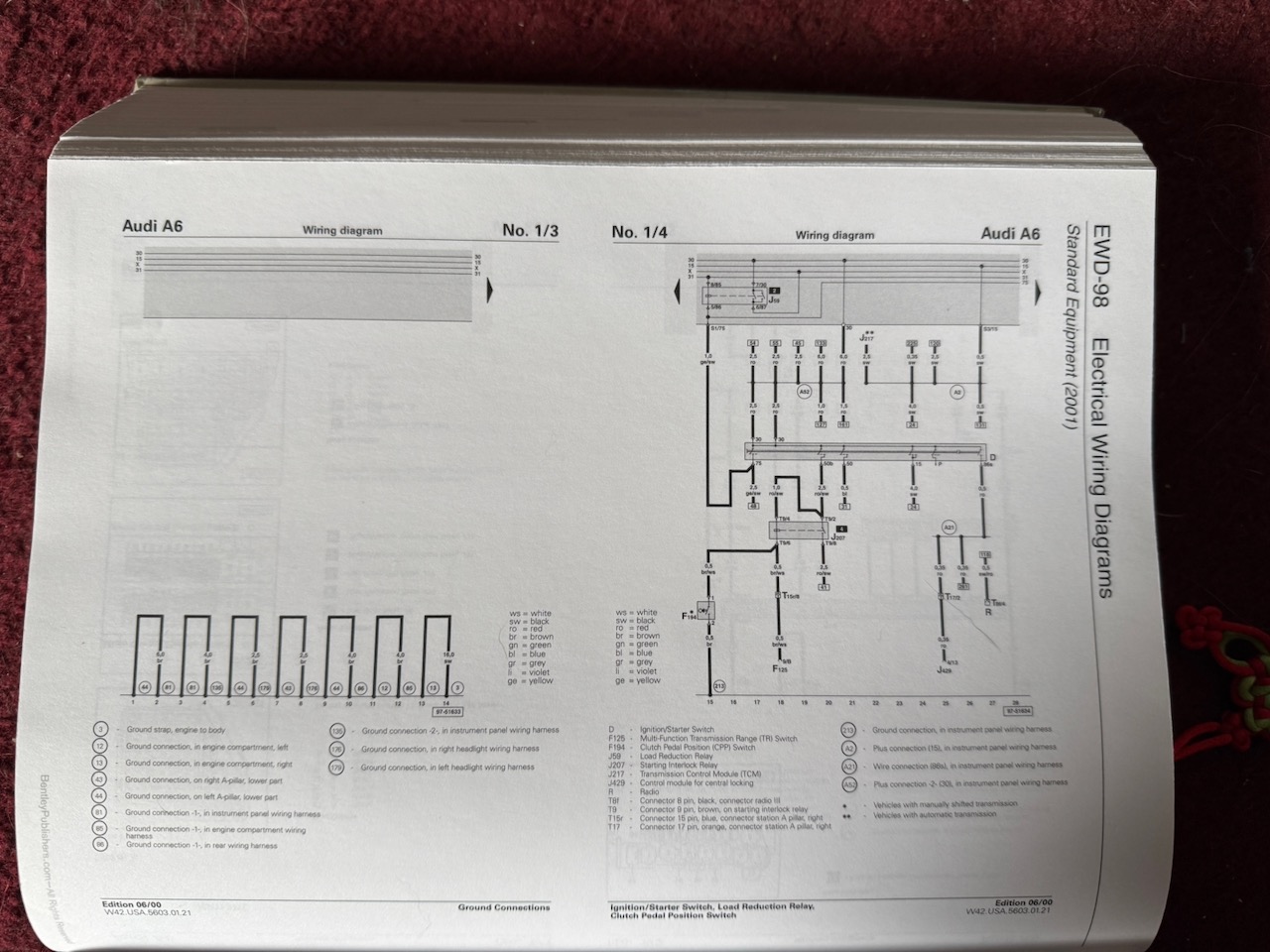

Couple of wiring diagrams in the Bentley manual that might help. Looks like there are a lot of earth points to check.
There's a fusebox under the bonnet for gubbins as well.
Couple of wiring diagrams in the Bentley manual that might help. Looks like there are a lot of earth points to check.
- Attachments
-
-
Re: 18155 - transmission solenoid power relay
Is the fault always present or does it occur randomly? If you reset it, does it go away for a while?

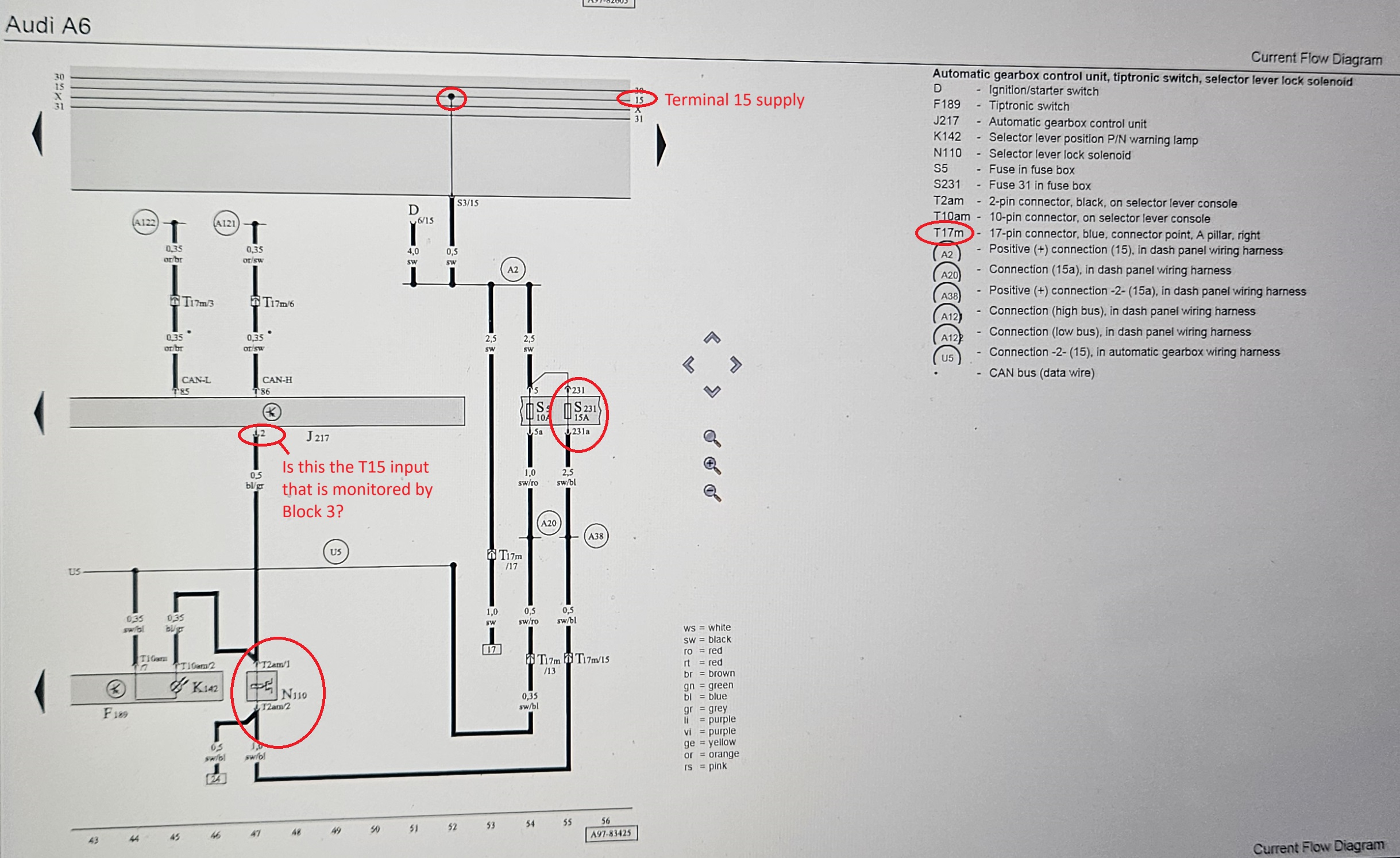

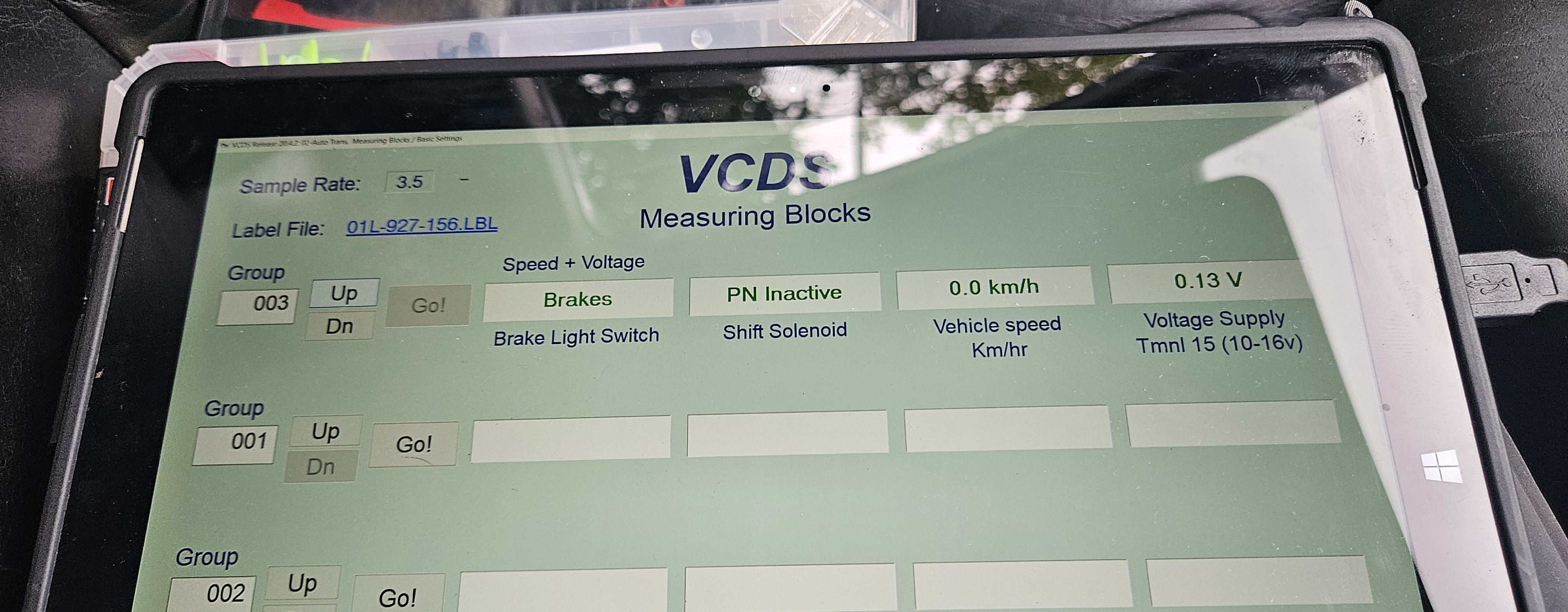

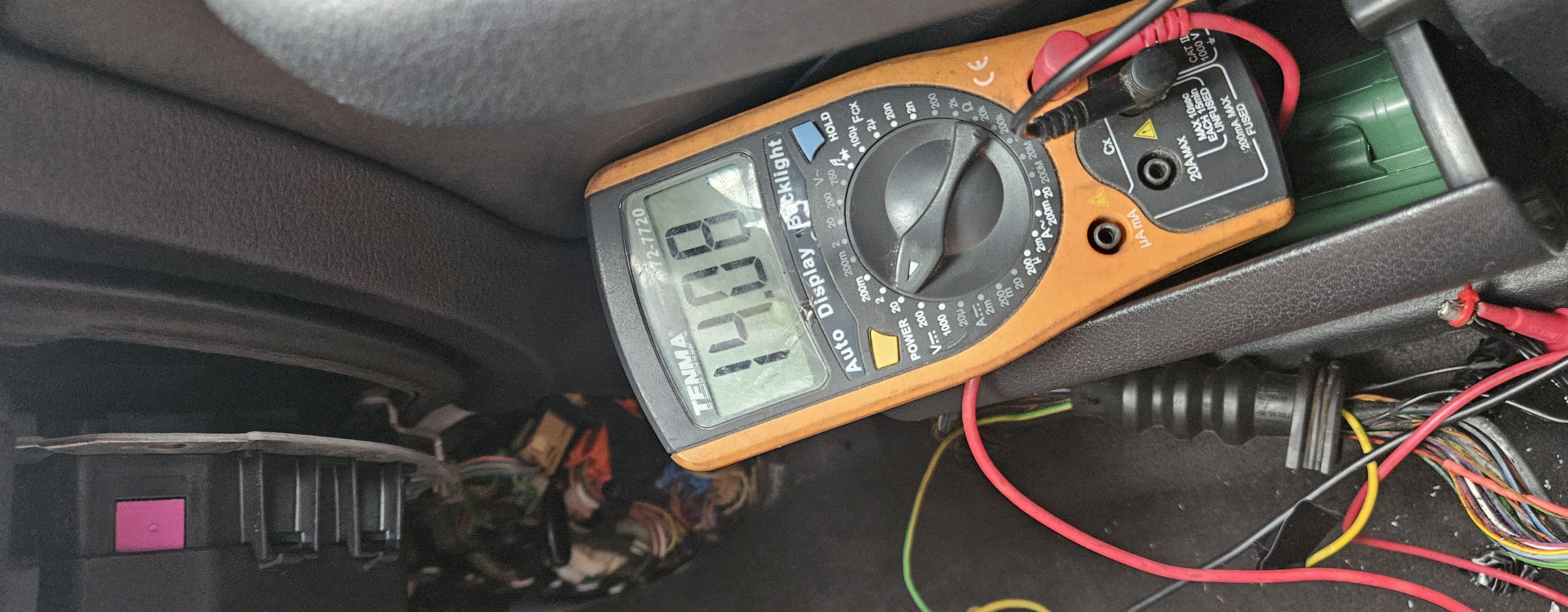

This fault code is to do with the power supply to the solenoids so I'd check that the TCU is getting the right voltage first since they get their power from there. Measuring block 003 will tell you the supply voltage. If that looks OK, I would check the 16pin connector to the valve body for corrosion / damage.
If that all looks OK then I'd swap out the TCU to see if it's that. Not easy if you don't have a spare.
My feeling is that it's not the F125 but it's such an insidious little <beep> that you can never be sure.
This fault code is to do with the power supply to the solenoids so I'd check that the TCU is getting the right voltage first since they get their power from there. Measuring block 003 will tell you the supply voltage. If that looks OK, I would check the 16pin connector to the valve body for corrosion / damage.
If that all looks OK then I'd swap out the TCU to see if it's that. Not easy if you don't have a spare.
My feeling is that it's not the F125 but it's such an insidious little <beep> that you can never be sure.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: 18155 - transmission solenoid power relay
Thanks for the replys gents , it happens all the time now , it was sporadic the first few days , will get the carpet up and check the TCU first then move to checking wiring.WIll report back if I find anything.
Re: 18155 - transmission solenoid power relay
Also battery and alternator. Any power issues and they're worth looking at to rule out.
Re: 18155 - transmission solenoid power relay

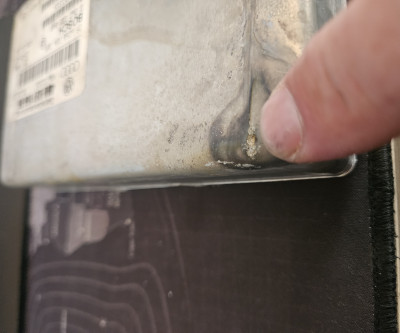

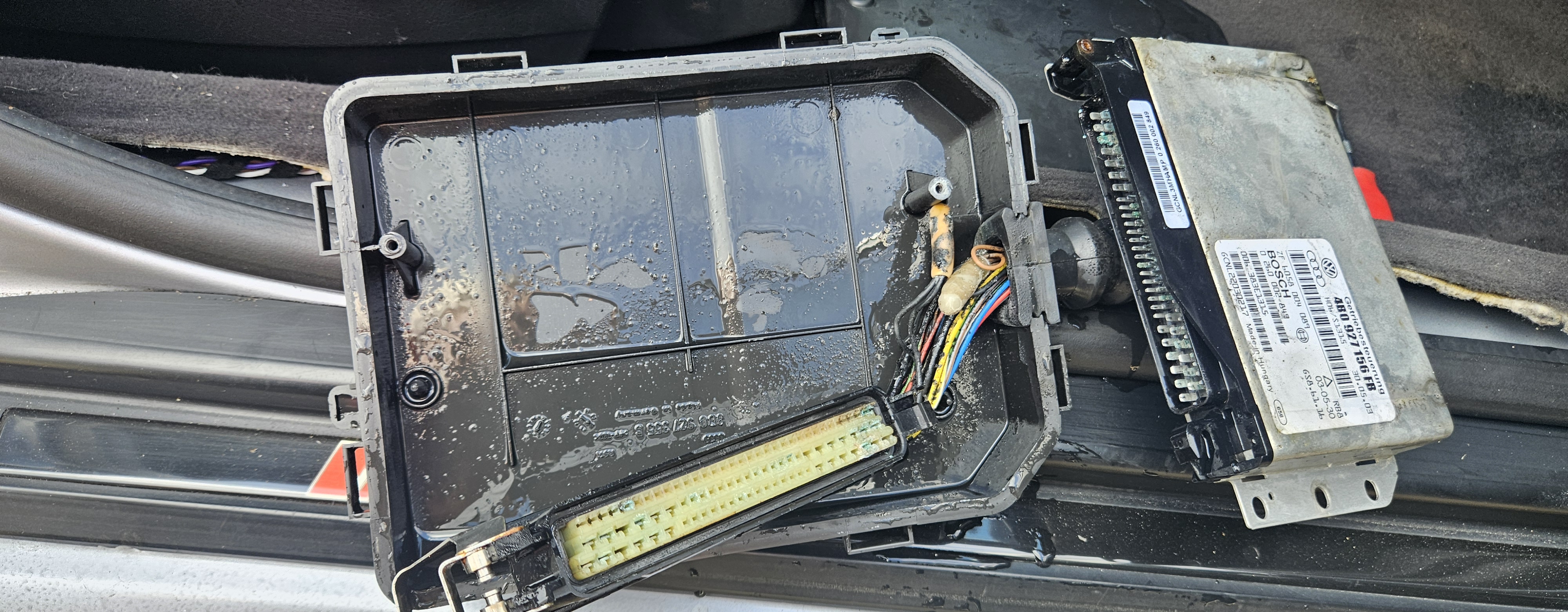

Wouldn't be surprised if you find water ingress to the TCU under the carpet. My money is on that or corrosion on the 16 pin connector.
Audi and their positioning of delicate electronics in the dumbest of places...
Audi and their positioning of delicate electronics in the dumbest of places...
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: 18155 - transmission solenoid power relay

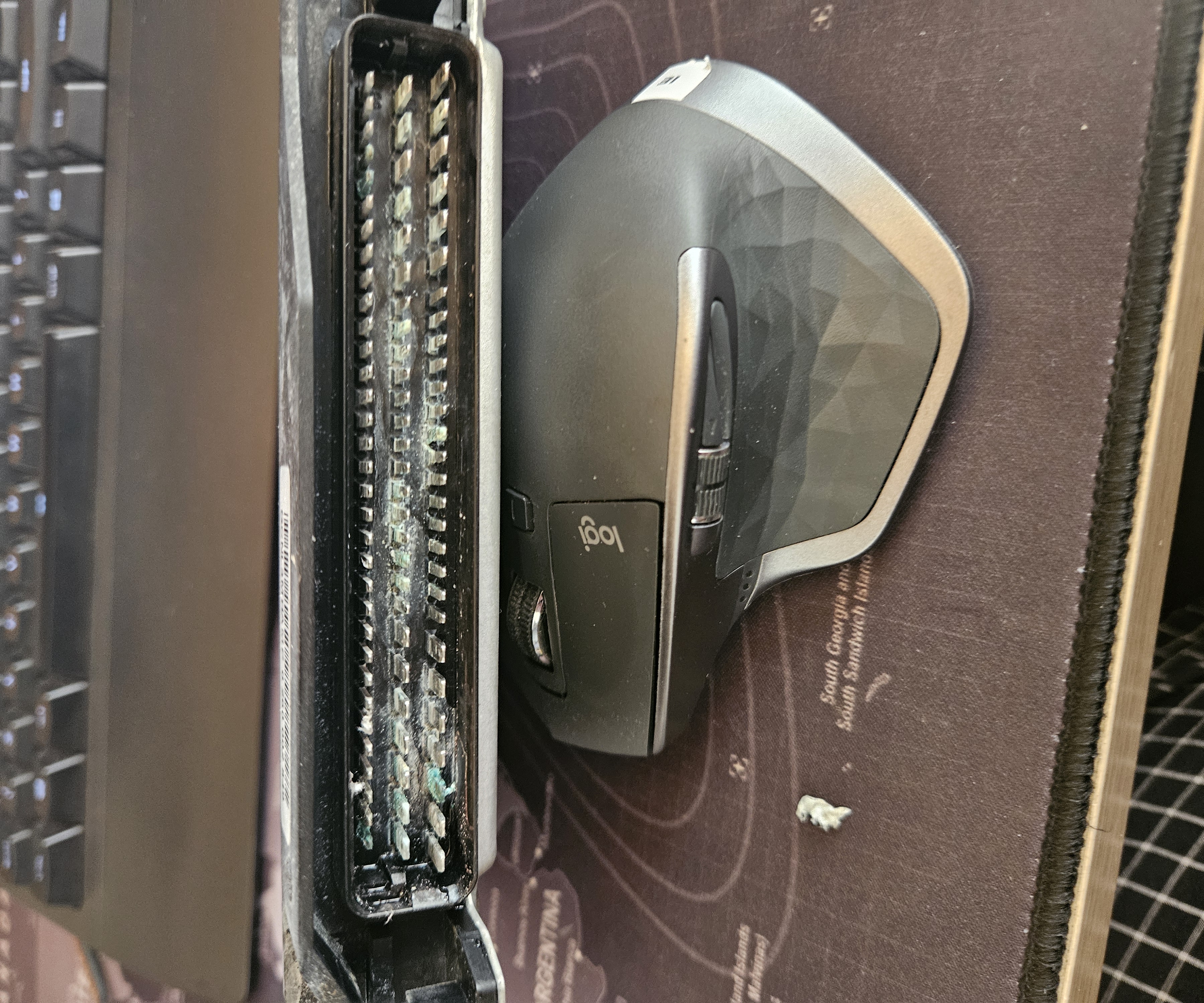

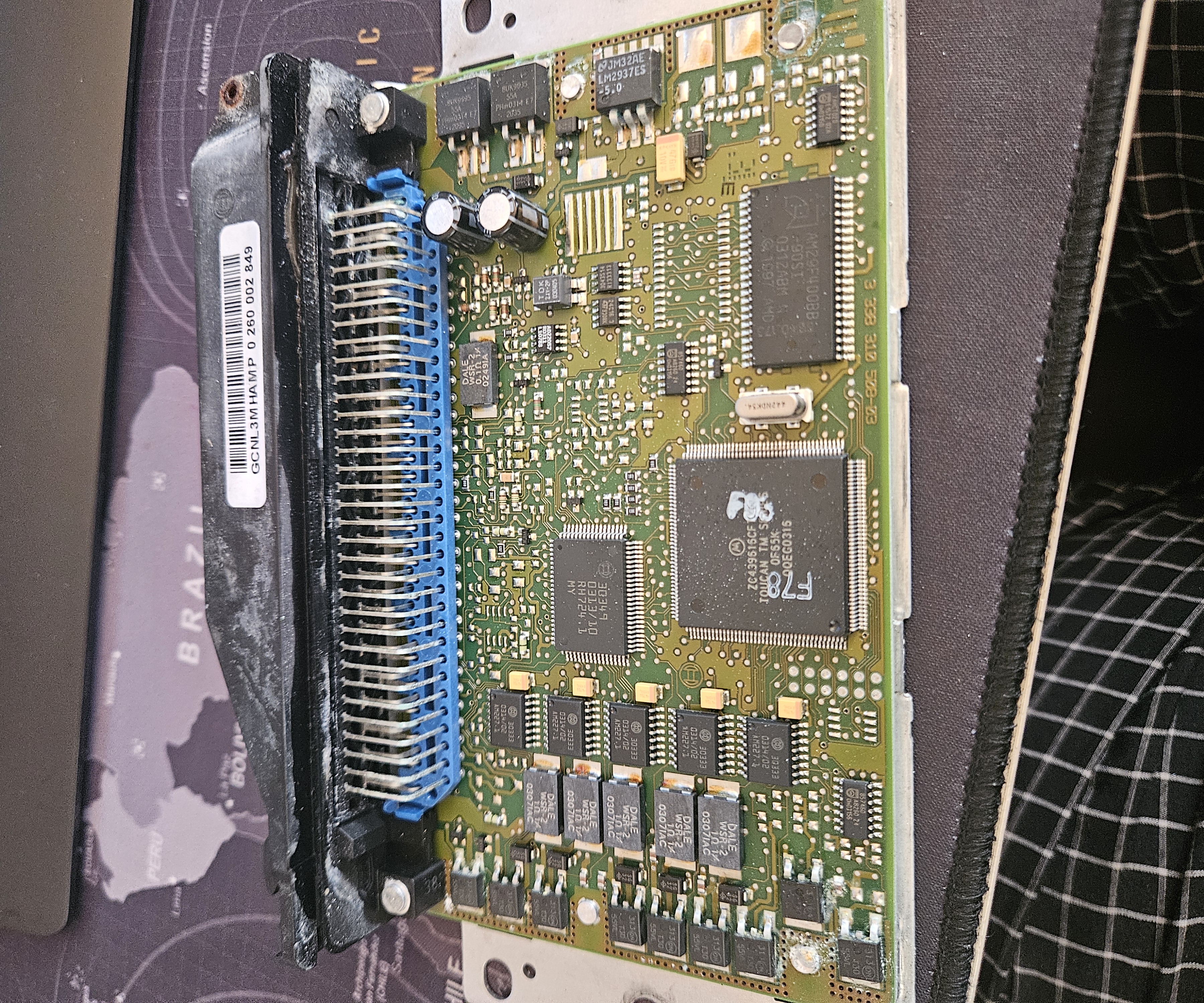

Inside of TCM is dry .just some green corrosion on connector pins but internals look fine
Re: 18155 - transmission solenoid power relay
What do I win?
If it were me, I would wash the lot with isopropanol to get the water out and let it dry thoroughly. And clean those contacts as well as possible with a tooth brush and isopropanol. Same for the mating connector.
Obvs the leak needs to be sorted.
If it were me, I would wash the lot with isopropanol to get the water out and let it dry thoroughly. And clean those contacts as well as possible with a tooth brush and isopropanol. Same for the mating connector.
Obvs the leak needs to be sorted.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: 18155 - transmission solenoid power relay

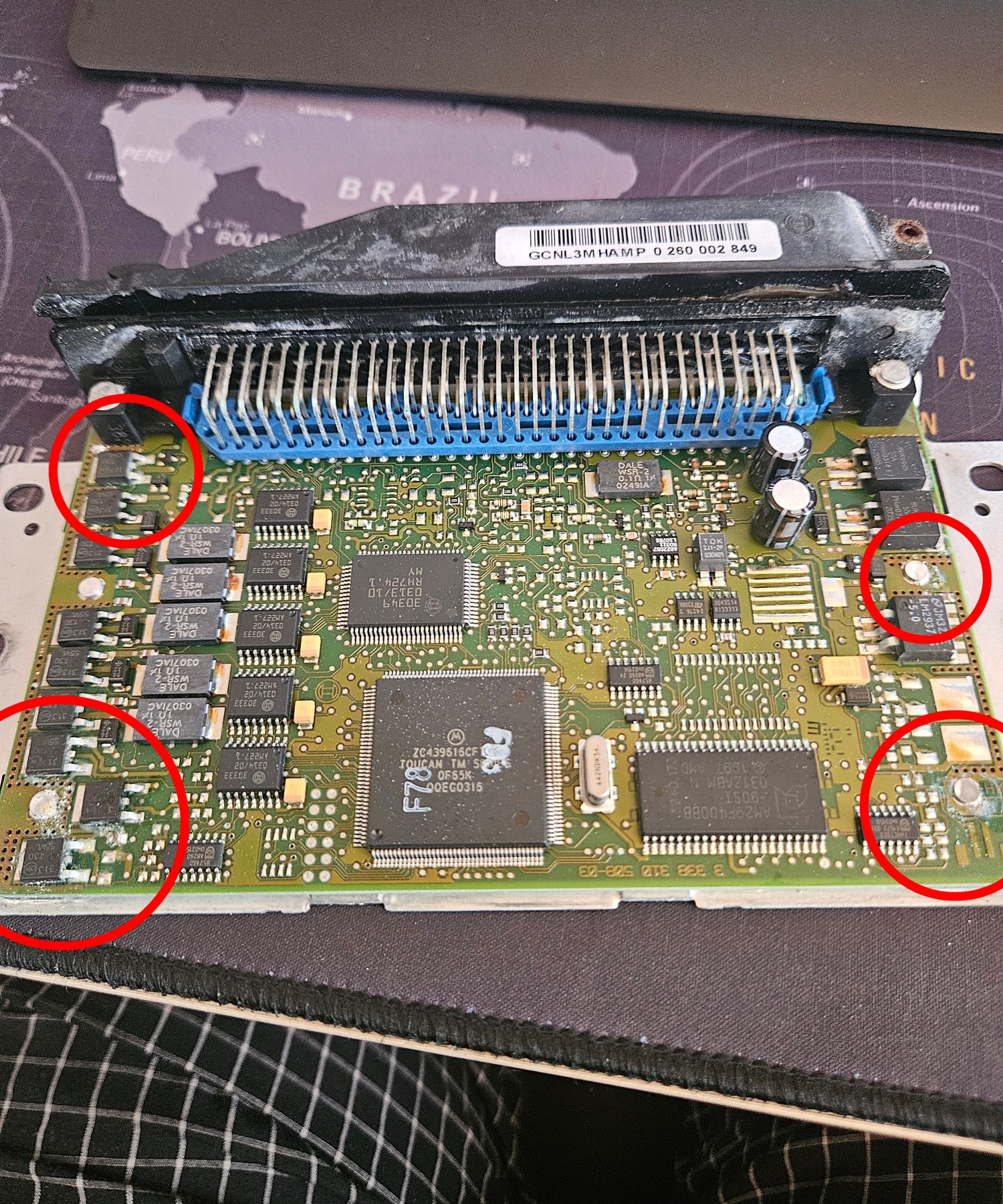

I'm seeing a lot of corrosion on the PCB. You *definitely * want to clean that off and hope that it hasn't weakened the solder joints.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: 18155 - transmission solenoid power relay
I'd be inclined to get it professionally cleaned and checked. You don't want it doing weird stuff with the gearbox.
Re: 18155 - transmission solenoid power relay
Yeah, I'd be feeling glad that I had a spare TCU at this point.
