pictures of turbos S4, RS4 and RS6

Discuss common aspects of Audi RS and S tuning and modifications
Post Reply
DamoM
2nd Gear
Posts: 149
Joined: Thu Feb 10, 2005 10:16 pm
Location: Woking

pictures of turbos S4, RS4 and RS6

Post by DamoM » Fri Oct 19, 2007 3:05 pm

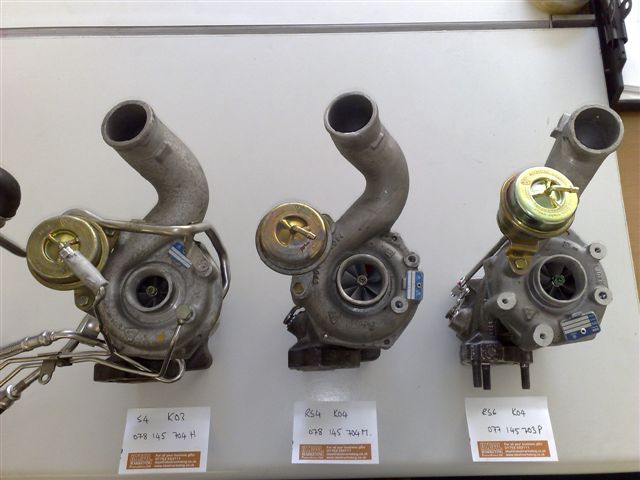

I am collecting too many turbos and doing jack sh!t with them! Thought I would take some pics side by side for comparison whilst I had them all together. From left to right, S4 (K03), RS4 (K04) and RS6 (K04).
Attachments
turbos comparison 1
1995 (M) Noggie RS2. MD357 turbo and remap. tba bhp.
2000 (X) Noggie RS4. Miltek Cat back. No cats. B7 discs/RS6 calipers. ally flywheel, DUH FMIC, ceramic coated tubular manilfolds, large intake pipes, RS6 turbos, 3" downpipea, large injectors etc MRC remap, 592bhp, 535lbft
1990 (Q) 20vURQuattro. Being fitted with RS4 motor & 6 speeder,porsche brakes.
Top
DamoM
2nd Gear
Posts: 149
Joined: Thu Feb 10, 2005 10:16 pm
Location: Woking

Post by DamoM » Fri Oct 19, 2007 3:06 pm

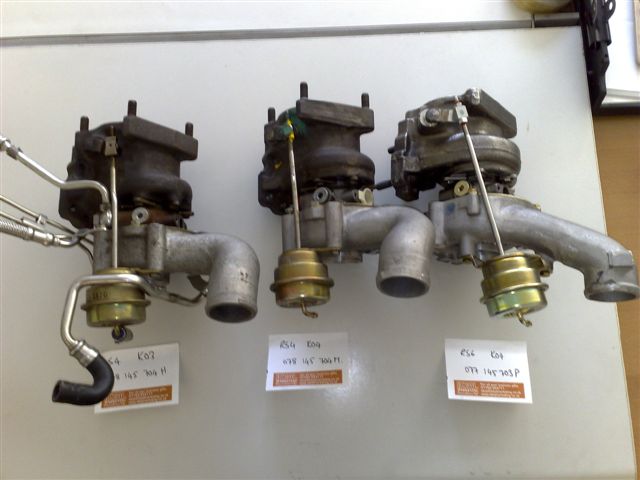

another:
Attachments
turbo2
1995 (M) Noggie RS2. MD357 turbo and remap. tba bhp.
2000 (X) Noggie RS4. Miltek Cat back. No cats. B7 discs/RS6 calipers. ally flywheel, DUH FMIC, ceramic coated tubular manilfolds, large intake pipes, RS6 turbos, 3" downpipea, large injectors etc MRC remap, 592bhp, 535lbft
1990 (Q) 20vURQuattro. Being fitted with RS4 motor & 6 speeder,porsche brakes.
Top
DamoM
2nd Gear
Posts: 149
Joined: Thu Feb 10, 2005 10:16 pm
Location: Woking

Post by DamoM » Fri Oct 19, 2007 3:07 pm

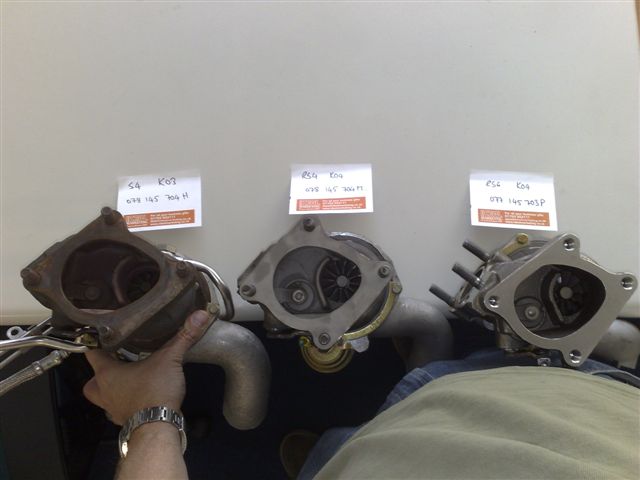

another:
Attachments
turbo3
1995 (M) Noggie RS2. MD357 turbo and remap. tba bhp.
2000 (X) Noggie RS4. Miltek Cat back. No cats. B7 discs/RS6 calipers. ally flywheel, DUH FMIC, ceramic coated tubular manilfolds, large intake pipes, RS6 turbos, 3" downpipea, large injectors etc MRC remap, 592bhp, 535lbft
1990 (Q) 20vURQuattro. Being fitted with RS4 motor & 6 speeder,porsche brakes.
Top
MarkB
Cruising
Posts: 5695
Joined: Thu Jun 30, 2005 11:52 am

RE: pictures of turbos S4, RS4 and RS6

Post by MarkB » Fri Oct 19, 2007 3:08 pm

The K03's look SO small! Not much in it externally between the RS4 and RS6 turbo's...
Mark
Top
DamoM
2nd Gear
Posts: 149
Joined: Thu Feb 10, 2005 10:16 pm
Location: Woking

Post by DamoM » Fri Oct 19, 2007 3:08 pm

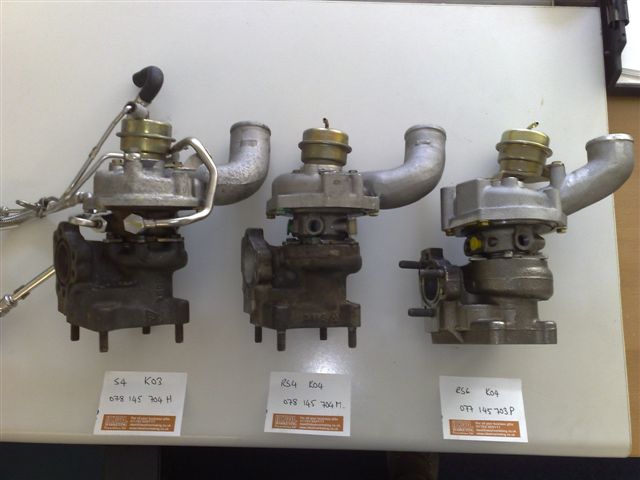

last one:
Attachments
turbo4
1995 (M) Noggie RS2. MD357 turbo and remap. tba bhp.
2000 (X) Noggie RS4. Miltek Cat back. No cats. B7 discs/RS6 calipers. ally flywheel, DUH FMIC, ceramic coated tubular manilfolds, large intake pipes, RS6 turbos, 3" downpipea, large injectors etc MRC remap, 592bhp, 535lbft
1990 (Q) 20vURQuattro. Being fitted with RS4 motor & 6 speeder,porsche brakes.
Top
Blue_Thunder
Top Gear
Posts: 1963
Joined: Wed Nov 22, 2006 10:54 pm
Location: UK - Liverpool

Post by Blue_Thunder » Fri Oct 19, 2007 5:28 pm

The hot side looks a lot beefier on the RS6.

What's attached to the K03? Is that the oil and water lines?
Top
DamoM
2nd Gear
Posts: 149
Joined: Thu Feb 10, 2005 10:16 pm
Location: Woking

Post by DamoM » Fri Oct 19, 2007 5:50 pm

Blue_Thunder wrote:The hot side looks a lot beefier on the RS6.

What's attached to the K03? Is that the oil and water lines?
Yes it does. Apart from that though, I was surprised at how little the difference was to the RS4 items.

Yep, I got the K03s as I needed all of the oil and water lines for the RS4 units (which I have just had refurbished) but it costs a fortune to buy them seperately!

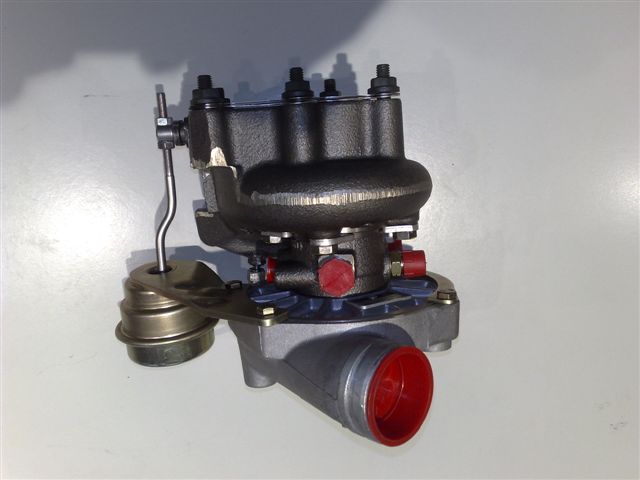

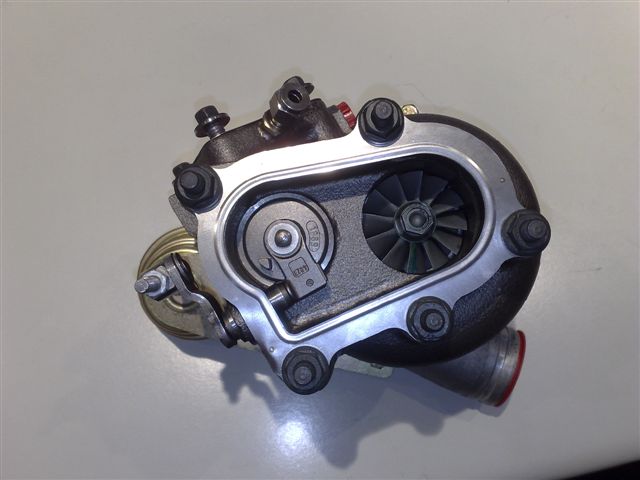

Have a look at this one. This is one of a pair of K16s that I have, brand new, that have some audi part numbers on them. They were apparently a development turbo for the RS6 but nobody can match up the numbers. Doug had them and sent them away but says that they couldn't be fitted to my RS4!! Not sure what to do with them now. More turbos in the Turbo Cupboard......
