Hi Guys, I'm following PhilT down the marriage route, and I have some kit lying around - Brand new in boxes that has to go.

This is for an Alpine F1 Status CDA7990:

F1 Status CD Tuner, Ice Cool Blue illum, Alpine utilized only the highest grade parts in crafting the CDA-7990, ensuring top-flight performance and superior quality throughout the entire system. Whats more, a digital optical output delivers all the pristine clarity of the original signal. The CDA-7990 features hand-selected K-Grade Sign-Magnitude 24-bit DACs and 24-bit digital filter to deliver extraordinarily detailed and precise sonic accuracy. High precision black-finish DP-ST mechanism virtually eliminates noise and data reading distortion, while the GIC-type low-pass filter provides smooth and natural sound with exceptional depth.

CD Player

1 Disc High Precision DT-ST Mechanism
96kHz/24 Bit Sign Magnitude DAC (Burr-Brown K-Grade)
CD Text, CD Text Display, CD Text Scroll
Digital Output (Optical)
Disc Play/Pause
Disc Title Memory
Elapsed Time Display
Forward/Backward
M.I.X. (Random Play)
Music Scan/Repeat
Music Sensor
T.S.M. (Title Search Menu)
T.S.M. Scroll (Title Search Menu Scroll)

Ai-Net

Ai-Talk Display
External Processor Preset Function Recall
Multi CD Shuttle Control


CD Shuttle Control

CD Text Display/Scroll
Direct Disc Selection
Disc Play/Pause
Disc Title Memory
Elapsed Time Display
Forward/Backward
M.I.X. One/All (Random Play One or All)
Music Scan
Music Sensor Up/Down
Repeat (One/All)



General-Head Units

Bass Center Frequency Control
Bass Width Adjustment
Subwoofer Level Control
Treble Center Frequency Control
3 PreOuts
4 V PreOut with Custom Outboard High-Power DC-DC Converter
Anti-Theft Detachable Front Panel
Audio Interrupt In
Bass Engine™
BioLite™ Display
Black Coated CD Mechanism & PC Board
Black Out Display
Custom Gold-Plated RCA Connectors
Custom Titanium-Insulated PCOCC RCA Cables
Dimmer-on Input
Dual Illumination Buttons (Blue/Green)
ISO Mount Capability
Optical Output
Power Antenna Lead
Remote-on Lead
S.T.A.R Circuitry
Steering Remote Controller Ready
Subwoofer Level Control
Versatile Link Ready


Channel Separation (1kHz) : 110.0 dB
DAC Type : 96kHz/24Bit Sign Magnitude (Burr-Brown K-Grade)
Dynamic Range (1kHz) : 100.0 dB
Frequency Response : 5-20k ±1 dB
Number of DACs : 3
Oversampling : 8X/352.8kHz
Sampling Rate : 44.1kHz
Signal-to-Noise (S/N) : 120.0 dB
Total Harmonic Distortion (THD) : 0.002%
Wow & Flutter (%WRMS) : B.M.L


Bass Center Frequency Selection : 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 130Hz, 150Hz, 200Hz
Bass Control Range at 60Hz : ±12 dB
Chassis Size (W x H x D)in : 7”x2”x6-1/8”
Chassis Size (W x H x D)mm : 178mm x 50mm x 155mm
Maximum Mounting Angle : 45° from Horizontal
Nose Piece Size (W x H x D)in : 6-3/4” x 1-13/16” x 15/16”
Nose Piece Size (W x H x D)mm : 170mm x 46mm x 23 mm
Operating Temperature (°C/°F) : 60°C (140°F) to -10°C (14°F)
Power Requirement : 14.4(11-16) V.DC
Pre Output Voltage (Before Clipping) : 9 Volts
Subwoofer Level Control Range : 0 To –15dB
Treble Center Frequency Selection : 10kHz, 12.5kHz, 15kHz, 17.5kHz
Treble Control Range at 10kHz : ±12 dB
Weight : 1.5kg (3lbs. 5 oz)


rrp is £2500
Seen it on the net for £1800
selling for £1500 ono

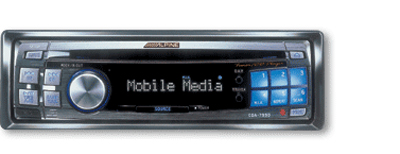

for pics click on the links

http://iweb.alpine-usa.com/img/asb/cda-7990.gif
http://www.alpine.com.au/product_images/CDA-7990R.gif
