Under dash panel terminals

Post by Blue_Thunder » Thu Apr 24, 2008 8:39 am

I'm planning on undertaking some rewiring on the weekend, and have only just realised what that coloured piece of card with numbers on which I threw out was. I randomly found it months ago and couldn't figure out where it had come from, so it just sat in my door card until I gave the interior a good clean. So now i'm stuck with a load of terminals, and no way of knowing which one is which.

Could someone please take a photo of the electrical terminals under the dash so I could figure out which one is which, or alternatively let me know which order they go in from left to right.

Infact if anyone could go one better and explain exactly when they are live, that would be even better. I've already tapped into one of the permanently live terminals and one that goes on with the ignition, but would be useful to know about the others.

:thumbs:
Top
MCB
Top Gear
Posts: 1670
Joined: Wed Apr 26, 2006 8:49 pm
Location: Manchester

RE: Under dash panel terminals

Post by MCB » Thu Apr 24, 2008 3:28 pm

Do you mean the ones on the bus bar just to the left of the fuse box?
S4B5 Avant
Top
Blue_Thunder
Top Gear
Posts: 1963
Joined: Wed Nov 22, 2006 10:54 pm
Location: UK - Liverpool

RE: Under dash panel terminals

Post by Blue_Thunder » Thu Apr 24, 2008 4:29 pm

Those are the ones. I think they have a little coloured strip above them with their terminal codes.
Top
MCB
Top Gear
Posts: 1670
Joined: Wed Apr 26, 2006 8:49 pm
Location: Manchester

Post by MCB » Thu Apr 24, 2008 5:12 pm

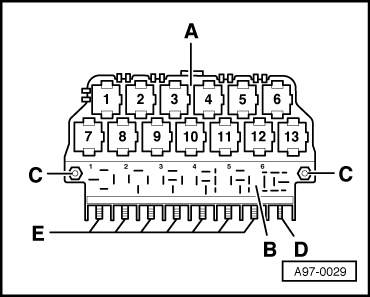

Not sure if these will help you note: AW LH Drive, drop me a PM as I have a few wiring diagrams in PDF format I can email you.
Attachments
Relay carrier.png
S4B5 Avant
Top
Stigter
4th Gear
Posts: 645
Joined: Sat Jun 02, 2007 1:49 am

Post by Stigter » Thu Apr 24, 2008 5:17 pm

http://www.rvanderhoff.org.uk/gallery/d ... G_0541.JPG

hope this helps.
Top
Blue_Thunder
Top Gear
Posts: 1963
Joined: Wed Nov 22, 2006 10:54 pm
Location: UK - Liverpool

Post by Blue_Thunder » Thu Apr 24, 2008 5:27 pm


It's the numbers on that yellow-red-pink-pink sticker that i'm after, but with my old man eyes, I can't quite make out what it reads.
Top
bobbler
3rd Gear
Posts: 454
Joined: Tue Feb 27, 2007 5:45 pm
Location: Bath, UK

Post by bobbler » Thu Apr 24, 2008 5:49 pm

From the left -
Yellow = 75X = Switched Live
All the red ones are the same = 30 = Permanent live
. S4 Nogaro Blue Avant . ECS IV . RS4 handling bits . 18" Ultraleggera . AWE Boost Gauge . MRC Custom Map . 315 BHP . 482 Nm .
Top
Blue_Thunder
Top Gear
Posts: 1963
Joined: Wed Nov 22, 2006 10:54 pm
Location: UK - Liverpool

Post by Blue_Thunder » Thu Apr 24, 2008 6:26 pm

Excellent, thanks!

What the hell are those big boxy things for?
Top
MCB
Top Gear
Posts: 1670
Joined: Wed Apr 26, 2006 8:49 pm
Location: Manchester

Post by MCB » Thu Apr 24, 2008 6:28 pm

Relays
S4B5 Avant
Top
User avatar
dubwhizz
2nd Gear
Posts: 139
Joined: Sat Apr 05, 2008 11:25 pm

Post by dubwhizz » Fri Apr 25, 2008 9:02 am

Blue_Thunder wrote:Excellent, thanks!

What the hell are those big boxy things for?
dont take this the wrong way, but if you don't know that, should you really be undertaking a rewiring project?

Matt
Top
Blue_Thunder
Top Gear
Posts: 1963
Joined: Wed Nov 22, 2006 10:54 pm
Location: UK - Liverpool

Post by Blue_Thunder » Fri Apr 25, 2008 11:10 am

bytejunkie wrote:
Blue_Thunder wrote:Excellent, thanks!

What the hell are those big boxy things for?
dont take this the wrong way, but if you don't know that, should you really be undertaking a rewiring project?

Matt
Don't worry Matt, i'll wear wellies and I live close to the local fire station :lol:

Perhaps i've exaggerated my 'project'. It's only some very minor wiring the likes of which i've done before. I've also got Elsa, so I just wanted to make sure I was tapping in to the same terminal as it would have been from the factory.
Top
bryn_p
Neutral
Posts: 8
Joined: Sat Jul 21, 2007 6:05 pm
Contact:
Contact bryn_p

Post by bryn_p » Fri Apr 25, 2008 11:40 pm

bytejunkie wrote:
Blue_Thunder wrote:Excellent, thanks!

What the hell are those big boxy things for?
dont take this the wrong way, but if you don't know that, should you really be undertaking a rewiring project?

Matt
Yeah don't worry Matt, believe it or not he's actually quite clever in real life! Plus I'll be standing by with the fire extinguisher :lol:

Cheers,
Bryn.
Top
Stigter
4th Gear
Posts: 645
Joined: Sat Jun 02, 2007 1:49 am

Post by Stigter » Fri Apr 25, 2008 11:44 pm

Can I bring the bbq food?
Top
Blue_Thunder
Top Gear
Posts: 1963
Joined: Wed Nov 22, 2006 10:54 pm
Location: UK - Liverpool

Post by Blue_Thunder » Sat Apr 26, 2008 11:26 am

Marshmallows and beer please.
Top
User avatar
grizz
Cruising
Posts: 4074
Joined: Sun May 30, 2004 9:40 pm
Location: Unit 20 0151 33 66 888

Post by grizz » Sat Apr 26, 2008 3:48 pm

Don't i get an invite to the bbq .
Unit 20
0151 3366888
The northwest's only dedicated 'RS' repair centre.
