Cable loom identification

Post by pwack » Mon Oct 02, 2023 6:54 pm

Hello Gents

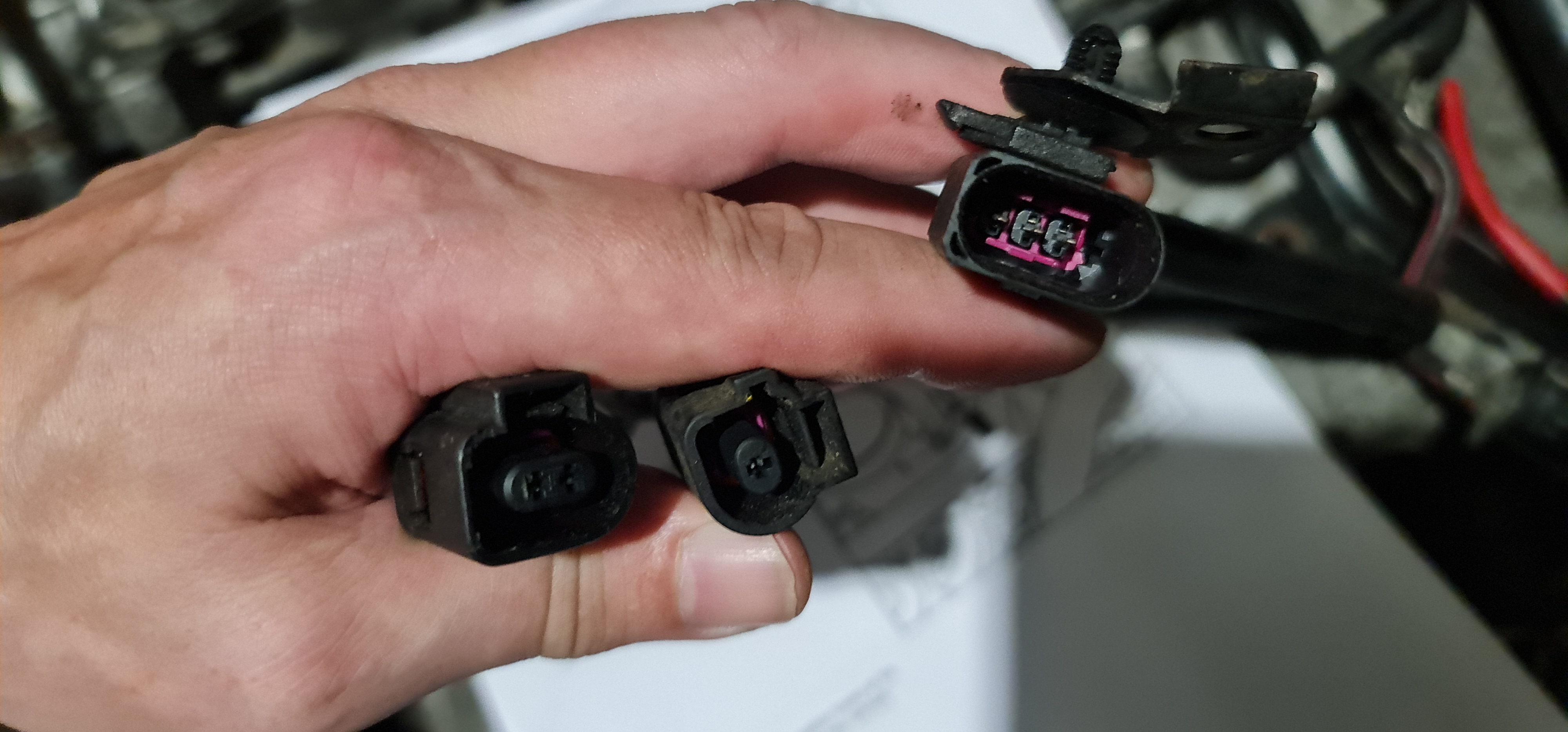

Can anyone assist in identifying a cable loom , I did mark it up when I removed it when strippng the engine down but the label has come off and cant remeber for the life of me where it goes , have alook at the pics , theres a 3pin plug on one end then on the other end theres a single connector plug and a double connector plug.On the single plug end theres a plate to bolt it somewhere.
Any help would be apreciated.

Thanks

pwack
1st Gear
Posts: 57
Joined: Wed Mar 29, 2023 9:18 am

Re: Cable loom identification

Post by pwack » Mon Dec 11, 2023 4:48 pm

Hello , Just a follow up as I have now identified the loom , its the Oil Pressure switch and Alternator plug, this plugs into a plug that should be located on the top of the engine by cylinder 1 coil pack , front cylinder on left hand bank as you look at the front of the car.

The metal bracket on the little sub loom secures to cylinder 1 coil pack bolt nearest the front of the engine.

Mɐʇʇ
Cruising
Posts: 2724
Joined: Tue Oct 07, 2014 8:30 pm

Re: Cable loom identification

Post by Mɐʇʇ » Mon Dec 11, 2023 7:24 pm

FWIW, I struggled to remember that one too, when I had my car apart.
"not a professional engineer, mechanic and mechanist"
