fitting wide screen sat nav 4B0 035 192P

Post by **rs6-sammy** » Fri Jul 20, 2012 4:29 pm

As you can see ive tried to connect the canbus H/L from the 26 pin video plug not used in the new RNS-E but has failed to work i think this is because its not true CAN ??

Post by **rs6-sammy** » Fri Jul 20, 2012 4:32 pm

Can i find true CAN down here somewhere ??

Post by **Stoo.** » Fri Jul 20, 2012 5:58 pm

What do you mean, true can?

Post by **rs6-sammy** » Sat Jul 21, 2012 12:04 am

Someone else said on this or another forum its got to be a true can connection not 100% sure myself

Post by **RS6_TOY** » Tue Jul 24, 2012 11:25 pm

Hay you sorted it yet mate ? Doing mine Sunday been reading a lot of the posts do hoping all gose well !!

Post by **rs6-sammy** » Thu Jul 26, 2012 12:39 pm

I still havent got it sorted inside been in bits for a week now

waiting for a guy to come and vag-com it hopefully that will work

Post by **RS6_TOY** » Thu Jul 26, 2012 1:32 pm

Have a read of this see how you go ?
http://audisrs.com/archive/uk-rs6-upgra ... 32184.html

Post by **RS6_TOY** » Thu Jul 26, 2012 1:44 pm

I got my addapter from eBay, I'm confused as to we're the can wires go in the addaper loom were are they on yours, the web page I found pin 5 black/white is high can and pin 6 Black yellow low can on the back of the cluster. I'm not to sure that link will work as I sent it off my phone. P.m your number if you like and I'll send you what I've found or I'll be ringing for help on Sunday lol

Post by **rs6-sammy** » Thu Jul 26, 2012 4:08 pm

Yeah the link diddent work , yeah i think the can wires are orange the orange/brown stripe is always can low and the other is orange/pulple stripe can hi all ive done is tapped into these 2 wires from the grey connector behind the speedo cluster and run a wire from each one and tapped into the wires on the back of the RNS-E unit going to pins can h and can l, theres a diagrame on the top of the unit to tell you what wires to connect to not sure to put things back together yet or leave it till i got it sorted

Post by **rs6-sammy** » Thu Jul 26, 2012 4:12 pm

rs6-sammy wrote:once I tap into the blue and white wire behind the Speedo and run a cable where does this wire go on the adapter plug, does it go to can h or can l as im not clear about this atm and don’t want to damage anything or blow it up

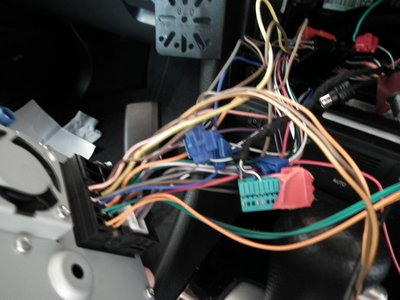

have added some pics of the blue and white wire im tapping into and a picture of the top of the new RNS-E sat nav unit with the wirering diagram

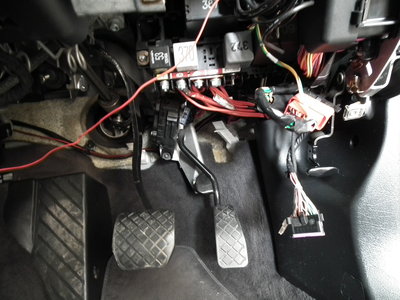

pics of wat ive done so far

Post by **rs6-sammy** » Thu Jul 26, 2012 4:13 pm

you can look back on page 1 for the pics of what ive done so far

Post by **Stoo.** » Thu Jul 26, 2012 7:22 pm

I've already told you what colour the can wires are.

Post by **chunky79** » Fri Jul 27, 2012 7:08 am

Stoo listen don't people some

Post by **Shoppinit** » Fri Jul 27, 2012 8:39 am

I feel like I've wandered into the wrong forum.

Post by **Stoo.** » Fri Jul 27, 2012 3:06 pm

chunky79 wrote:Stoo listen don't people some

It would appear so.
