B9 RS4 Paddles swap from 2018 to 2020
video to demonstrate the locking mechanism https://www.youtube.com/watch?v=SDxakf1o87E
Set the steering wheel as shown in step 1 then disconnect the battery before trying to remove the air bag
Paddle swap
Paddle swap
- Attachments
-

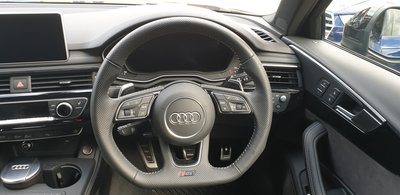

- Step 1 position the steering wheel as shown to access the locking mechanism hole there are 2 positioned at about 4 and 7 o clock release 1 side the turn the steering wheel to access the other to fully release the air bag
-

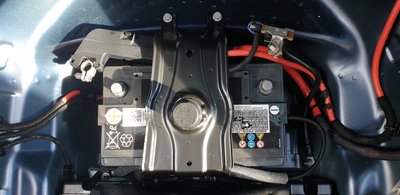

- Step 2 disconnect the battery
-

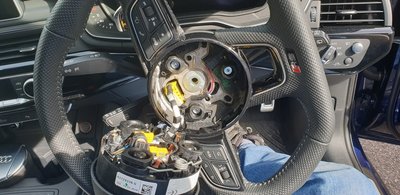

- Step 3 remove the air bag using the access holes to release the bag
these are at 4 and 7 o clock on the steering wheel
pull the steering wheel fully out and down to access the locking mechanism
(this was a pain see the video to demonstrate the release of the mechanism
https://www.youtube.com/watch?v=SDxakf1o87E I know its Norwegian but it shows the lock and how to release it this was a pain but persevere you’ll get there
-

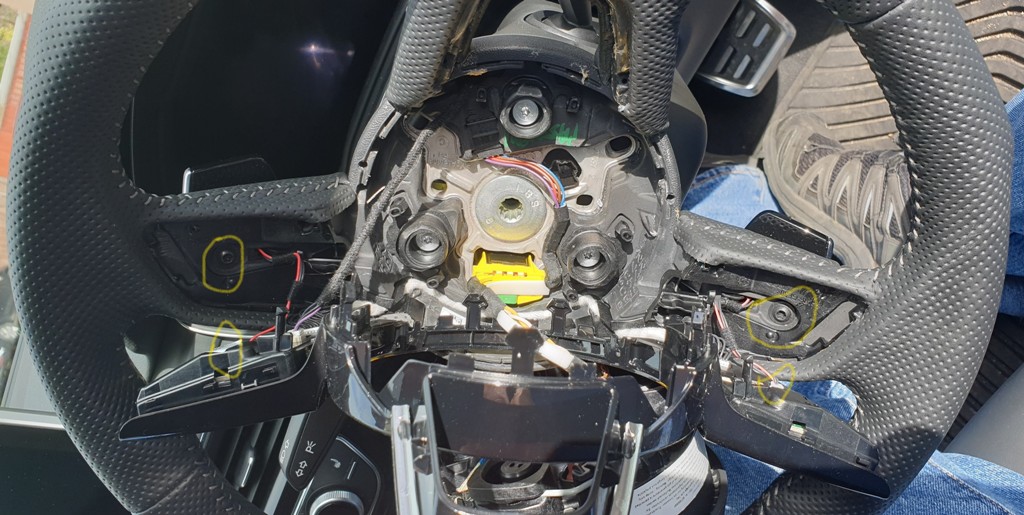

- Step 4 Remove the trim on the steering wheel to access the paddle screws and the connectors
-

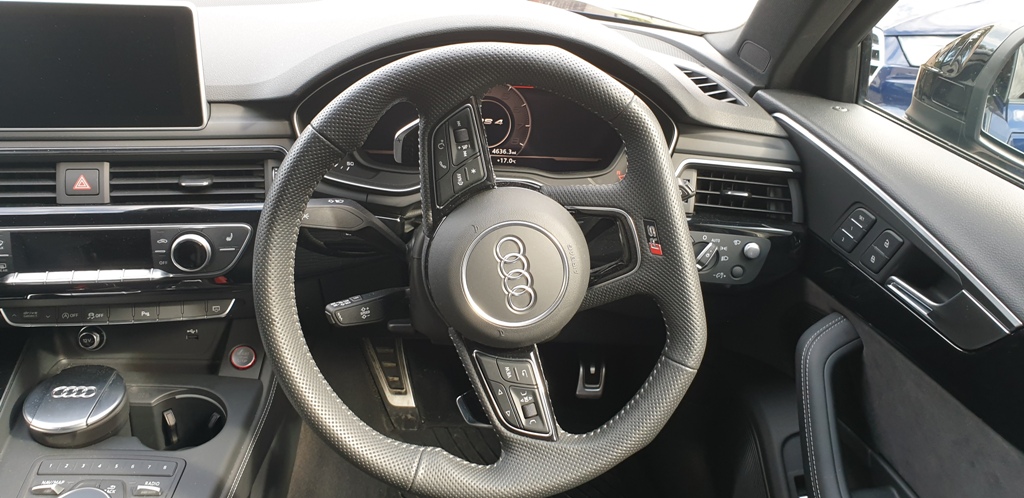

- Old paddles
-

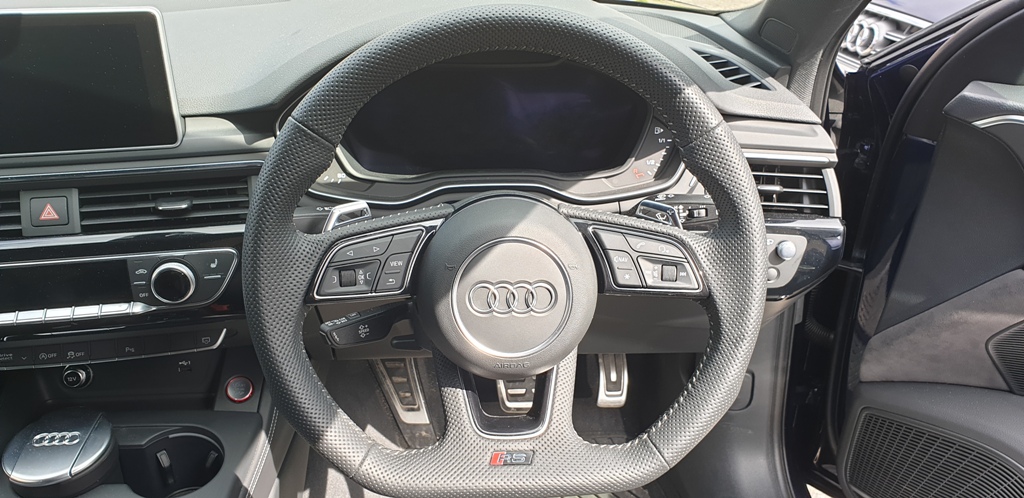

- New paddles Then un clip the connectors the just pop out and unscrew the paddle and replace with the new set
Re fit the trim and air bag and reconnect the battery and you’re done
