Home made air vent gauge

Post by Jez » Sun Jan 15, 2006 2:37 pm

Hi all,

I thought I'd share with you my my latest creation :)

Not wanting to spend £180 odd on a dash vent boost gauge from AMD and the like I decided to make my own. I took inspiration from a post on audiworld.

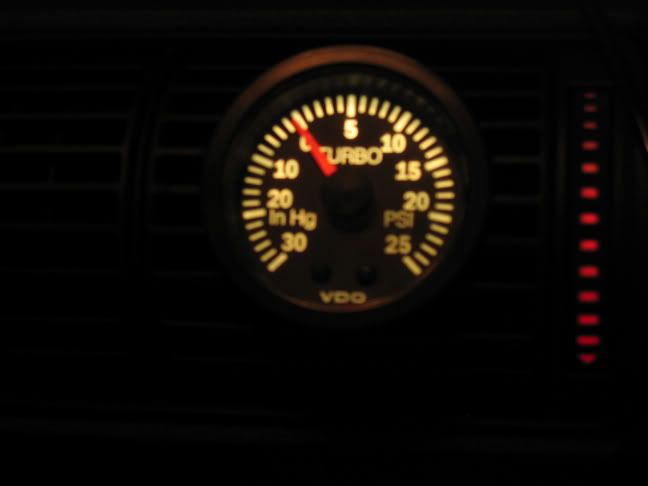

A pic of the VDO gauge with the clear bulb supplied

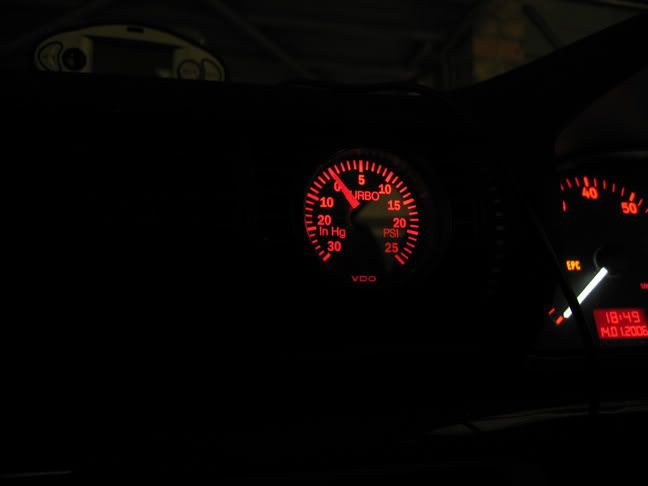

and after I painted the bulb red with some glass paint


Not a bad match if I do say so myself :D

A few more just for fun...



Any comments welcome :)

Jez
Top
User avatar
CliveH
Cruising
Posts: 4754
Joined: Sat Oct 02, 2004 12:07 pm
Location: Yorkshire, UK

RE: Home made air vent gauge

Post by CliveH » Sun Jan 15, 2006 2:59 pm

I think it's an excellent match - nice work!

But presumably you still needed a pod for the vent (or did you modify that yourself too?) and some hose to connect into the airlines?
Clive

S2 ABY coupe, S4 B5 saloon, S4 B6 avant
RS4 B7 phantom black saloon, mint, fully loaded, low mileage - FOR SALE!- http://www.rs246.com/index.php?name=PNp ... ic&t=88981
S8 D2 facelift, RS6 C5 saloon, both gone but not forgotten
Top
Jez
2nd Gear
Posts: 178
Joined: Sun Jul 03, 2005 7:40 pm
Location: Swindon, Wiltshire

RE: Home made air vent gauge

Post by Jez » Sun Jan 15, 2006 5:52 pm

I modifed the vent to get the gauge to fit. My cutting skills weren't as good as I imagined, so I might get another vent and have a second go. I cut the upper most vein of the vent too much, so there's a slight gap between the gauge and vent. Not too noticable, but I know it's there.

I bought a mk4 golf steering column mounted gauge kit from Awesome and the supplied cables, connectors and hoses were all that was required to fit to the S4. I'll flog the pod onto a mate ;)
Top
User avatar
mikeyquattro
Top Gear
Posts: 2191
Joined: Wed Mar 16, 2005 11:04 pm
Location: Witshire

RE: Home made air vent gauge

Post by mikeyquattro » Sun Jan 15, 2006 6:36 pm

Nice job.
I'm tempted to have a go myself!
Might put it in the middle vent though. What do you think?
Tomorrow is another day
Top
User avatar
CliveH
Cruising
Posts: 4754
Joined: Sat Oct 02, 2004 12:07 pm
Location: Yorkshire, UK

RE: Home made air vent gauge

Post by CliveH » Sun Jan 15, 2006 7:05 pm

How much did the DIY job cost?
Clive

S2 ABY coupe, S4 B5 saloon, S4 B6 avant
RS4 B7 phantom black saloon, mint, fully loaded, low mileage - FOR SALE!- http://www.rs246.com/index.php?name=PNp ... ic&t=88981
S8 D2 facelift, RS6 C5 saloon, both gone but not forgotten
Top
Jez
2nd Gear
Posts: 178
Joined: Sun Jul 03, 2005 7:40 pm
Location: Swindon, Wiltshire

RE: Home made air vent gauge

Post by Jez » Sun Jan 15, 2006 7:23 pm

£60 for the gauge inc fitting kit and £3.40 for some red glass paint.

I couldn't find any red bulbs with the correct fitment, so had to resort to painting it instead.
Top
User avatar
dazzer
5th Gear
Posts: 1191
Joined: Fri Dec 10, 2004 12:06 am

Post by dazzer » Sun Jan 15, 2006 7:25 pm

Tidy job.
Top
User avatar
dazzer
5th Gear
Posts: 1191
Joined: Fri Dec 10, 2004 12:06 am

Post by dazzer » Sun Jan 15, 2006 7:26 pm

Tidy job.
Top
User avatar
CliveH
Cruising
Posts: 4754
Joined: Sat Oct 02, 2004 12:07 pm
Location: Yorkshire, UK

Post by CliveH » Sun Jan 15, 2006 7:46 pm

This might be a daft question, but you actually painted the glass??
Clive

S2 ABY coupe, S4 B5 saloon, S4 B6 avant
RS4 B7 phantom black saloon, mint, fully loaded, low mileage - FOR SALE!- http://www.rs246.com/index.php?name=PNp ... ic&t=88981
S8 D2 facelift, RS6 C5 saloon, both gone but not forgotten
Top
User avatar
Nige_RS4
Cruising
Posts: 3264
Joined: Tue Feb 25, 2003 2:54 pm
Location: UK
Contact:
Contact Nige_RS4

Post by Nige_RS4 » Sun Jan 15, 2006 8:13 pm

This might be a daft question, but you actually painted the glass??
The backlight bulb!!!
Top
User avatar
CliveH
Cruising
Posts: 4754
Joined: Sat Oct 02, 2004 12:07 pm
Location: Yorkshire, UK

Post by CliveH » Sun Jan 15, 2006 8:15 pm

derrr! :bash: OK, now I'm with it. Thanks Nige!
Clive

S2 ABY coupe, S4 B5 saloon, S4 B6 avant
RS4 B7 phantom black saloon, mint, fully loaded, low mileage - FOR SALE!- http://www.rs246.com/index.php?name=PNp ... ic&t=88981
S8 D2 facelift, RS6 C5 saloon, both gone but not forgotten
Top
User avatar
CliveH
Cruising
Posts: 4754
Joined: Sat Oct 02, 2004 12:07 pm
Location: Yorkshire, UK

Post by CliveH » Sun Jan 15, 2006 8:16 pm

So how difficult was it to plumb the air hoses through the dash and connect up to the airlines Jez?
Clive

S2 ABY coupe, S4 B5 saloon, S4 B6 avant
RS4 B7 phantom black saloon, mint, fully loaded, low mileage - FOR SALE!- http://www.rs246.com/index.php?name=PNp ... ic&t=88981
S8 D2 facelift, RS6 C5 saloon, both gone but not forgotten
Top
User avatar
Nige_RS4
Cruising
Posts: 3264
Joined: Tue Feb 25, 2003 2:54 pm
Location: UK
Contact:
Contact Nige_RS4

Post by Nige_RS4 » Sun Jan 15, 2006 8:56 pm

Shame the needle wasn't in white - looks a great colour match otherwise.
Top
User avatar
shineydave
Cruising
Posts: 2561
Joined: Sun Oct 16, 2005 10:22 am
Location: Bradford, Yorkshire, UK
Contact:
Contact shineydave

Post by shineydave » Sun Jan 15, 2006 9:26 pm

lol, i painted some LEDs for the Quattro door and dash switches with the wifes nail varnish, much cheaper than buying new switches since Audi don't sell the LEDs seperately
Dave

"if that's the Turbo Fairy knocking tell her i'm not in"

http://www.ukchat.com/home/setnick.asp?room=RS2346
Top
User avatar
springfield
2nd Gear
Posts: 223
Joined: Mon Jun 13, 2005 7:32 pm
Location: Cumbria.

Post by springfield » Sun Jan 15, 2006 9:35 pm

Bought some dashboard lights for my old 80 QUATTRO 2.6 cost a fortune as they were red.....same as the VW bulb at a fraction only they were red.
Jim :bash:
Imola Avant,Carbon,Bose,MRC Re Map,Hyperboost DV.s.
BMW E30 318iS.
Top
