TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Wed Dec 06, 2017 12:04 pm

TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Introducing our TTE625 performance turbocharger based on the original 8S turbocharger to new higher output specification. Offering an upgrade to over 600PS.

Engineered & Enhanced

At the core of our TTE625 is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimised tolerance to ensure maximum compressor efficiency is given.

We CNC mill the exhaust turbine housing to accept a larger turbine and shaft.

Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is sprung OE unit


Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.



Product Highlights:


• Up to 650HP / over 700Nm

• Original BWTS turbocharger as base part

• Very early response

• Billet Milled TTE compressor

• Reinforced BWTS TTE actuator

• High Flow Turbine

• O-ring sealing

• Reinforced axial and radial bearing

• Proven TheTurboEngineers quality

• Made in Germany

New price 4,200.84 Euro net
To recondition and upgrade a supplied used turbocharger price is 2100.00 Euro net

(For customers in EU countries 19%+ VAT Must be added to prices above unless having a valid VAT ID)

Shipping does vary but 45.00 euro is a good guide for Europe-wide.

Turbocharger requires specific components for fitting: Downpipe, Boost pipe, Intake pipe, Oil & Water lines

For Left-hand drive cars : Fitting kits & complete turnkey solutions available at Sar- Turbotechnik

For Right-hand drive cars : Fitting kits and complete turnkey solutions available at CM Tuning


Deutsch info :https://docs.wixstatic.com/ugd/1d7378_5 ... 3377e7.pdf

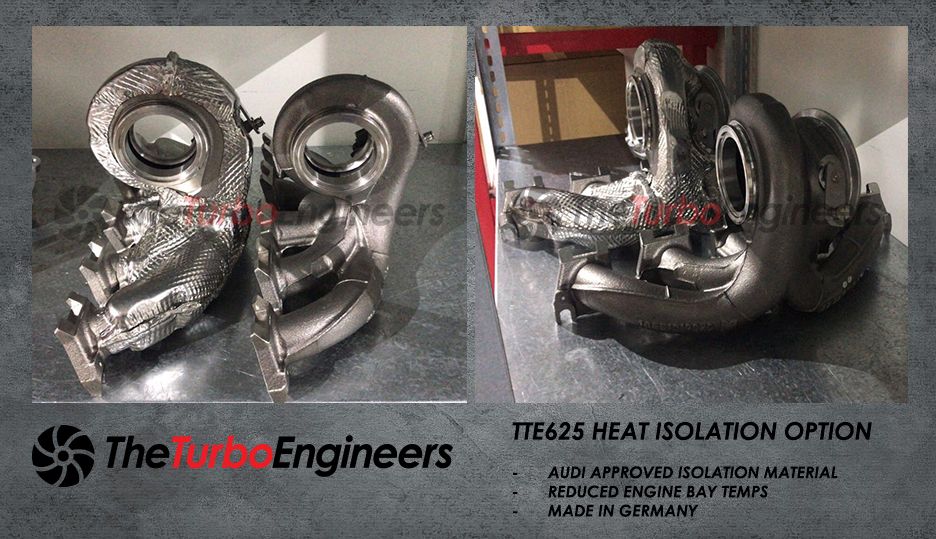

New TTE625 2.5TFSI heat isolation option now available
251.26 EURO NET Extra cost when TTE625 new ordered


hardware needed for fitment of a TTE625 to the older gen RS3 8P & 8V.1 and TTRS 8J vehicles

Bellow is a kit available only from Sar- Turbotechnik

Last edited by TTE Si on Fri May 04, 2018 9:37 am, edited 3 times in total.
Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 07, 2017 11:56 am

RS3 8V TTE625 MTR 626PS 727NM (pump 102ron / stock engine)

Last edited by TTE Si on Thu Dec 07, 2017 1:15 pm, edited 1 time in total.
Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 07, 2017 12:10 pm

Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 07, 2017 12:35 pm

RS3 8P TTE625 629PS 774Nm EWG


Here is a comparison by MTR of a TTE500 car Vs Sören's RS3 8P TTE625. As you see perfect response not laggy like others big turbo solutions.


Extra Special thanks to MTR Performance for custom mapping of the motor and dsg gearbox.
Arlows for many parts. Wagner Tuning for there super EVO3 intercooler. Tij-Power for technical help and parts.

Full Spec :
TTE625 upgrade turbocharger (plug & play)
Forged MAHLE Pistons 83.00 (stock CR)
IE Forged rods
IE valve springs
Upgrade HPFP pump
MTR performance water thermostat DSG:
Series clutch
Wagner evo3 Intercooler
89mm intake TTE
89mm exhaust
Bill stone threaded chassis Webasto parking heater Evo5 +
LEYO upgrade SUV
TTE Prototype intake
TTE prototype pressure pipe
ICE install
102Ron Aral pump fuel
1.95 to 1.82 bar boost

Car is running a consistent 6.1- 6.2 100-200kmh Pbox screen times !

#TTE625 #2.5TFSI #RS38P #MTR #WAGNER #ARLOWS #TIJPOWER #WORLDS #STRONGEST #HYBRIDS #TTEPOWER

Here is a comparison by MTR of a TTE500 car Vs Sören's RS3 8P TTE625. As you see perfect response not laggy like some other big turbo solutions.




100-200kmh timed our RS3 8P TTE625 MTR project
6.01 seconds corrected.
(over weight car)

Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 07, 2017 12:43 pm

RS3 8V
TTE625, hpfp, front mount and CM Tuning turbo fitting kit, supplied and fitted by Chris at CM Tuning.
MRC Stage3 Remap and MRC Stronic Remap this does 589ps 749nm at 1.9 to 1.8Bar on 99ron fuel (Stock cat back exhaust)

Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 07, 2017 1:00 pm

RS3 8V STOCK MOTOR

- TTE625 TURBOCHARGER
- 90 mm inlet from turbo to airbox
- down pipe 2 x 70 mm on original kats
- 200 cells hjs euro kats
- MTR SOFTWARE

618PS and 700 NM EWG Flat of 3900-6100 RPM

Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 07, 2017 1:12 pm

Audi rs3 8P 600 HP / 760 NM 98Ron fuel

Car was completely built by the customer.

- TTE625 Turbo
- Mahle power pak
- integrated rods
- arp head bolts
- exhaust system 3,5 inch with 200 cells kats
- intake 3,5 inch to airbox
- clubsport intercooler
- software by MTR



Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Thu Dec 14, 2017 2:37 pm

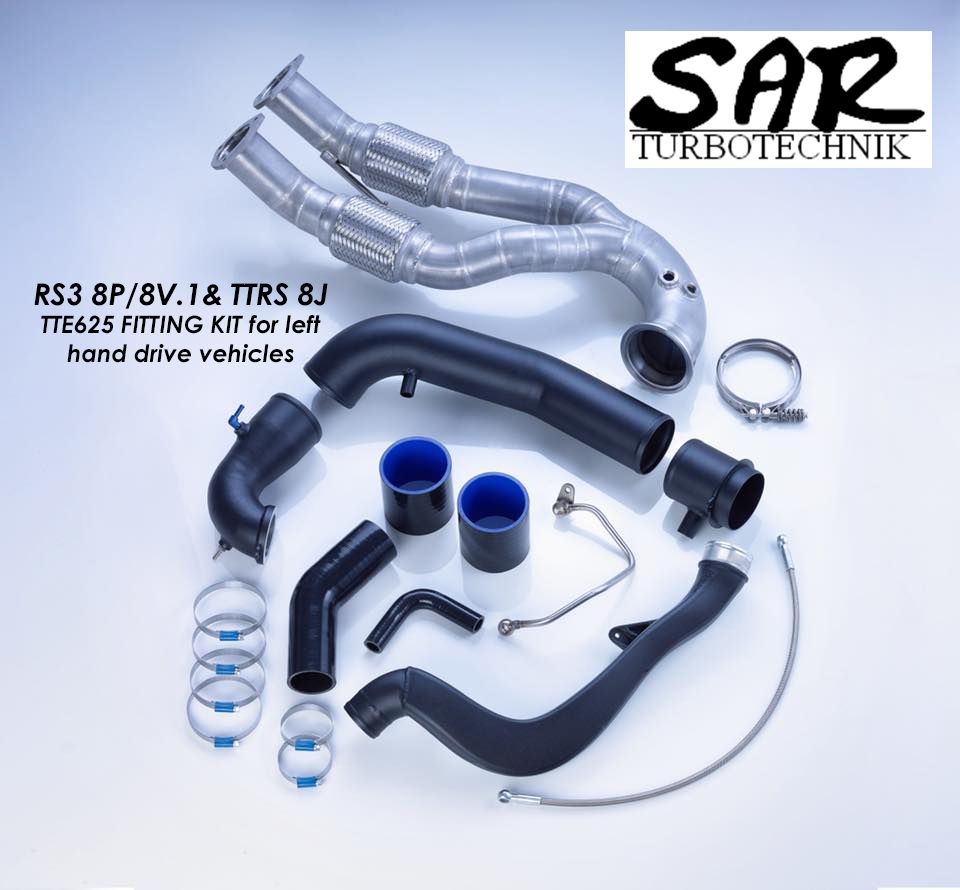

SAR fitting kit TTE625 Kit suitable for:

- Audi TRS & TTRS+ 8 J
- Audi rs3 8P
- AUDI RS 8 V (367 HP)


Consisting of:

- down pipe in 90 mm to 2 x 70 mm
- Aluminium Suction 90 mm
- pipes
- editing the pressure tube
- small parts (Clamps, Silicone Connectors


Bellow is a kit available only from Sar- Turbotechnik

Last edited by TTE Si on Fri May 04, 2018 9:38 am, edited 1 time in total.
Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Sat Jan 06, 2018 1:05 pm

RS3 8V prefacelift
TTE625, SAR/TIJ fitting kit, Forge FMIC, HPFP, MIlltek exhaust and with the MRC stage3 Remap

599ps 842nm at 1.95 Bar to 1.8 Bar (99 RON)



Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Wed Jan 24, 2018 1:55 pm

RS3 8V TTE625 from Denmark
- TTE 625
- SAR down pipe with cats
- SAR Suction
- SAR ntercooler
- Upgrade HPFP
- Stock exhaust
- Stock airbox

98Ron fuel 583ps 715Nm


Last edited by TTE Si on Fri May 04, 2018 10:03 am, edited 1 time in total.
Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Fri Mar 09, 2018 10:15 am

RS3 8V.1 TTE625

605ps 810Nm

MRC Tuning software

Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Mon Mar 12, 2018 10:00 am

RS3 8P TTE625 by TurboPerformance

582PS und 750NM auf 100-Oktan erreichen, bei gerade mal 1,75Bar Ladedruck, abfallend auf 1,5Bar gehalten 👏🏻

RS3 8P TTE625 by TurboPerformance

582 HP and 750 NM to 100-Octane, at just 1,75 bar boost pressure to 1,5 bar 👏🏻

Blog : https://www.turboperformance.blog/…/…/0 ... 8p-tte625/

#TTEPOWER #TTE625 #RS3 #AUDI #TURBOPERFORMANCE



https://www.youtube.com/watch?v=HcwgbFo ... e=youtu.be

Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Mon Mar 26, 2018 4:29 pm

RS3 8p + TTE625 + MTR ecu tuning= 652PS 810NM


Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky


User avatar
TTE Si
Site Sponsor
Posts: 816
Joined: Tue Sep 09, 2014 8:51 am

Re: TTE625 Upgrade Performance Turbocharger 2.5 TFSI TTRS 8j / RS3 8p, 8v

Post by TTE Si » Mon Jul 02, 2018 11:53 am

AUDI RS3 8P TTE625 from Tij-Power

MTR Performance software

612PS 704Nm

#TTEPOWER #RUNTTE #MTR #SAR #TIJPOWER #TTE625


Email : sales@theturboengineers.com

FACEBOOK LINK https://www.facebook.com/TheTurboEngineers/?ref=hl

IMPRESSUM & LEGAL NOTICE http://www.theturboengineers.com/#!impressum/acaky
