Easter holiday is a good time for DIY on simple matters, and I decided to respray the common issue of the peeling air con buttons.
There are a lot of solutions to re-spray and applying stickers, but usually they have a slight deviation from the font/design graphics or colour from the OE.

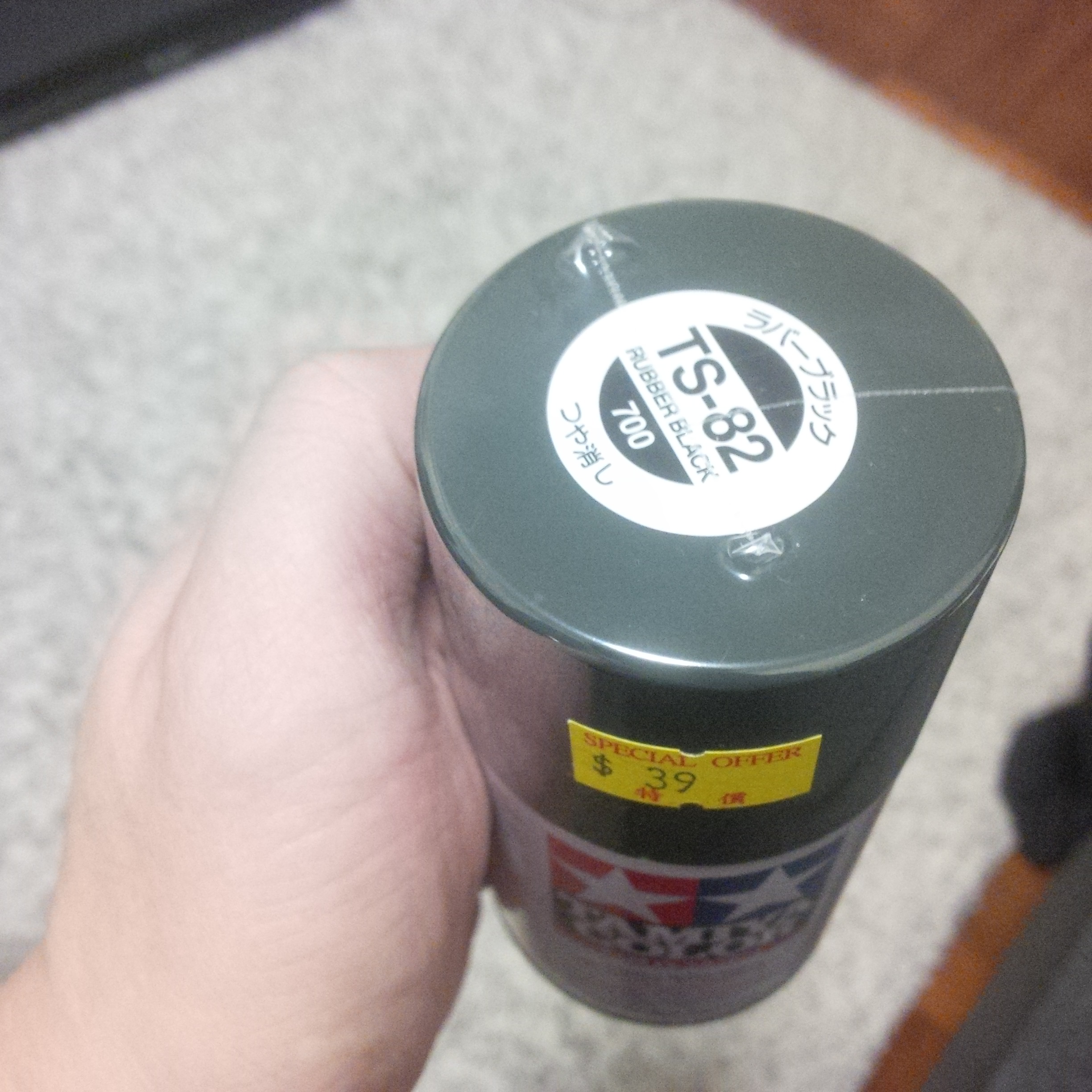

One day I was shopping at the hobby store and found there's a "Rubber Black" matt acrylic paint (Tamiya TS-82), so I figured to give it a try.

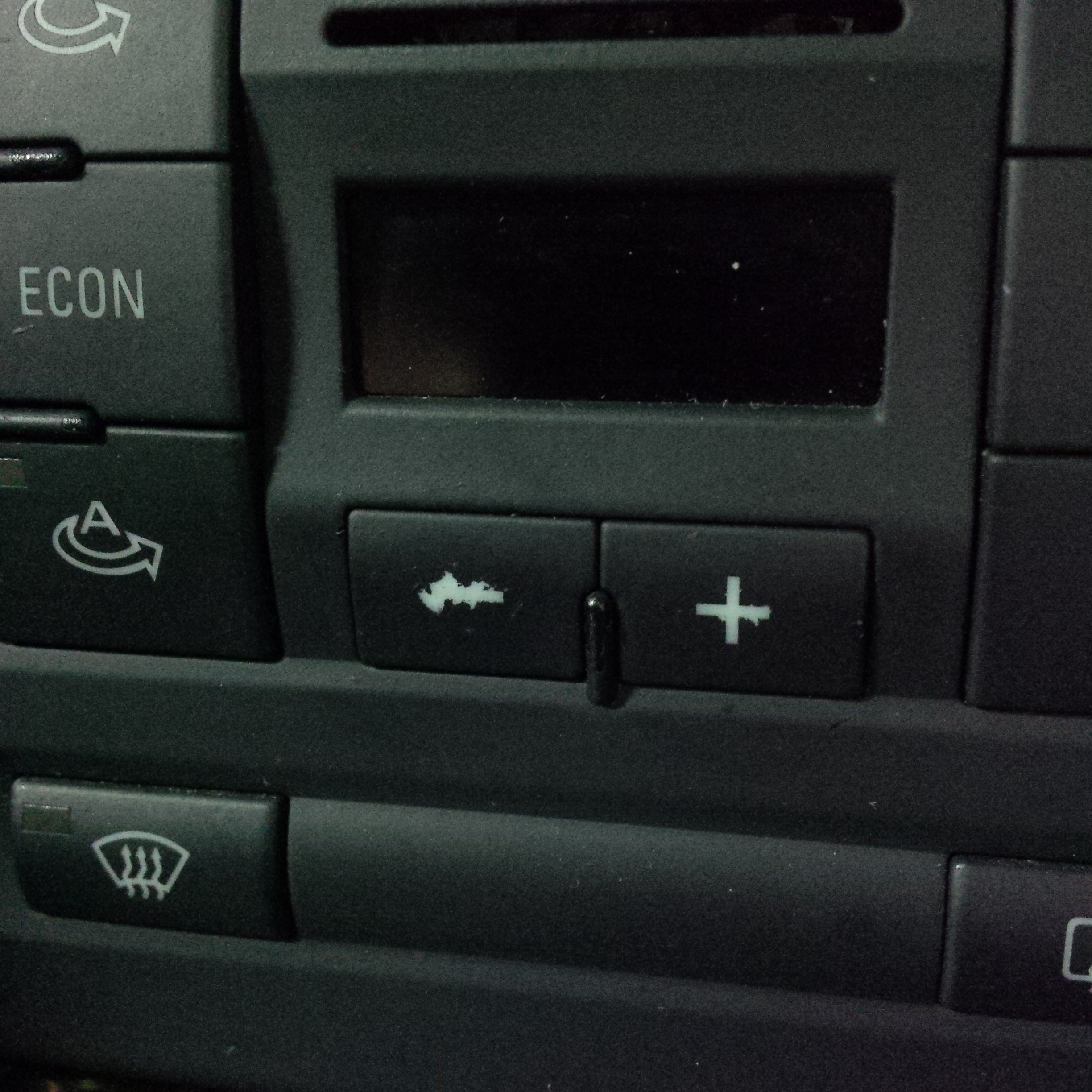

Using the internet resources I've pulled the head unit out and the climate control planel, you can notice the before condition. It's not bad but at the same time, annoying to look at:

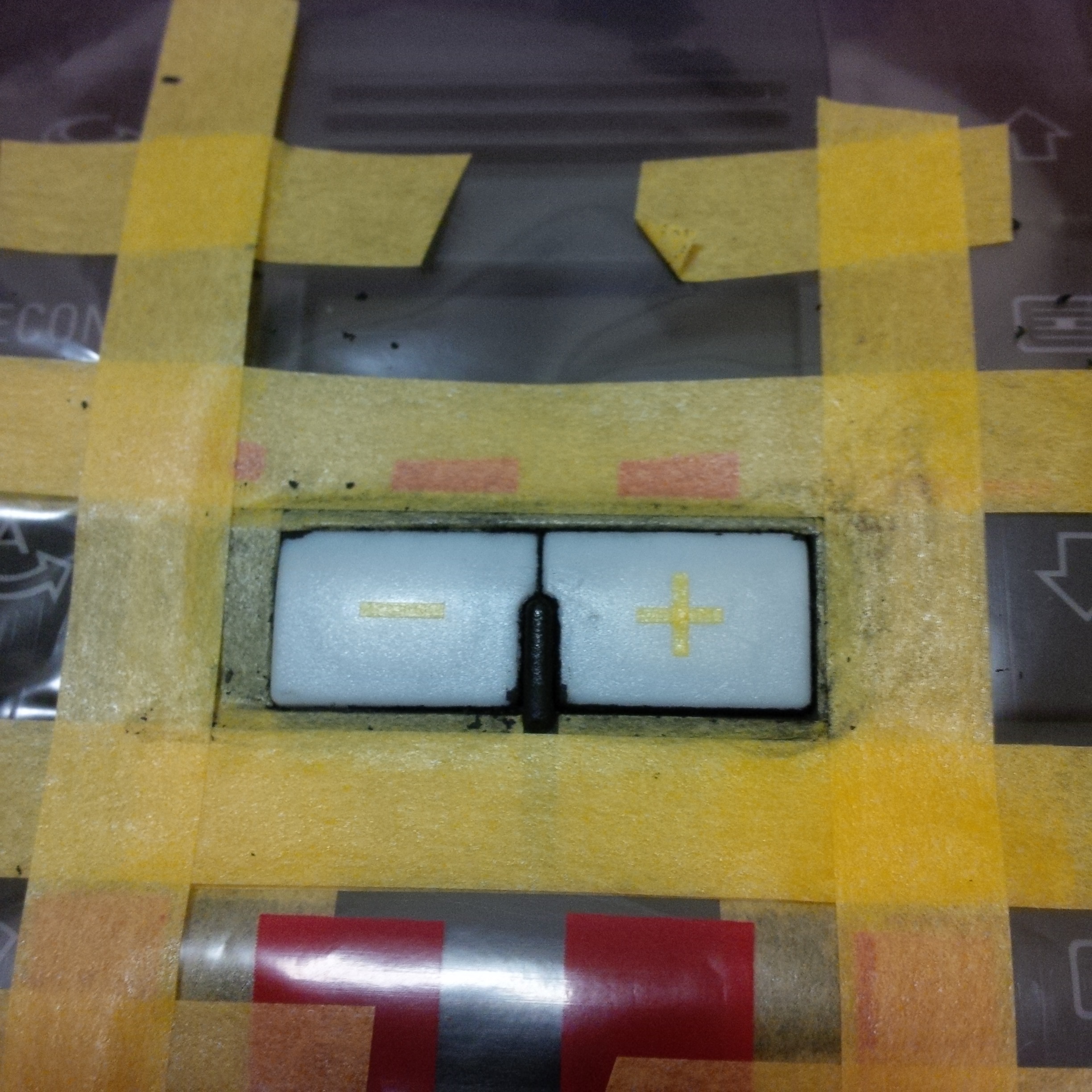

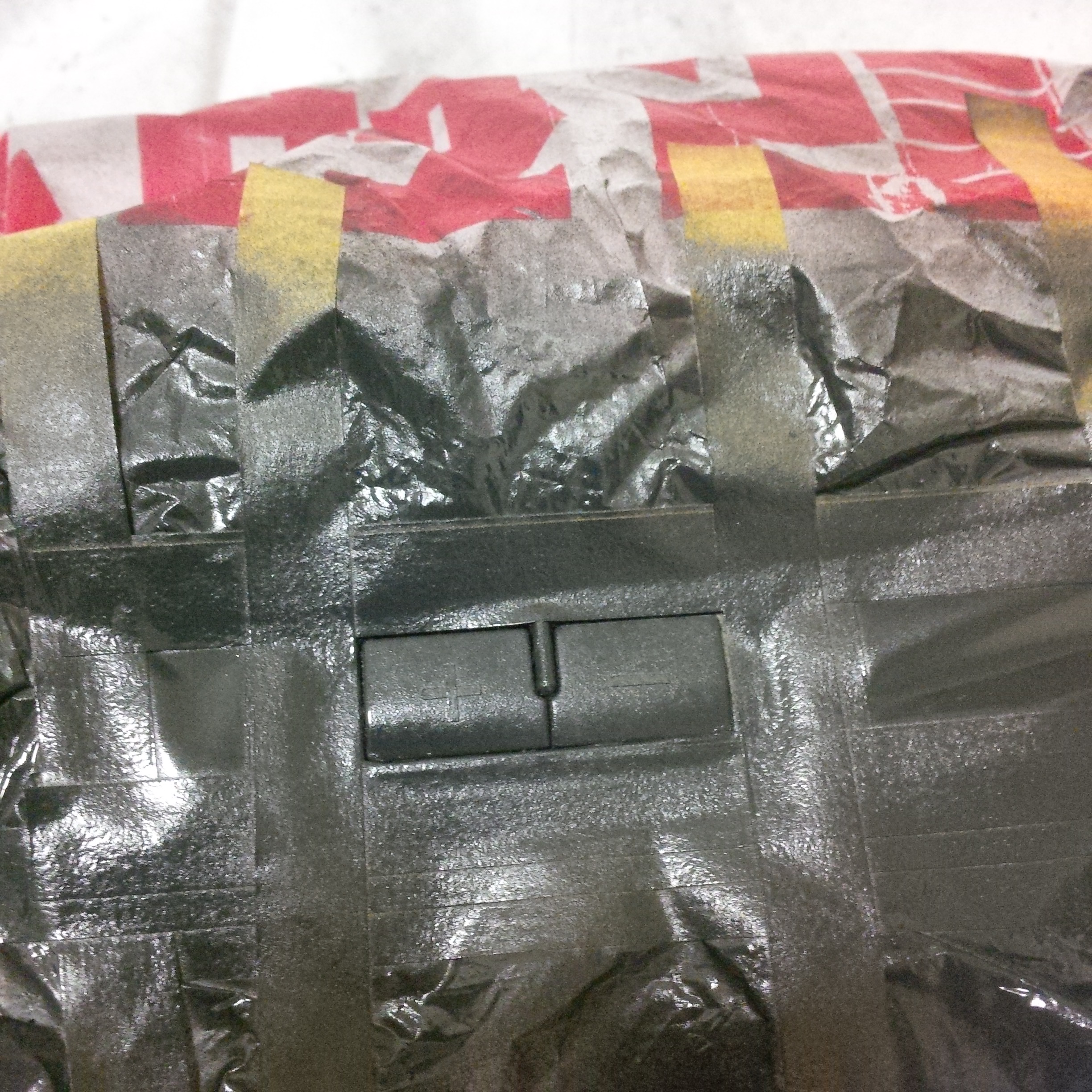

I originally planned to not strip the buttons so I just clean the paint off the buttons and masked off other areas. Another handy tip for the masking of the + and - is to buy, again, from the hobby shop, pre-cut masking tape normally for model cars. I used the 1mm wide version. This should also work for the +/- button on the steering:
After than I have sprayed the buttons and waited for it to dry:
Unfortunately, when I peel the masking tape off, the old paint was too old and peeled out together with the masking tape ...so I have decided to strip the panel out...this is rather simple involved undoing the torx screws and prying off the tabs.

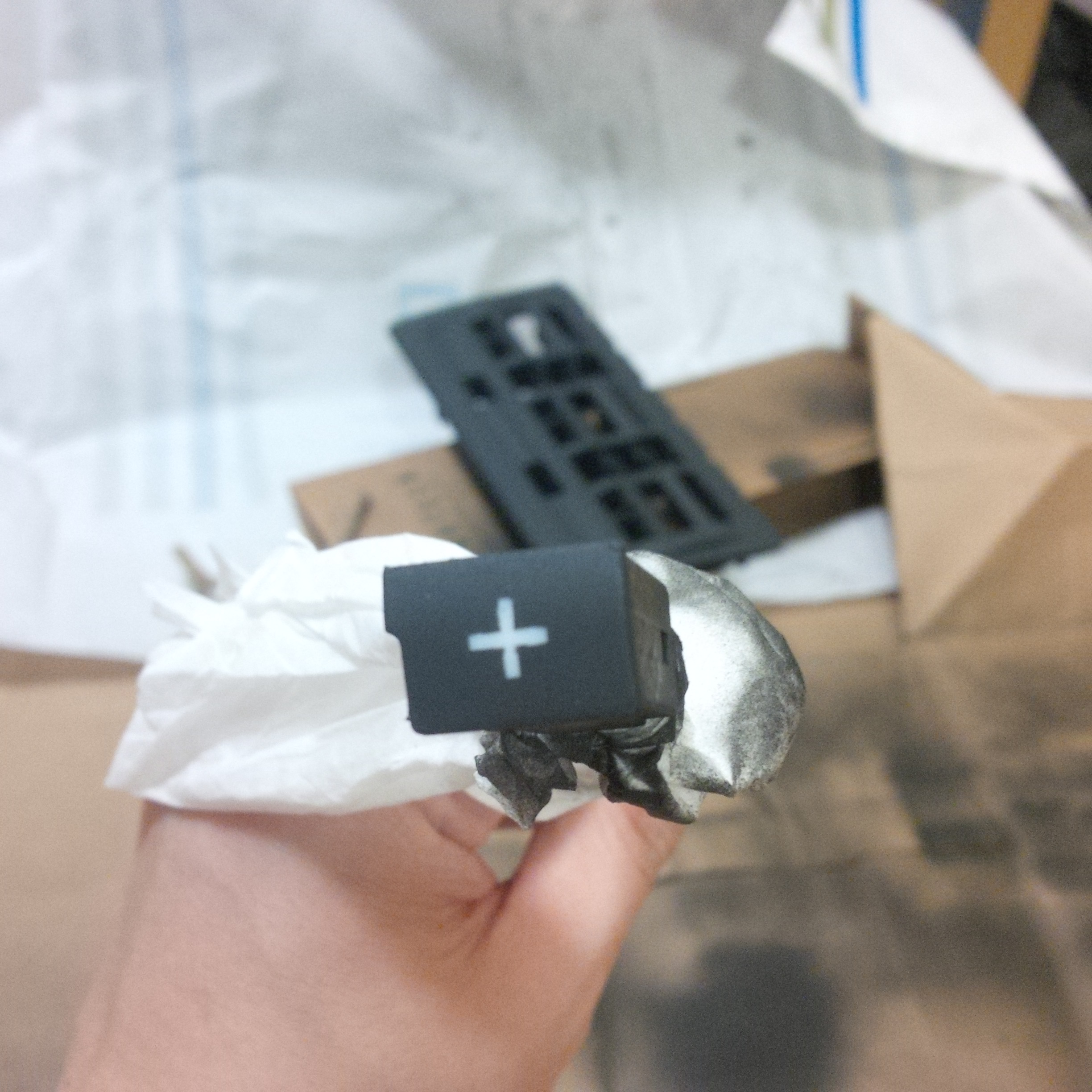

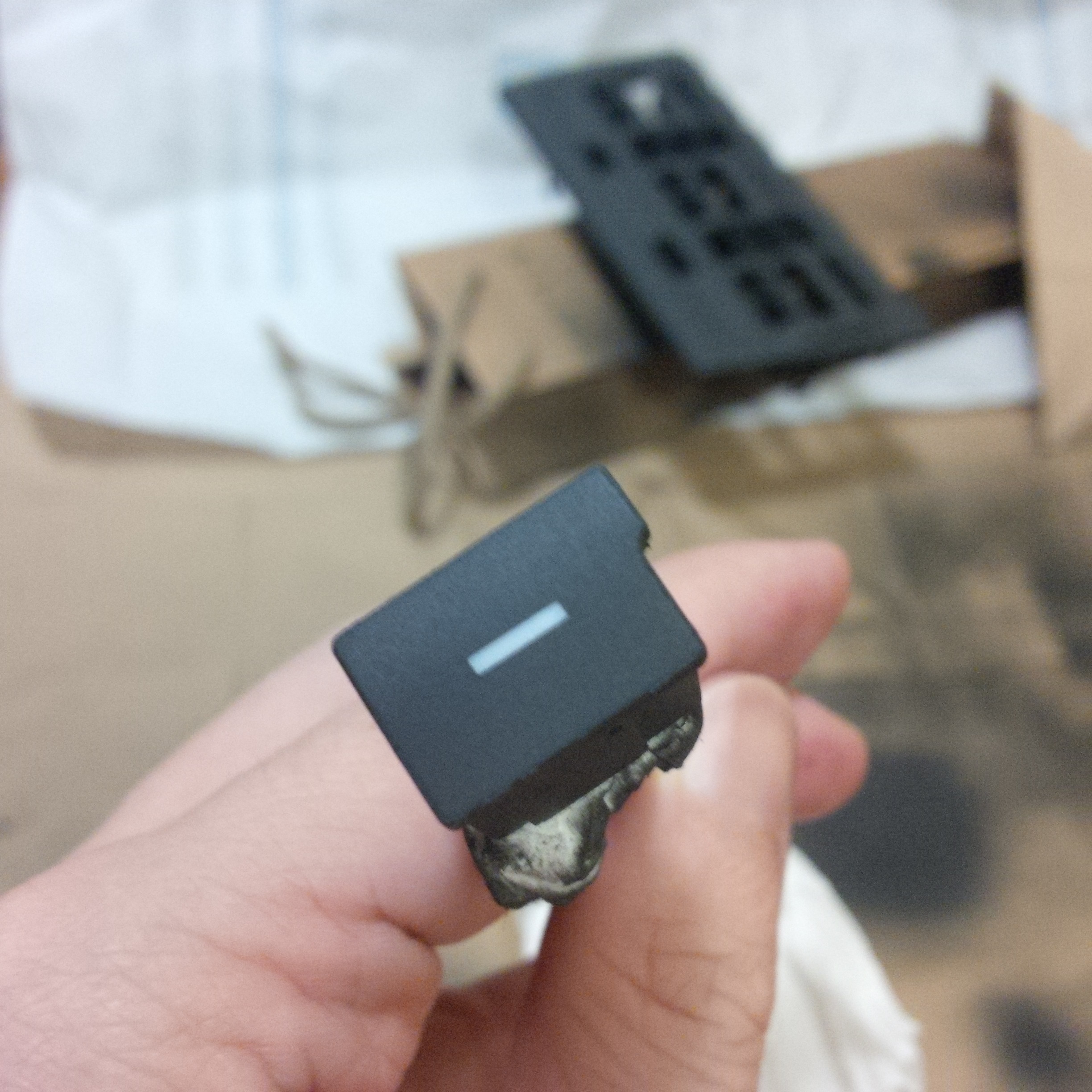

HOWEVER, the buttons turns out great !

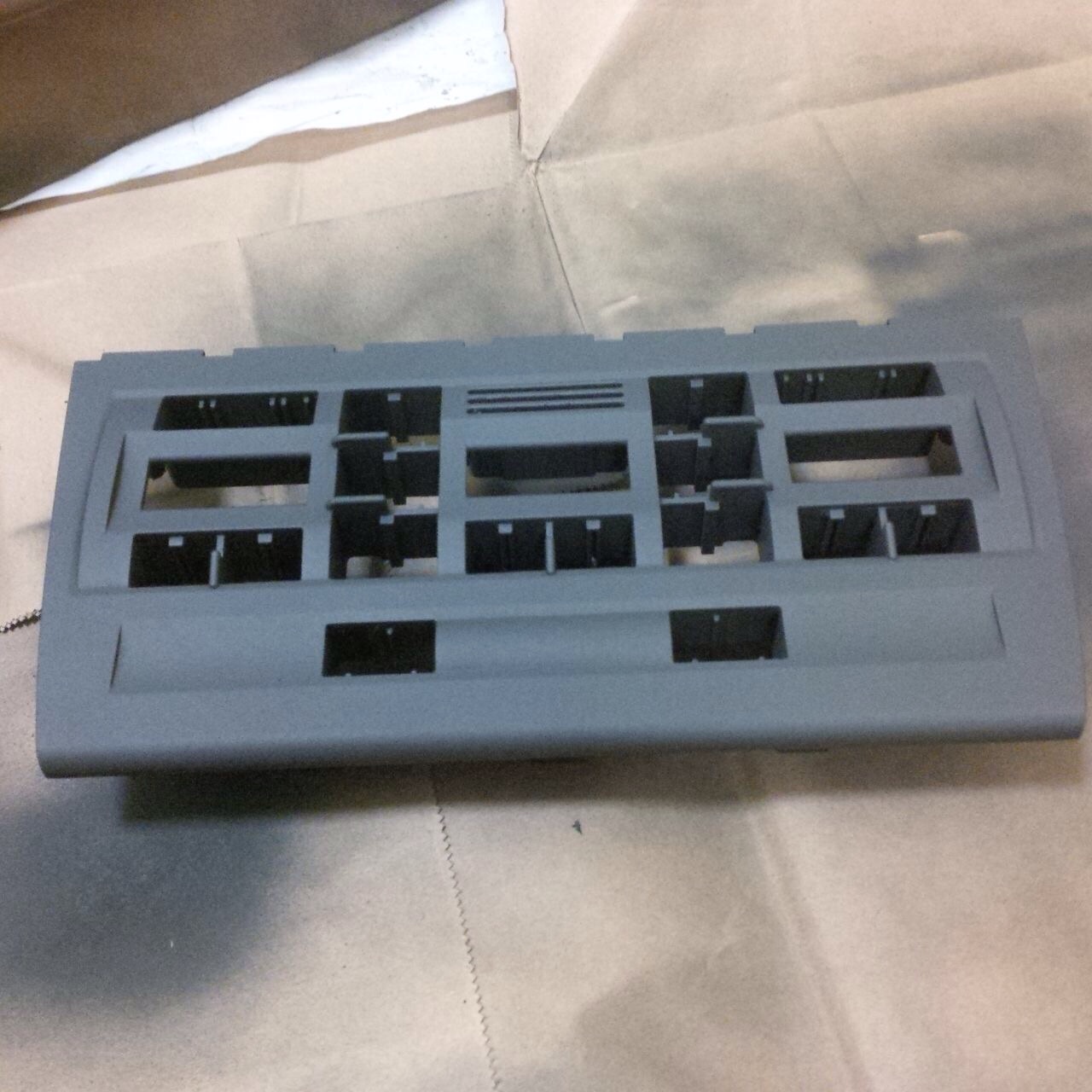

So after cleaning out the panel from the old paint, I repsrayed the entire face plate with 2 coats and left for 2 hours to fully cure.

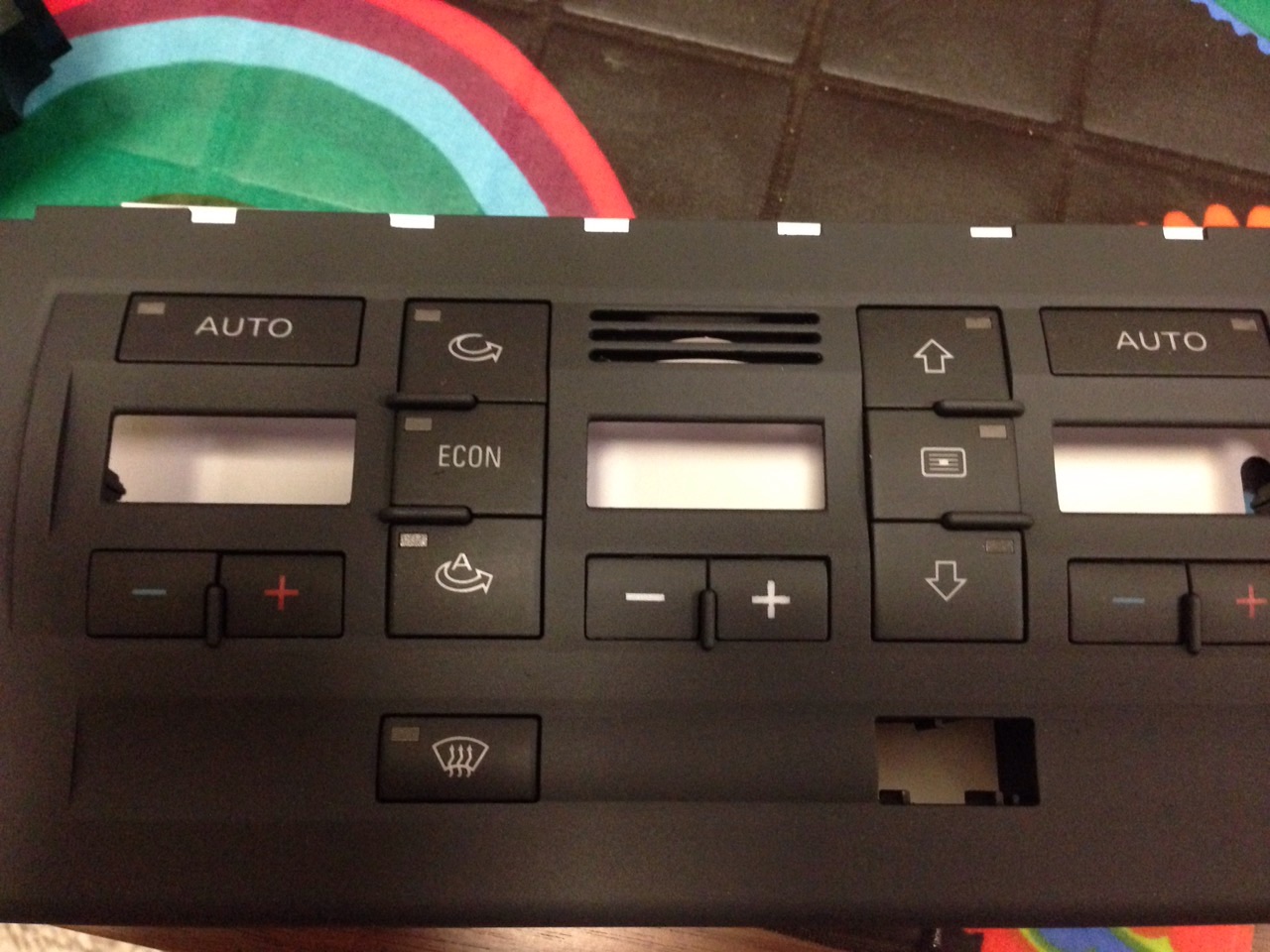

Putting the buttons back on and re-assemble:
You can tell, from the other original buttons, the colour looks 99.99999% identical and the best part is it also has the same rubberized feel and this paint is harder so it should withstand the daily pressing from driver and passenger.
So I figure the next test will be the headlight switch, and also the power window panels !
Total time, around 2hrs
Total cost, around $10 GBP for paint remover, masking tape and spray paint ! This is a huge saving over a new unit which can be a few hundred quid !
Ultimate fix for peeling air con button !
- CaptainLeadFoot
- 2nd Gear
- Posts: 137
- Joined: Sun Sep 22, 2013 9:28 am
Ultimate fix for peeling air con button !
Last edited by CaptainLeadFoot on Tue Apr 07, 2015 8:48 am, edited 1 time in total.
- Surrey Sam
- Cruising
- Posts: 4195
- Joined: Tue Nov 27, 2012 7:34 pm
- Location: Sussex
Re: Ultimate fix for peeling air con button !
Great write up and some tidy masking off there for the + & - symbols
Sepang Blue B8 RS4, MY14, All option packs, B&O, Adv Key, Adapt Cruise, Pan Roof, Akrapovic Titanium Exhaust, + more.
Previous - Sprint Blue B7 RS4 Avant, Ceramics, Sunroof, SS+, Buckets, FBSW, Bluetooth, 2010+ RNSe
Previous - Phantom Black B7 RS4 Avant, Black Optics, Titan pack, SS+, Buckets, FBSW
Previous - Sprint Blue B7 RS4 Avant, Ceramics, Sunroof, SS+, Buckets, FBSW, Bluetooth, 2010+ RNSe
Previous - Phantom Black B7 RS4 Avant, Black Optics, Titan pack, SS+, Buckets, FBSW
Re: Ultimate fix for peeling air con button !
+1 great stuff think ill give this ago.
Current-saloon rs4,Full decat Xpipe miltek,cold air feed,BMC air filter, TTS supercharged, MRC stage 3 L/C F/S,hell s+s brake lines,AP racing rotors + vagbremtechnic bells, kw v3s clifford 650mk2
Gone-audi s3 8p stage2+ with loba lo400 turbo.
Gone-audi s3 8p stage2+ with loba lo400 turbo.
- CaptainLeadFoot
- 2nd Gear
- Posts: 137
- Joined: Sun Sep 22, 2013 9:28 am
Re: Ultimate fix for peeling air con button !
Thanks guys !
I find it quite handy having all the model making tools to work on the masking of the + and -, get 2 pairs of forceps to position and apply. A ruler is also very handy to get the measurements right and you have to cut carefully.
The length of each masking strip is around 5mm long. This is the exact one i bought:
http://www.spotmodel.com/product_info.p ... anguage=en
I find it quite handy having all the model making tools to work on the masking of the + and -, get 2 pairs of forceps to position and apply. A ruler is also very handy to get the measurements right and you have to cut carefully.
The length of each masking strip is around 5mm long. This is the exact one i bought:
http://www.spotmodel.com/product_info.p ... anguage=en
Re: Ultimate fix for peeling air con button !
Pure jedi - brilliant!! That paint is useful stuff
Zero Drama
Re: Ultimate fix for peeling air con button !
Great writeup, Just need a Sticker for Sport and Setup and I can repaint my steering wheel.
Avus Audi RS4 2076|Black optic |Carbon Airbag surround|LED'S inside|RNS-E style Android Stereo with DAB+ dongle|
