by RTS BRAT » Sun Sep 25, 2011 10:36 pm

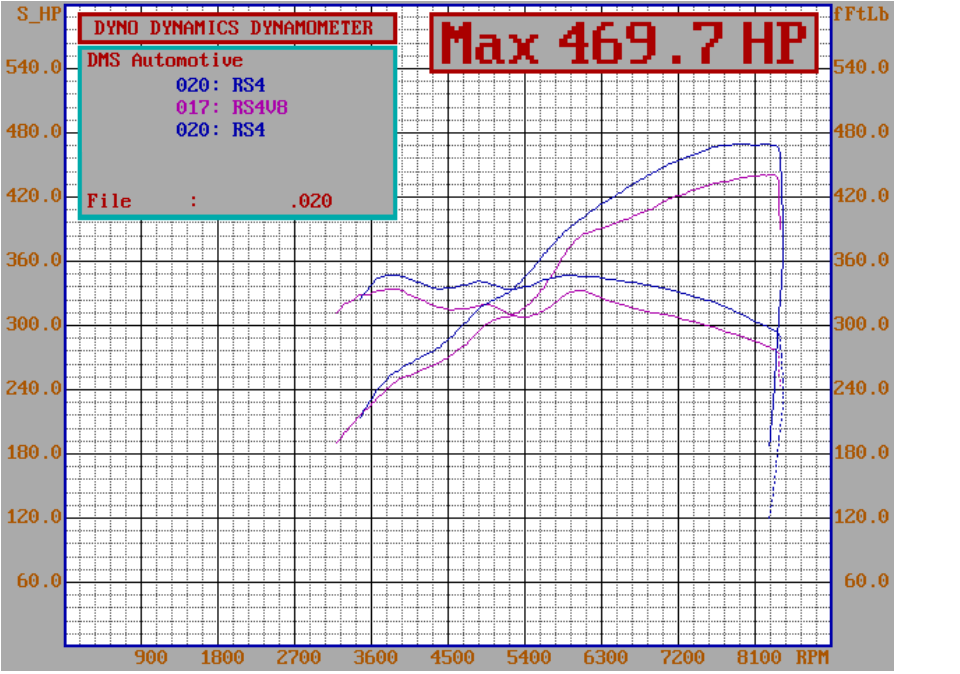

470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers, 30hp jump.
Kit includes Pure Carbon Fibre Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
The great thing is that the fans only reach 60mph, so true ram air benefits aren't fully realised on the rolling road.
I can confirm the radiator maintains OE Oil temperatures on the track (Silverstone) and Maximum Oil temperature was 130 degrees, the same as having both OE auxiliary radiators. On the motorway the Oil temps averaged around 96 degrees, climbing to 102 degrees Oil temperatures when I pushed on
470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
RTS BRATNeutral Posts: 14Joined: Sun Sep 25, 2011 9:40 pmLocation: Surrey
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by Rick_RS4 » Sun Sep 25, 2011 11:34 pm
it was rolling roaded at corten miller,
thanks guys thought 380 was bad but you have made me alot happyier, the CAF seems to have made a difference in induction noise and the Exhaust seems marginally louder, it also doesnt seem as hesitant anymore but it all could be my imagination, i will have to get out and do some logs this week,
do you think i should do a carbon clean with those figures?
Rick_RS43rd Gear Posts: 442Joined: Mon Dec 13, 2010 4:37 pm
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by sonny » Sun Sep 25, 2011 11:48 pm
RTS BRAT wrote:470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers, 30hp jump.
Kit includes Pure Carbon Fibre Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
The great thing is that the fans only reach 60mph, so true ram air benefits aren't fully realised on the rolling road.
I can confirm the radiator maintains OE Oil temperatures on the track (Silverstone) and Maximum Oil temperature was 130 degrees, the same as having both OE auxiliary radiators. On the motorway the Oil temps averaged around 96 degrees, climbing to 102 degrees Oil temperatures when I pushed on
Welcome to RS246 RTS BRAT. some good figures there. What is the race spec aux rad, MRC was talking about putting in a smaller Aux rad as a replacement for the OEM one, have you done this?
What is the Carbon fibre ram air duct, is it like a GruppeM system, and is so how did you overcome the hot air issue?
Just a few mods.
sonnyCruising Posts: 6276Images: 35Joined: Wed Nov 14, 2007 1:30 amLocation: Kent
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RTS BRAT » Mon Sep 26, 2011 12:58 am
The duct is similar in concept to the one shown in Rick's post, with no hot air induction issue. The radiator replaces the remaining auxiliary radiator in the other side of the car to ensure that Oil temperatures are controlled. It's an effective peace of kit that uses all the standard radiator mounts and is attached directly to the OE duct.
470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
RTS BRATNeutral Posts: 14Joined: Sun Sep 25, 2011 9:40 pmLocation: Surrey
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by P_G » Mon Sep 26, 2011 6:23 am
Did you make this carbon ram air kit RTS BRAT or is it one you bought?
P_GCruising Posts: 5897Joined: Sun Jul 09, 2006 1:25 pmLocation: Newcastle upon Tyne
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by aka_dk » Mon Sep 26, 2011 11:38 am
470 HP/348 ft lbs (B7, RS4)Rick_RS4 wrote:it was rolling roaded at corten miller,
thanks guys thought 380 was bad but you have made me alot happyier
its very rare for a standard car to get more than 390PS
370 - 390 is the norm for a healthy car
Current: Imola RS 4 Sal | A5 Cab
Previous: B8 S4 Sal | RS 4 Cab | TTS Coupe | S3 Black Ed | C5 RS 6 Plus | B6 S4 Avant | RS 4 Sal | C5 RS 6 Sal | B6 S4 Cab | B6 S4 Sal | C5 RS 6 Sal | TTqS 240
aka_dkCruising Posts: 6141Joined: Tue Oct 07, 2008 7:02 pm
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RTS BRAT » Mon Sep 26, 2011 3:47 pm
P_G wrote:Did you make this carbon ram air kit RTS BRAT or is it one you bought?
The complete Kit will be released on general sale - next month, awaiting first batch of radiators to arrive from the factory.
The company is called Renich, the website url: www.renichms.com is currently under construction, with the ability to able to order kits coming soon....... for further information and Queries email info@renichms.com
470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
RTS BRATNeutral Posts: 14Joined: Sun Sep 25, 2011 9:40 pmLocation: Surrey
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by Dannyrs4 » Mon Sep 26, 2011 3:49 pm
470hp from just a cold air ram Pipe and airbox? What other mods are in place ie port polished manifold carbon clean up Exhaust remap etc?
Pes m112 supercharged by Mrc Kincaid performance killer chiller !kw v3 coil-overs hr arb's!jhm trio short shift kit sachs/loba 650+ clutch and flywheel,Audi ceramic brakes Milltek no cat dp's and back with satin black tips non res ofcourse, won nitrous kit with maxx extreme, black optics
oohh and 630ps 715nms
Dannyrs44th Gear Posts: 618Joined: Thu Oct 21, 2010 11:49 amLocation: Scotland
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RTS BRAT » Mon Sep 26, 2011 5:24 pm
Dannyrs4 wrote:470hp from just a cold air ram Pipe and airbox? What other mods are in place ie port polished manifold carbon clean up Exhaust remap etc?
Work carried out prior to Inlet manifold spacers and Ram air duct (not Pipe), that completely replaces the Auxiliary radiator;
Milltek Resonated cat back, HKS 200 cell cats, Induction manifold port and polish (Kept variable veins), carbon clean, ECU remap, Gruppem induction kit.
All of these upgrades only yielded 445ps (=438.90 hp), MRC advised me that was all the expected from a car with Cats and variable veins. They also ensured that the auxiliary radiator was cooled prior to conducting the final runs, as the initial runs only yielded 405ps. So I know hot air was not a factor.
More importantly the upgraded radiator keeps the Oil temperatures at least 6 degrees cooler in traffic than the OE radiator could. On the track (using only OE radiators, and with the auxiliary radiator removed), the Oil temperatures quickly rose to 142 degrees after only three laps at Silverstone.
Last edited by RTS BRAT on Mon Sep 26, 2011 6:37 pm, edited 1 time in total.
470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
RTS BRATNeutral Posts: 14Joined: Sun Sep 25, 2011 9:40 pmLocation: Surrey
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by Rick_RS4 » Mon Sep 26, 2011 5:31 pm
the gruppe m isnt fully enclosed so will suck in some hot air even if you have a CAF
Rick_RS43rd Gear Posts: 442Joined: Mon Dec 13, 2010 4:37 pm
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RTS BRAT » Mon Sep 26, 2011 5:36 pm
Rick_RS4 wrote:the gruppe m isnt fully enclosed so will suck in some hot air even if you have a CAF
Exactly... This proves how effective the duct is.
470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
RTS BRATNeutral Posts: 14Joined: Sun Sep 25, 2011 9:40 pmLocation: Surrey
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RSKiwi » Mon Sep 26, 2011 5:44 pm
RTS BRAT wrote:
Dannyrs4 wrote:470hp from just a cold air ram Pipe and airbox? What other mods are in place ie port polished manifold carbon clean up Exhaust remap etc?
Work carried out prior to Inlet manifold spacers and Ram air duct;
Milltek Resonated cat back, HKS 200 cell cats, Induction manifold port and polish (Kept variable veins), carbon clean, ECU remap, Gruppem induction kit.
All of these upgrades only yielded 445ps (=438.90 hp), MRC advised me that was all the expected from a car with Cats and variable veins. They also ensured that the auxiliary radiator was cooled prior to conducting the final runs, as the initial runs only yielded 405ps. So I know hot air was not a factor.
More importantly the upgraded radiator keeps the Oil temperatures at least 6 degrees cooler in traffic than the OE radiator could. On the track (using only OE radiators, and with the auxiliary radiator removed), the Oil temperatures quickly rose to 142 degrees after only three laps at Silverstone.
Quick question, what was the advantage of keeping the variable vanes?
I am very interested in what you have done as basically I will have the identical setup to you.
____________________
MRC Stage 2
Milltek
GruppeM
Lots of carbon....in the engine
RSKiwi3rd Gear Posts: 294Joined: Mon Jan 17, 2011 6:43 pm
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RTS BRAT » Mon Sep 26, 2011 6:45 pm
RSKiwi wrote:
RTS BRAT wrote: 470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers, 30hp jump.
Kit includes Pure Carbon Fibre Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
Work carried out prior to Inlet manifold spacers and Ram air duct;
Milltek Resonated cat back, HKS 200 cell cats, Induction manifold port and polish (Kept variable veins), carbon clean, ECU remap, Gruppem induction kit.
All of these upgrades only yielded 445ps (=438.90 hp), MRC advised me that was all the expected from a car with Cats and variable veins. They also ensured that the auxiliary radiator was cooled prior to conducting the final runs, as the initial runs only yielded 405ps. So I know hot air was not a factor.
More importantly the upgraded radiator keeps the Oil temperatures at least 6 degrees cooler in traffic than the OE radiator could. On the track (using only OE radiators, and with the auxiliary radiator removed), the Oil temperatures quickly rose to 142 degrees after only three laps at Silverstone.
Quick question, what was the advantage of keeping the variable vanes?
I am very interested in what you have done as basically I will have the identical setup to you.
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
RTS BRATNeutral Posts: 14Joined: Sun Sep 25, 2011 9:40 pmLocation: Surrey
Top
--------------------------------------------------------------------------------
Re: My Rs4 Project
by RTS BRAT » Mon Sep 26, 2011 6:46 pm
I kept the Vanes as removing them causes the sensors to error. They can't read the posistion of the vanes... I got mine polished and re-inserted instead.
Where did you get you upgraded radiator from?
470 HP/348 ft lbs (B7, RS4)
Dyno'd on 20" using new Carbon Fibre Ram Air kit and inlet manifold spacers 30hp jump.
Kit includes Pure Carbon Fibre of Ram Air Duct and Race spec Auxiliary radiator (direct replacement).
sorry for being a doubter but with cats etc in place it sounds bollocks to me. Btw I run 450bhp on a dyno dynamics rolling road and I've got a supercharger, they struggle to pick up the b7 torque split plus your dyno doesn't mention which mode you ran in ie shoot 44 centre diff etc etc I can dig out mine it tells you all of if, what was your afr reading also?
