Re: Project, they all are...

Post by Felix2566 » Sat Feb 10, 2024 9:41 pm

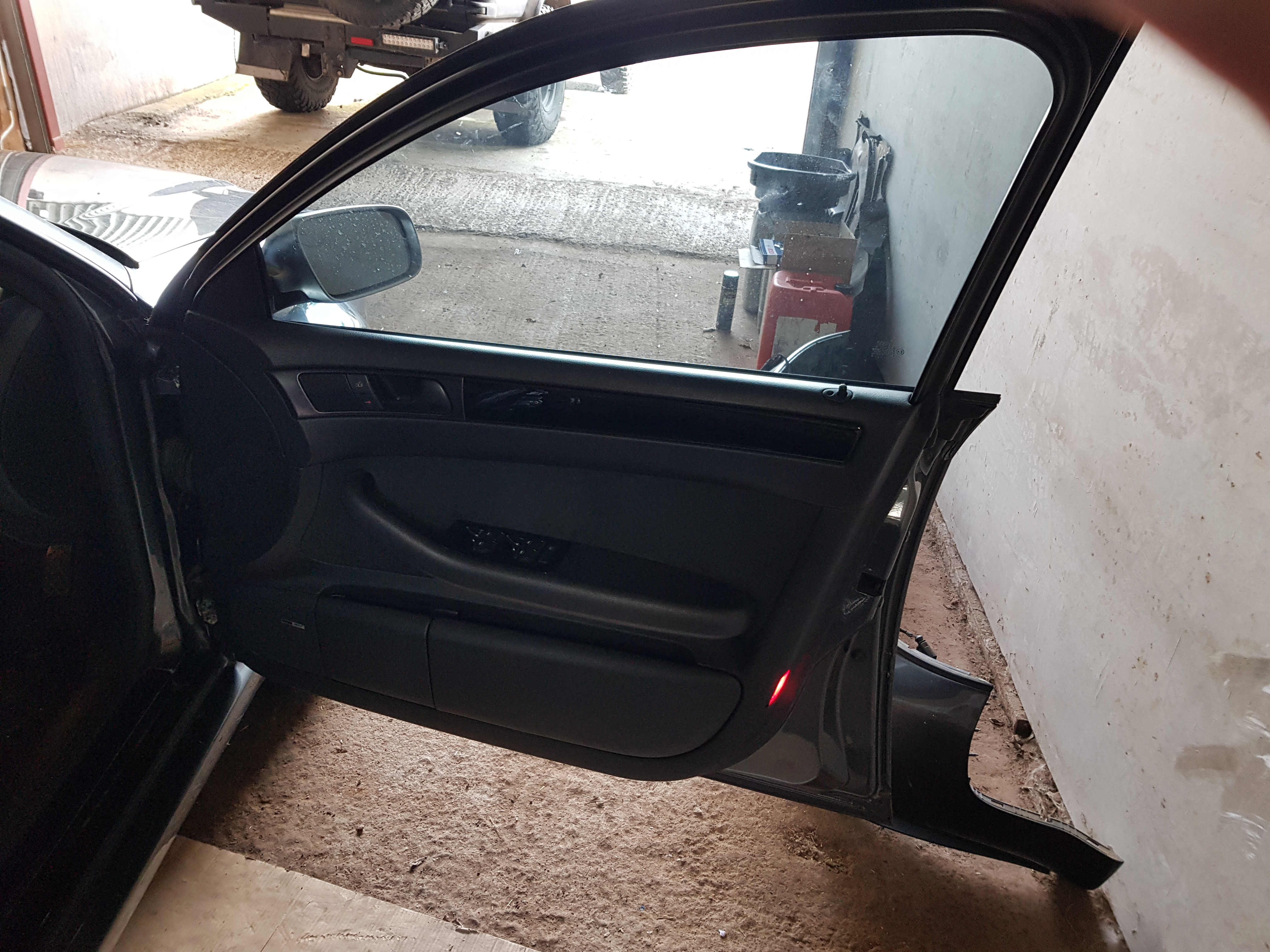

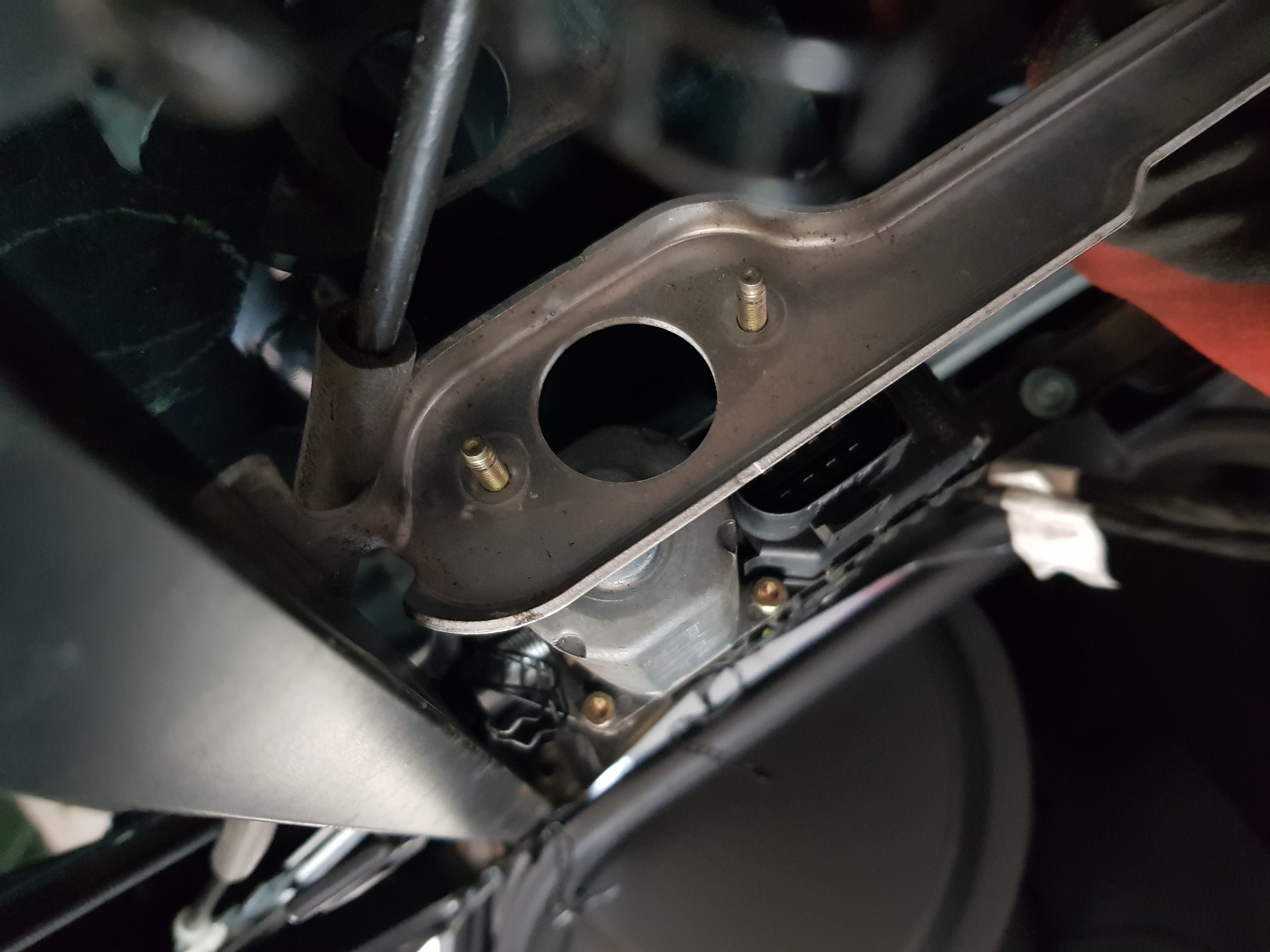

Got the drivers door window regulator finished and all working. Slightly annoyingly there is a support bracket for the end of the motor, but the replacement regulator frame positions the motor slightly differently so it didnt fit. I couldnt see it being a massive issue not having the support for the motor so unbolted the bracket.
Main thing is the window goes up and down again! 😅

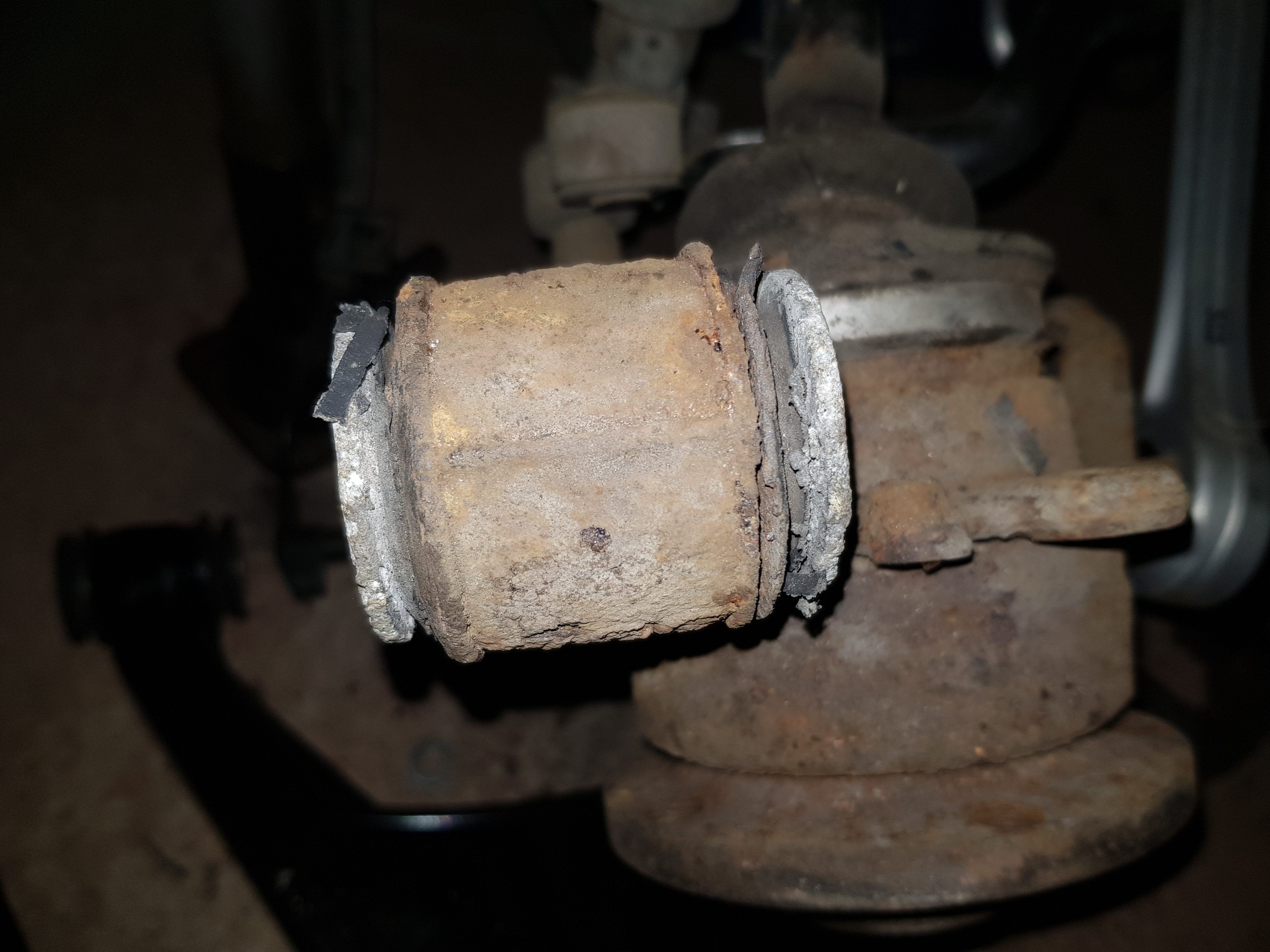

Next job is rear suspension overhaul and rear right wheel bearing change. Essentially all the bushes are looking pretty haggard so will be replaced. Hunting down the specific RS ones was an expensive exercise...
Attachments

Sxcarmyboi
2nd Gear
Posts: 209
Joined: Sun Jan 13, 2019 10:58 am
Location: Maidstone

Re: Project, they all are...

Post by Sxcarmyboi » Sun Feb 11, 2024 8:20 am

Felix2566 wrote:
Sat Feb 10, 2024 9:41 pm
Got the drivers door window regulator finished and all working. Slightly annoyingly there is a support bracket for the end of the motor, but the replacement regulator frame positions the motor slightly differently so it didnt fit. I couldnt see it being a massive issue not having the support for the motor so unbolted the bracket.
Main thing is the window goes up and down again! 😅

Next job is rear suspension overhaul and rear right wheel bearing change. Essentially all the bushes are looking pretty haggard so will be replaced. Hunting down the specific RS ones was an expensive exercise...
Are you sticking with standard bushes then. When you do the rear subframe over haul?
As there are a few aftermarket option out there now. With some not really making a big difference on feel. If you went for the lower stiffness option. Would also probably workout cheaper too.
C5 RS6 Avant
800+ BHP loading
1100+ ft lb loading

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Sun Feb 11, 2024 10:29 am

Yes have stuck with Audi bushes. As its a road can and I never intend to track it etc, I have an evo for that, I want to retain the OEM ride quality.

I'm not planning on doing the subframe bushes them selves as they appear fine.

I'm open to recommendations for bush brands you think are a good replacement.

Sxcarmyboi
2nd Gear
Posts: 209
Joined: Sun Jan 13, 2019 10:58 am
Location: Maidstone

Re: Project, they all are...

Post by Sxcarmyboi » Sun Feb 11, 2024 3:38 pm

Well personally from reading your reply I would have gone with strongflex road bushes if it was me. Still retains the OE ride quality just with a better quality bush.

If you want bushes for the subframe I believe the only option you have is solid metal bush's inserts or powerflex bushes.

https://strongflexuk.com/product-catego ... o-allroad/

https://www.powerflex.co.uk/products/RS ... 723/1.html
C5 RS6 Avant
800+ BHP loading
1100+ ft lb loading

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Sun Feb 11, 2024 9:35 pm

I had always assumed that the poly bushes were always much harder than the OE ones. I'll know for next time! Have you used them yourself?

All the rear wishbones and hubs are off the car. Will have to wait till next weekend to finish replacing the bushes and fitting back together again.
Attachments

Sxcarmyboi
2nd Gear
Posts: 209
Joined: Sun Jan 13, 2019 10:58 am
Location: Maidstone

Re: Project, they all are...

Post by Sxcarmyboi » Sun Feb 11, 2024 10:28 pm

I have changed every mount and bush on my car for the stiffest ones on the market. But that because I use my car for track days and fast road.

along with coilovers and upgraded anti roll bars too.
C5 RS6 Avant
800+ BHP loading
1100+ ft lb loading

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Sat Feb 17, 2024 7:52 pm

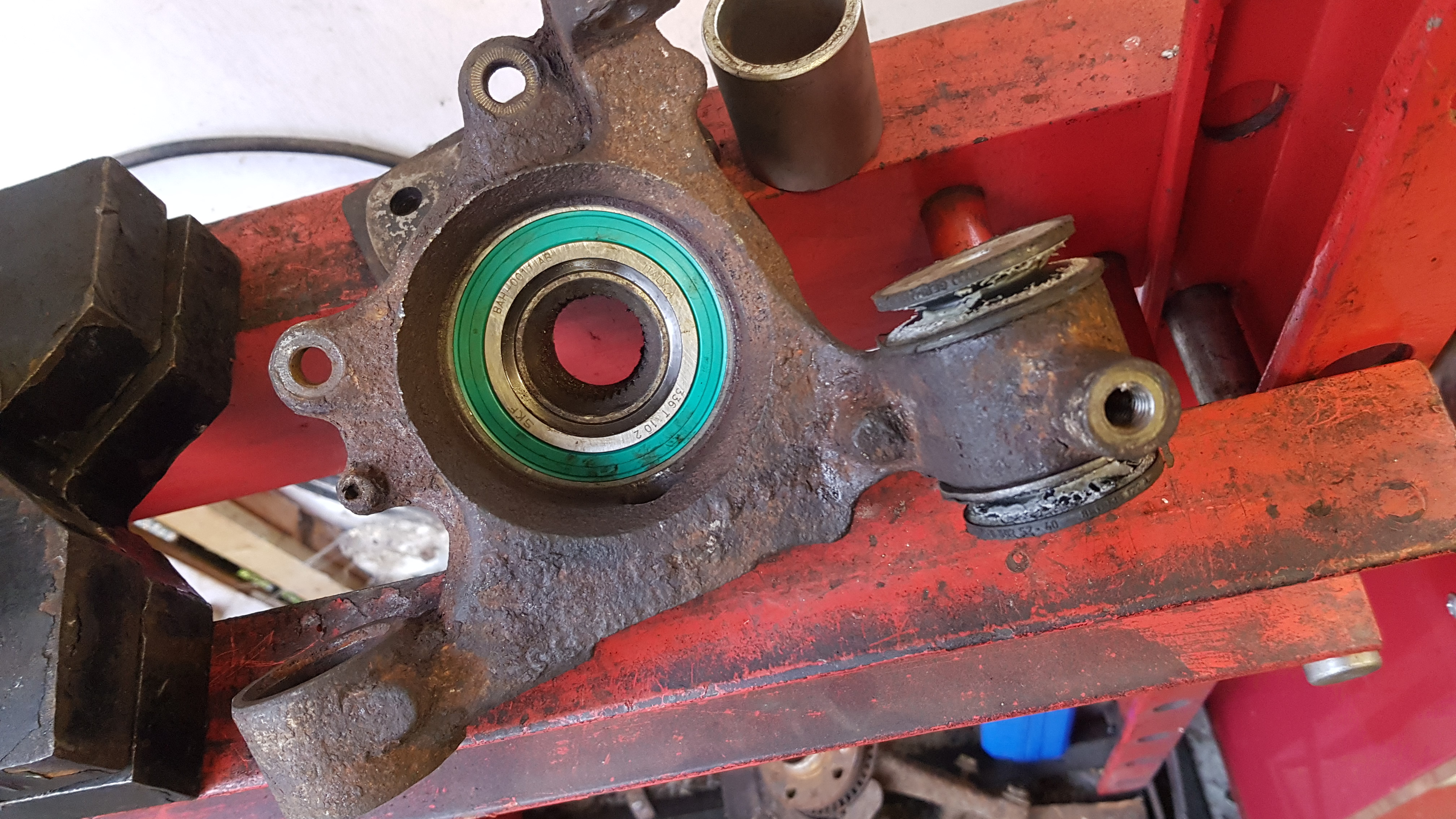

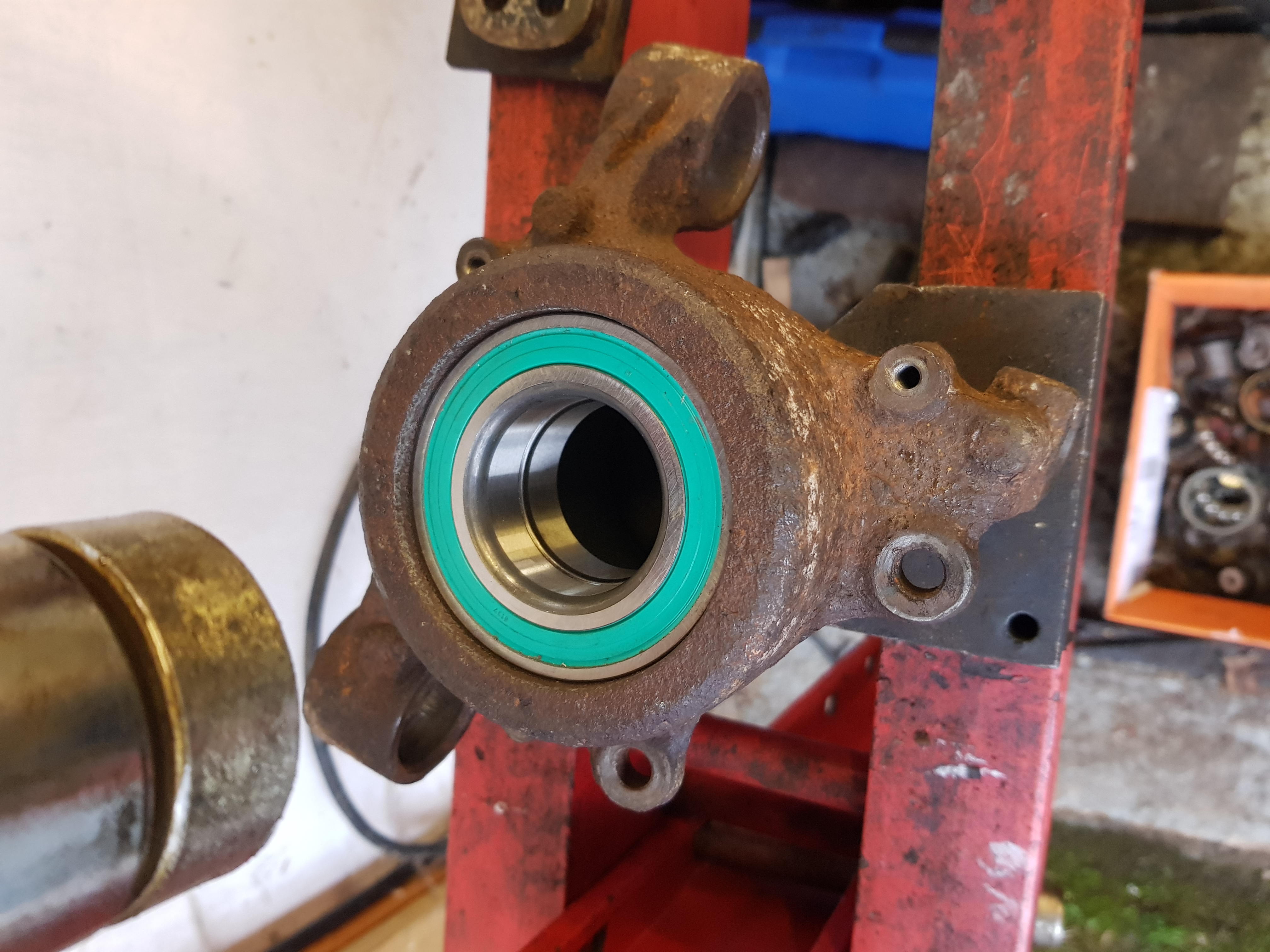

Finished changing the last remaining bushes and replaced the rear right wheel bearing....ready to be all fitted back on the car tomorrow.
Attachments

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Thu Apr 04, 2024 9:11 pm

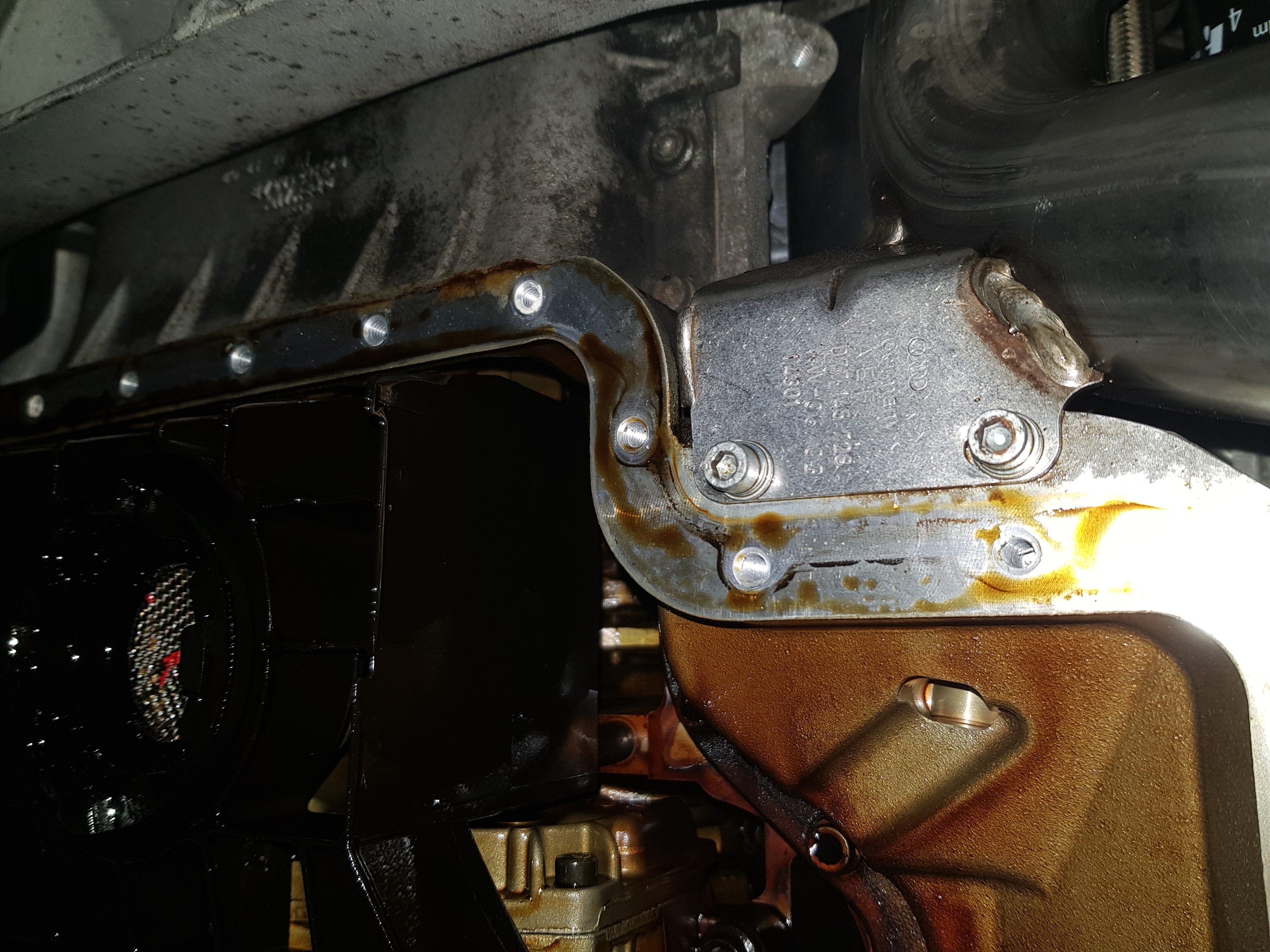

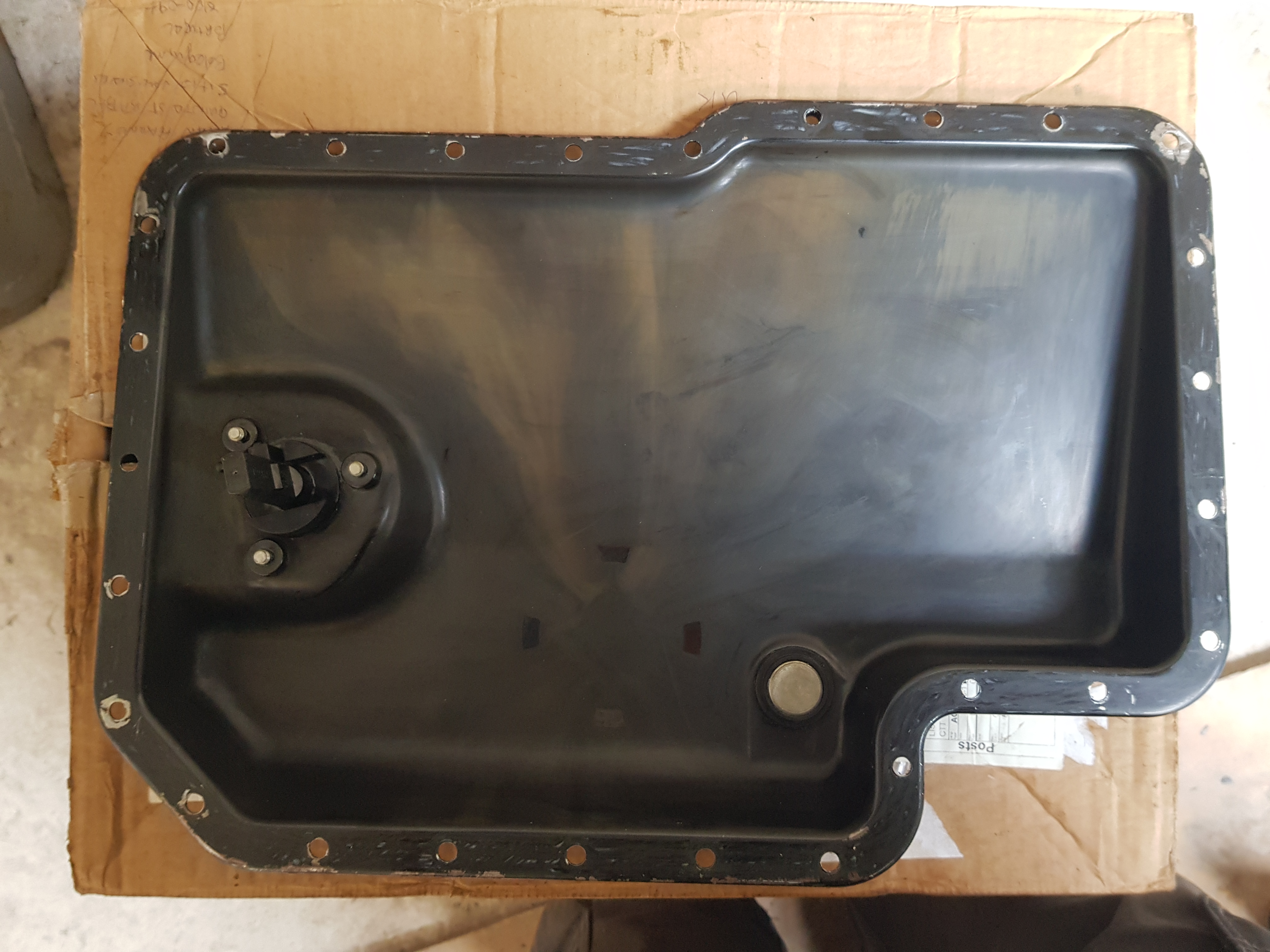

Managed a bit more work on the old girl today, oil change and sump re-sealed.
Car is much quieter on start up with the fresh oil.

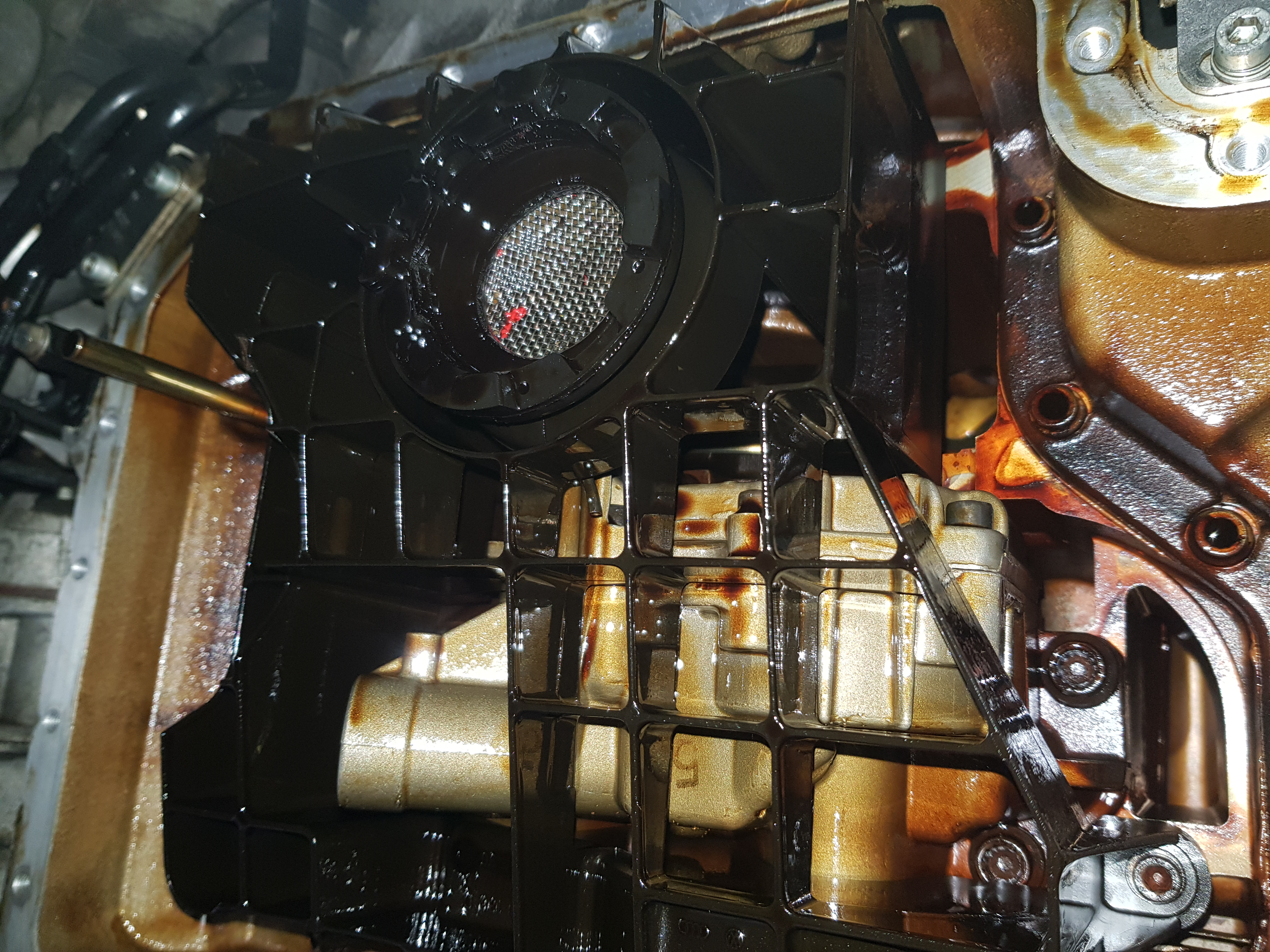

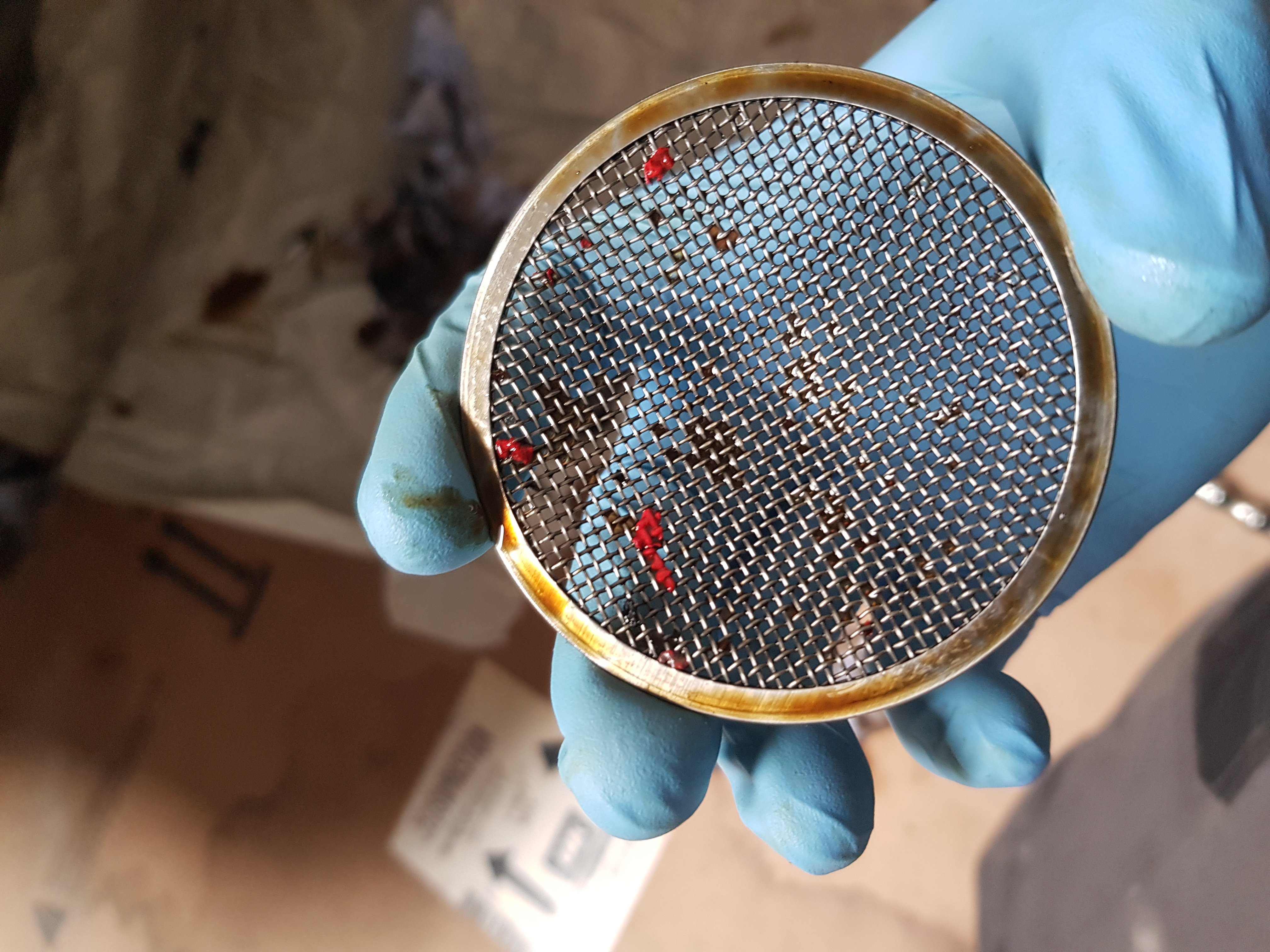

Took the strainer off to clean out a small amount of debris. The red stuff was hard like paint, not sure what it was. Nothing unusual in the sump. All was pretty clean.
Attachments

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Thu Apr 04, 2024 9:12 pm

1 parking sensor front and back to replace and I wont really have any excuse not to get it MOTd and back on the road again!

Sxcarmyboi
2nd Gear
Posts: 209
Joined: Sun Jan 13, 2019 10:58 am
Location: Maidstone

Re: Project, they all are...

Post by Sxcarmyboi » Sat Apr 06, 2024 8:40 am

Doing well mate. It’s also nice to see somebody looking after there car this maticulasly💪🏼
C5 RS6 Avant
800+ BHP loading
1100+ ft lb loading

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Sun Apr 07, 2024 3:15 pm

Thanks, would rather do a load of work now while the weather is rubbish and hopefully have less problems when ever things get warmer and drier!

Leak from the sump appears to be fixed, no drops have come back and all looks dry around the sump pan seal.

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Sat Apr 13, 2024 11:30 am

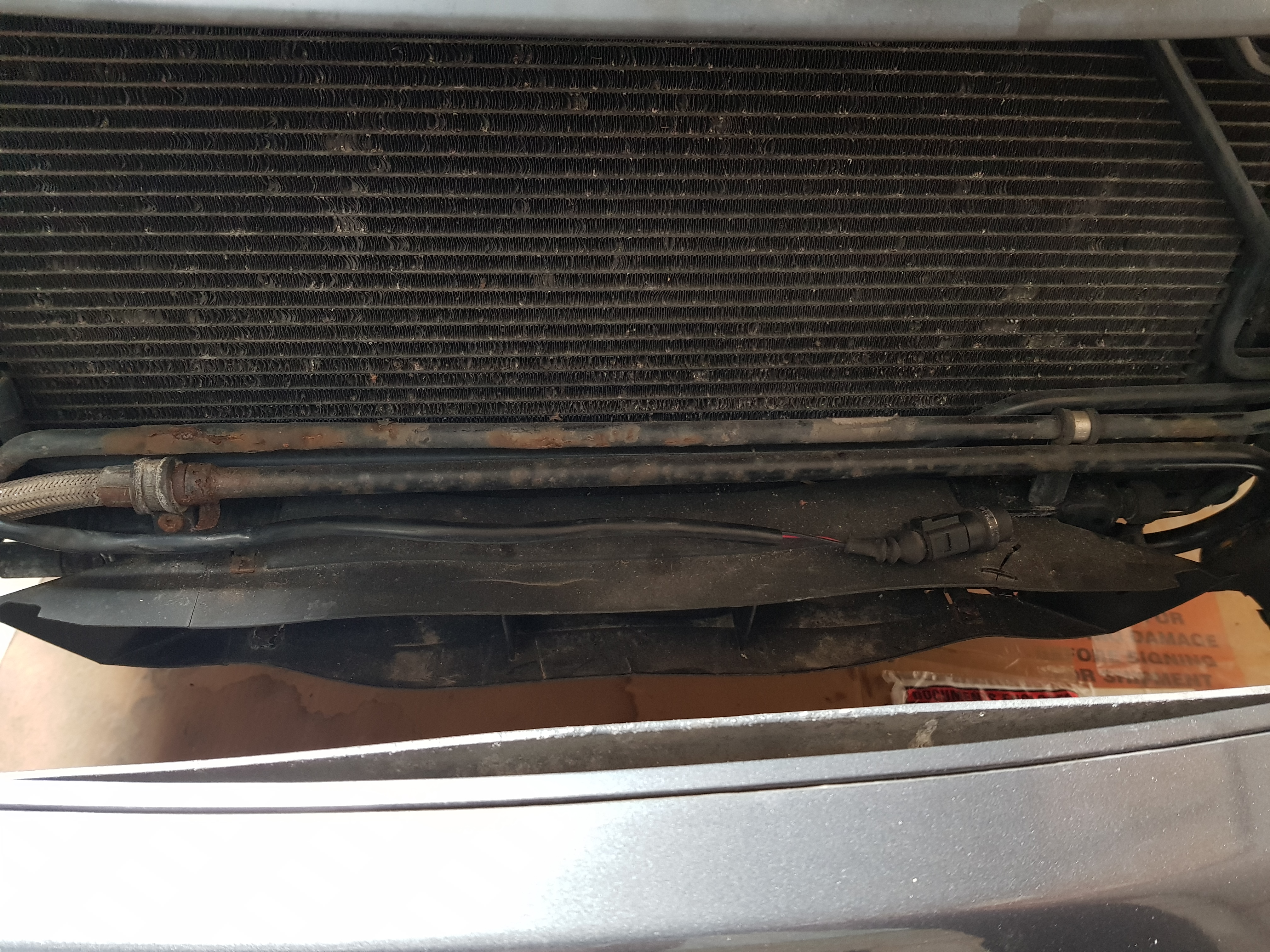

I'm about to put the front bumper on and there is this sensor (I think it's a temp.sensor for the solar sunroof) where is it supposed to go? It was just tucked ontop of the oil cooler pipes
Attachments

User avatar
Shoppinit
Cruising
Posts: 20315
Joined: Wed Dec 31, 2008 6:24 pm

Re: Project, they all are...

Post by Shoppinit » Sat Apr 13, 2024 12:09 pm

It's a temp sensor for the dash display of ambient temperature. Doesn't matter where you put it because it always gives stupid temps anyway, but it's supposed to clip somewhere on the bumper IIRC.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."

Felix2566
2nd Gear
Posts: 212
Joined: Sun Apr 09, 2023 2:27 pm

Re: Project, they all are...

Post by Felix2566 » Sat Apr 13, 2024 12:25 pm

Cheers Shop. There are some unused clips inside the crash bar I can probably tuck it into.

pwack
1st Gear
Posts: 59
Joined: Wed Mar 29, 2023 9:18 am

Re: Project, they all are...

Post by pwack » Sun Apr 14, 2024 3:28 pm

If you still have the oil cooler plastic air guide ,there should be a hole on the passenger side of the air guide , thats the originl location for the external temp sensor, mine didnt have the air guide when I got it so mines zip tied behind the centre grill , like Shop said though , it never gives the right Temp!!!
