That's the one I had with mine. I remember why my bumper was off now, cambelt service.00819 - High Pressure Sensor (G65)
29-00 - Short to Ground
Air-con problem
Re: Air-con problem
R18 GTX Estate > Saphire 2.0i Ghia > R19 16v > Vectra V6 SRi > M3 > RS6 Avant
Re: Air-con problem
Yay !! new switch fitted, got a/c again.
Re: Air-con problem
Result.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
-
Russellj80
- Neutral
- Posts: 29
- Joined: Sat Feb 23, 2013 9:04 pm
Air-con problem
Hello, just new here and find myself with this same problem. Do any of you guys have a pic of the switch in it's location?? I have a new switch ready to install but can't find where it is for love nor money! Days I've been looking now!! .. Is it a bumper off job??
Re: Air-con problem
Have you got Vagcom?
I had the same issue with the G65 sensor and it went into economy mode. The fault code indicated it was an intermittant fault, so reset the code, got my aircon back and 4 months later still working fine.
I had the same issue with the G65 sensor and it went into economy mode. The fault code indicated it was an intermittant fault, so reset the code, got my aircon back and 4 months later still working fine.
-
Russellj80
- Neutral
- Posts: 29
- Joined: Sat Feb 23, 2013 9:04 pm
Air-con problem
Yeah I have a Vagcom but it's not a high end one. .. Good enough though I reckon?

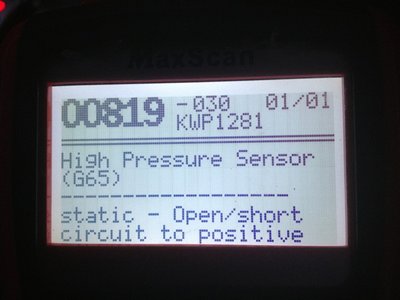

I've tried erasing the code but it's back instantly as soon as I check again. It says 00819 (G65) high pressure sensor static - open/short to positive
I've tried erasing the code but it's back instantly as soon as I check again. It says 00819 (G65) high pressure sensor static - open/short to positive
-
Russellj80
- Neutral
- Posts: 29
- Joined: Sat Feb 23, 2013 9:04 pm
Air-con problem
Ok it's all working fine now after locating the switch eventually and simply replacing it... job done!!
-
Russellj80
- Neutral
- Posts: 29
- Joined: Sat Feb 23, 2013 9:04 pm
Air-con problem
For everyone else's benefit ill put up a few pics. I should have taken some pics while doing it but at least you will see the location. Bearing in mind this is an "03" plate RS6.

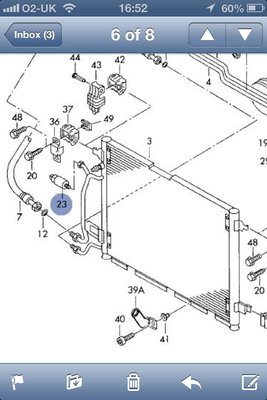

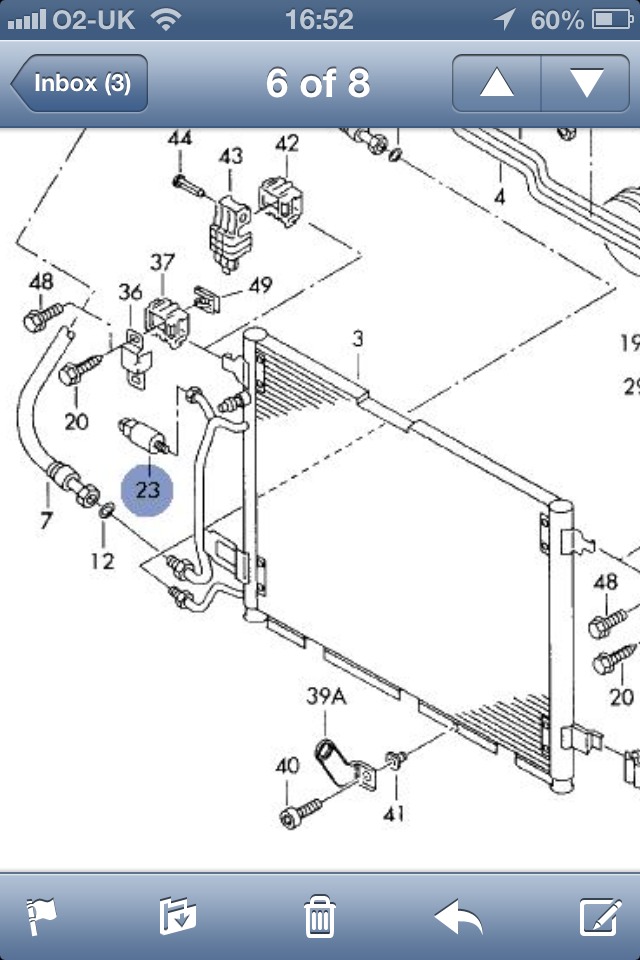

Also the very helpful man at Audi sent me an exploded diagram of the A/C system which I'll put up as well. Looking at the diagram it looks like the switch is sitting left of the condenser (driver side) ... but on my car it was on the right side of the condenser (passenger side) go figure? Anyway everything is working fine and I'm happy
Also the very helpful man at Audi sent me an exploded diagram of the A/C system which I'll put up as well. Looking at the diagram it looks like the switch is sitting left of the condenser (driver side) ... but on my car it was on the right side of the condenser (passenger side) go figure? Anyway everything is working fine and I'm happy
-
Russellj80
- Neutral
- Posts: 29
- Joined: Sat Feb 23, 2013 9:04 pm
Air-con problem

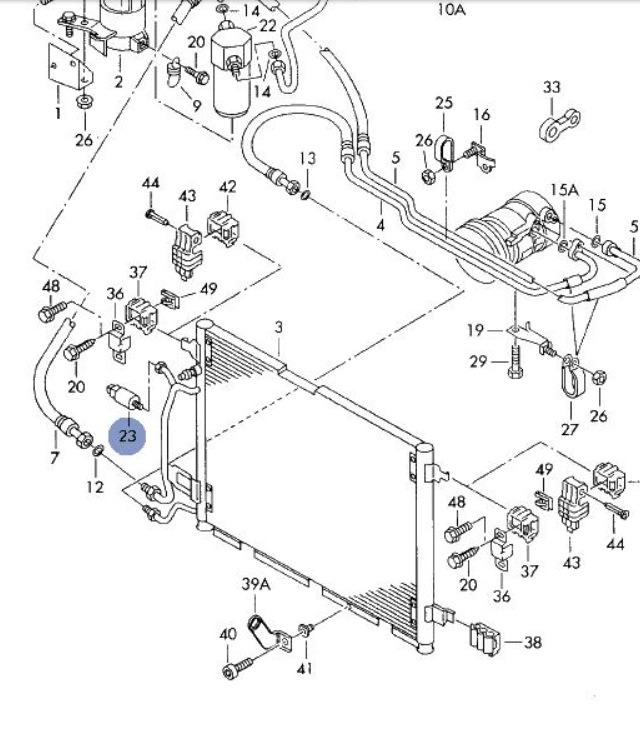

No. 23 is the high pressure switch!
Re: Air-con problem
Good job, and thanks for posting the information. Glad it was an easy fix for you.
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
-
Russellj80
- Neutral
- Posts: 29
- Joined: Sat Feb 23, 2013 9:04 pm
Air-con problem

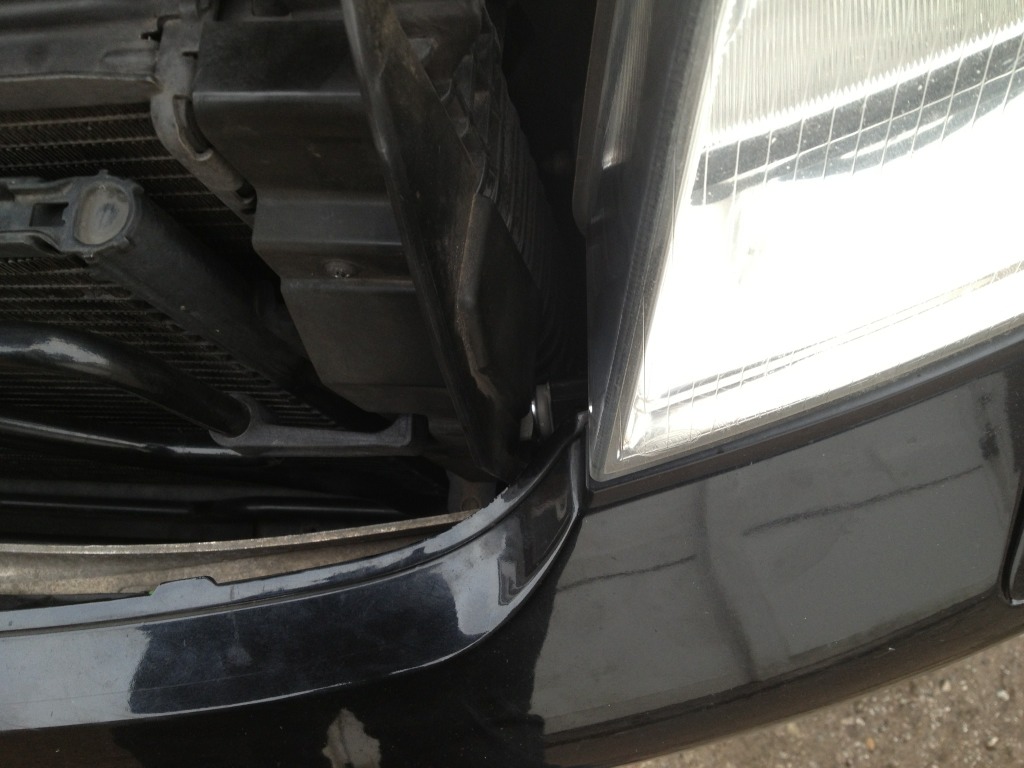

You can just see the gray/silver part of the switch sitting left of the headlight. Accessible once you remove the cover down the side of the radiator.
