I'm getting a few TCU comms errors in the Engine ecu, ABS module and Instrument cluster so want to check the TCU for poor connections etc. Can someone tell me its location on a 2003 RHD please. I had the passenger side carpet up a year or so ago and remember seeing a box with a module inside but thought this was the convenience module.
Avus Avant, RNS-E mk2 with sds and Bluetooth, Milltek, Hotchkis, Bilstein, Forge, ITG, A.C.E, Wagner, FBMFSW, MTM.
-
launching_rs4
- Neutral
- Posts: 10
- Joined: Fri Sep 11, 2009 6:49 am
Re: TCU location
On RHD it's in the passenger's footwell area, and the unit under the passenger's seat is the convenience ECU IIRC.
______________________________________________________
C7 A6 allroad 3.0TDi.
Tiguan 2.0TDi R-line
C7 A6 allroad 3.0TDi.
Tiguan 2.0TDi R-line
Re: TCU location
Your signature pic is a bit on the big side.launching_rs4 wrote:On my RHD RS6 its under the front carpet on the drivers side
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: TCU location
God I'm still confused, Drybeer says it's on the passenger side and launching rs4 says it's on the drivers side.
The only thing I know for sure is Bam hasn't got one on his Avant
The only thing I know for sure is Bam hasn't got one on his Avant Avus Avant, RNS-E mk2 with sds and Bluetooth, Milltek, Hotchkis, Bilstein, Forge, ITG, A.C.E, Wagner, FBMFSW, MTM.
Re: TCU location
Shoppinit wrote:Where is the TCU? Driver or passenger side?Daveperc wrote:Passenger side - along with a variety of other systems - all designed to get wet!!
Dave
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: TCU location
Ok Shop, I trust you I'll take the passenger side apart. It's strange as I had the passenger side apart a few years ago when I had water coming in up the air con drain funnel. I found the black plastic box but only saw a convenience unit in it.
Avus Avant, RNS-E mk2 with sds and Bluetooth, Milltek, Hotchkis, Bilstein, Forge, ITG, A.C.E, Wagner, FBMFSW, MTM.
Re: TCU location

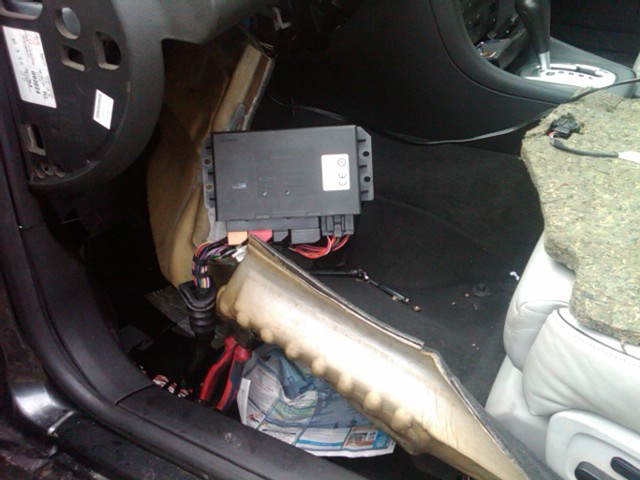

Hmm... Found this:
That looks more like convenience module...
That looks more like convenience module...
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: TCU location
Yes that looks exactly like what I found under my carpet, the casing is plastic. Afaik the TCU has a metal / alloy casing
Avus Avant, RNS-E mk2 with sds and Bluetooth, Milltek, Hotchkis, Bilstein, Forge, ITG, A.C.E, Wagner, FBMFSW, MTM.
Re: TCU location
It does. But it's in a plastic box. Also is only has one large connector.
More info here...
http://www.vwaudiforum.co.uk/forum/show ... post725998
More info here...
http://www.vwaudiforum.co.uk/forum/show ... post725998
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: TCU location
Looks like this:
Daytona RS6 C5 Avant. Viper'd, Billies, Waggers, MTM box brain, C6 stoppers, xcarlink, R8 coolant cap (woohoo)
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
///M3 E46 | XC90 (V8, natch) | Passat GTE | RR Classic V8 flapper
"The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at and repair."
Re: TCU location
Defo under UK drivers side front carpet in a black plastic box. Had mine out last year when sending to Viper.
-
launching_rs4
- Neutral
- Posts: 10
- Joined: Fri Sep 11, 2009 6:49 am
Re: TCU location
Its definitely under the drivers side front carpet, I had to go in there to confirm I had a MTM TCU. The TCU is a metal case like the ECU but it's enclosed in a plastic box, have to pop that open first to access it. The convenience/comfort unit is under the carpet on the front passenger side.
This is a RHD vehicle and I'm in Australia
This is a RHD vehicle and I'm in Australia
Re: TCU location
Bet that cost a small fortune in Australia.
Avus Avant, RNS-E mk2 with sds and Bluetooth, Milltek, Hotchkis, Bilstein, Forge, ITG, A.C.E, Wagner, FBMFSW, MTM.
Re: TCU location
Finally got round to looking for the TCU, found it under the drivers side carpet
Avus Avant, RNS-E mk2 with sds and Bluetooth, Milltek, Hotchkis, Bilstein, Forge, ITG, A.C.E, Wagner, FBMFSW, MTM.
