Front discs/caliper

Post by Thedarkside » Sun Aug 24, 2025 3:59 pm

Afternoon people

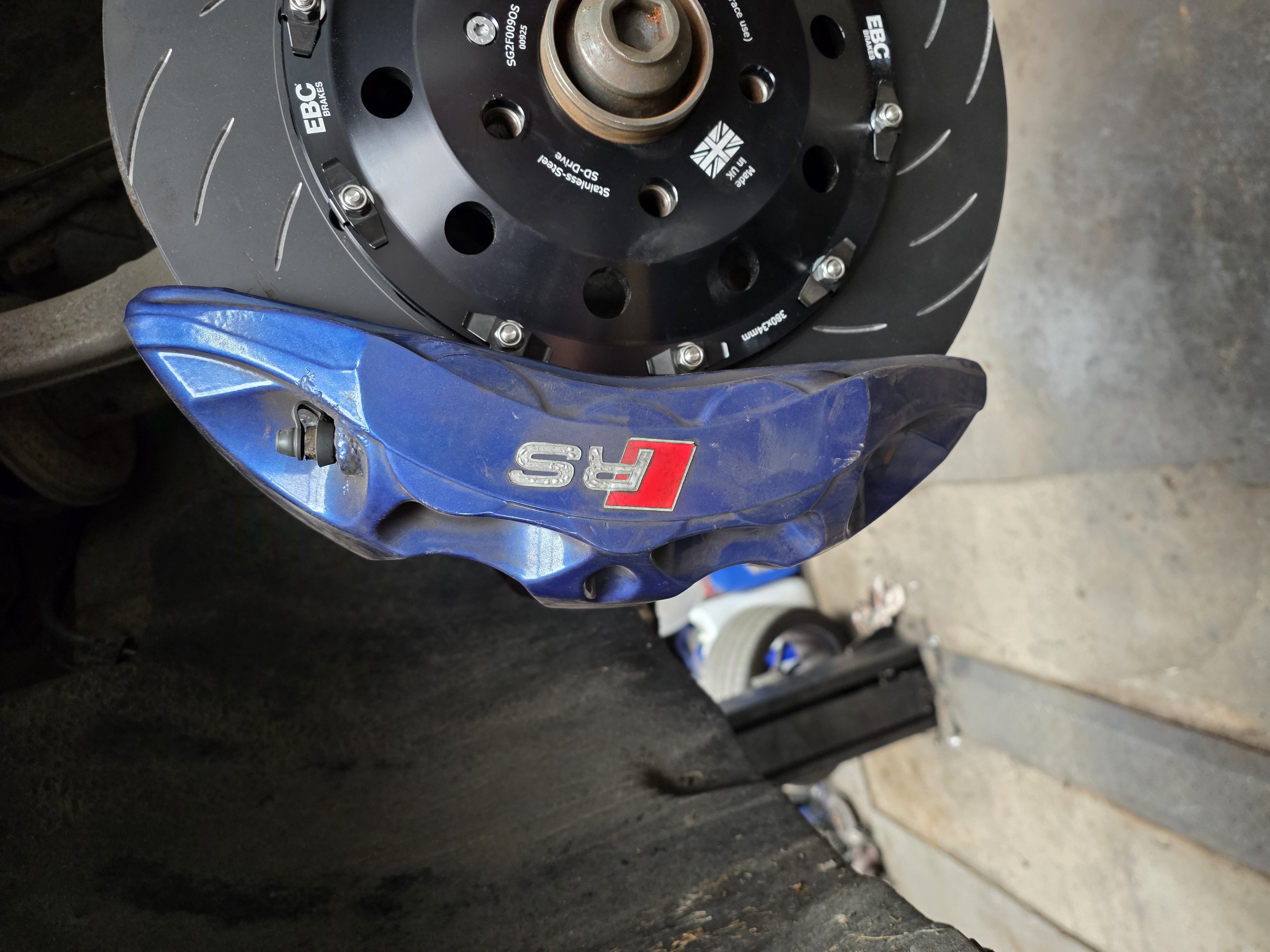

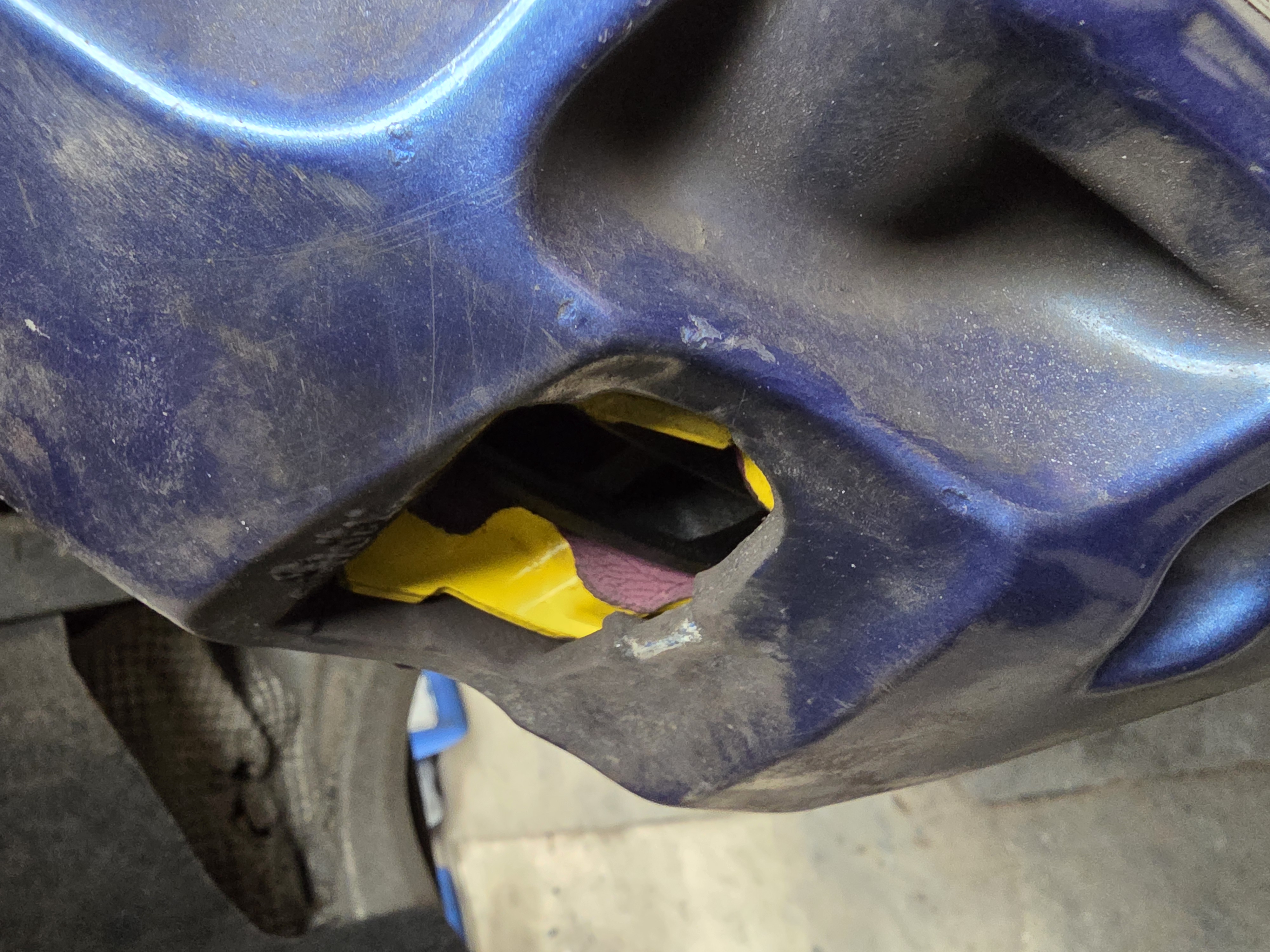

I have a 2014 b8 rs4, but it has non standard front discs & calipers fitted from previous onwer. Went to change discs/pads for ebc 2 piece floating fronts and ebc yellow pads, the pads fit as have worked out the caliper is an Akebono 6 pot so the b9 pads fit.

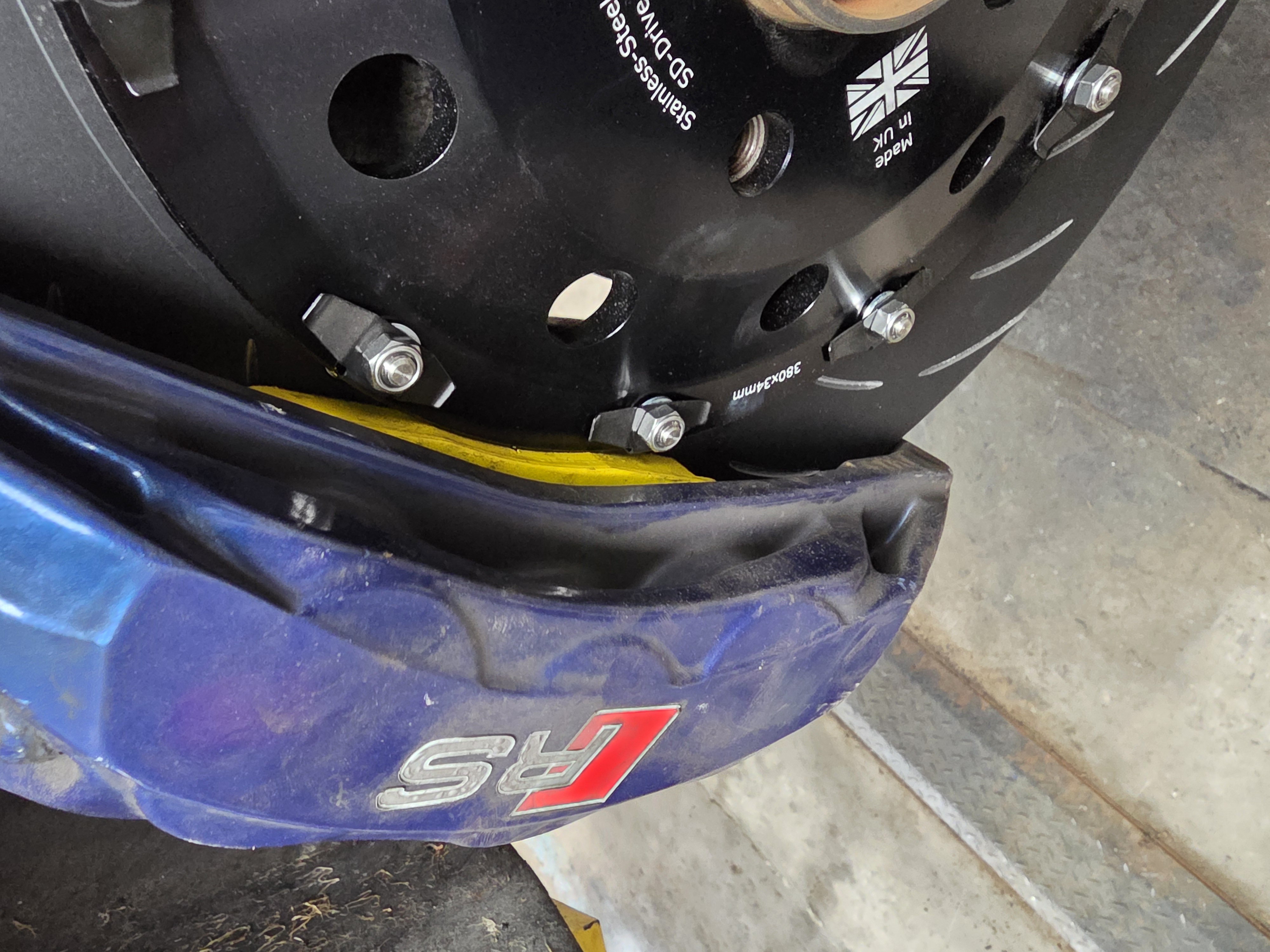

The problem is the disc bell housing is to big for the caliper to bolt back on. Are the b9 discs a diameter of 375mm or 380mm?

Any advice would be helpful

Thanks
Attachments

Jools
2nd Gear
Posts: 130
Joined: Sat Jan 18, 2020 9:18 pm

Re: Front discs/caliper

Post by Jools » Mon Aug 25, 2025 4:58 pm

My 2018 RS4 B9 has 375mm x 36mm front disc's.

These are a 'floating' discs with a fixed caliper attached to the front wheel hub. Most cars are solid disc's with 'floating' calipers.

I hope this helps

Jools

Thedarkside
Neutral
Posts: 10
Joined: Mon Dec 30, 2024 5:28 pm

Re: Front discs/caliper

Post by Thedarkside » Mon Aug 25, 2025 7:54 pm

Thanks Jools for the reply.

It does help thanks, the lad fitting them for me looked into it aswell, said same thing, 375mm is want I should have!!

May have to sell them or try and get a refund!!

Start again!!
