Brake ducts..

Post by **DaveP** » Sat Oct 08, 2005 7:05 pm

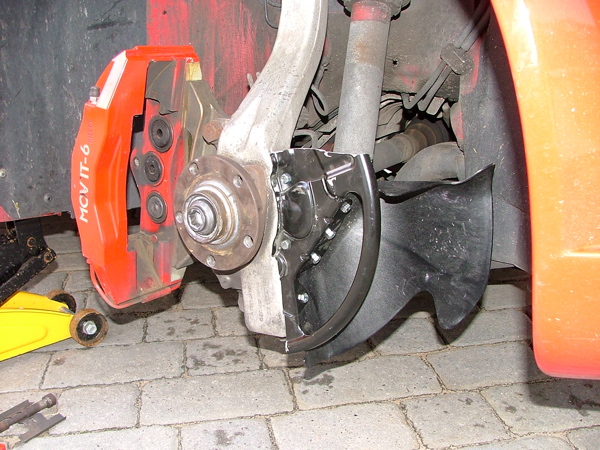

Finally got around to installing the Phaeton ducts today...bit of modifying required, but a pretty easy job...

Pretty happy, with the Movits it looks like the air is being directed into the correct place...

Post by **Nige_RS4** » Sun Oct 09, 2005 11:03 am

Looks good Dave, rough price for a pair? Do you have the part nos. handy? I assume they will fit the S4 upright too?

Post by **>RS4<** » Sun Oct 09, 2005 11:05 am

SO these are the VW Pheaton ducts?(think they will fit the A8 too)

Do you have the part.nr?

Looks quite good to me....

Post by **DaveP** » Sun Oct 09, 2005 11:36 am

Here's the part numbers..

VW Phaeton
3D0 615 447D - cooling duct left
3D0 615 448D - cooling duct right

3D0 615 311C - splash shield left
3D0 615 312C - splash shield right

...You also need some 6mm bolts to fasten it all together - I imagine these are also orderable - I forgot so had to make a trip to the local hardware store and cut some down...

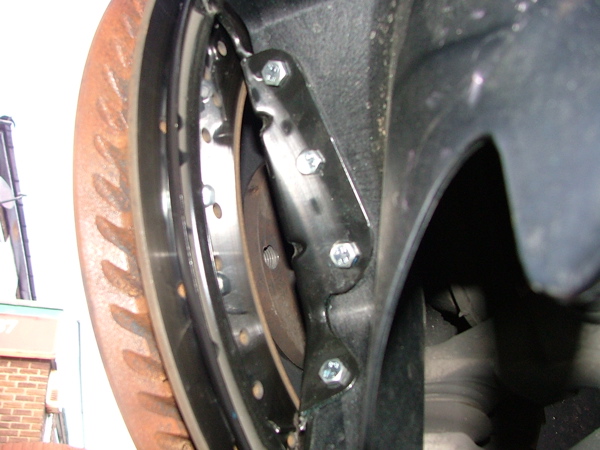

Installation requires cutting down the splash guards as you can see in the first pic...a nice hacksaw and metal file required...

I think total part price came to about 60quid...

Post by **RS4ever** » Sun Oct 09, 2005 3:52 pm

Dave, this is the best post I have seen for a long time. That's really neat. I was going to connect some right angle bends to my existing backing plates but there is nowhere to run the hose.

So, its the Phaeton splash guards you have to cut? You just remove the original RS4 ones?

VW are going to be very puzzled by a sudden run on Phaeton parts

Thanks so much for this. You can have the best brakes in the world but if they get hot as they do on the track, it damages everything.

Post by **RS4ever** » Sun Oct 09, 2005 4:18 pm

Another question. It looks like 4 6mm bolts per side. Do you need nuts or are there welded ones?

Post by **philipwalker** » Sun Oct 09, 2005 4:47 pm

A good "top tip"
A job for next week I think.
Thanks Dave

Post by **DaveP** » Sun Oct 09, 2005 7:43 pm

Yep, it's the splash guards you need to cut...I actually cut it top and bottom, so it's really now just there to hold the air duct - you don't need to cut the top, but I didn't want it getting in the way of any air flowing to the top of the disc...I didn't have any splash guards on at all before - the original RS4 ones were removed when I got the Movits fitted.

There are 4 6mm bolts holding the plastic duct to the splash guard, then two to hold the splash guard to the upright...no bolts..I just threadlocked them and tightened them up (there are no nuts on the original splash guards either - you can re-use the existing splash guard bolts if you have them).

They would actually be far more effective if the plastic air duct 'scooped' from a bit lower down - scooping clean air from under the car...but hey, it's better than what's there as standard (ie. Nothing) !!

Dedicated hose is probably better, but much harder to do...

Post by **Golich** » Sun Oct 09, 2005 11:55 pm

Top post Dave

Post by **bakerdcb** » Mon Oct 10, 2005 8:24 am

Really helpful Dave, cheers. I've got no excuse now not to try it myself!

When you've tracked it at Croft next weekend let us know whether you notice any difference with regards to brake fade etc. with the extra cooling

Post by **derdle** » Mon Oct 10, 2005 10:52 am

Will this mod be ok inside stock 18" wheels?

Post by **RS4ever** » Mon Oct 10, 2005 11:04 am

bakerdcb wrote: When you've tracked it at Croft next weekend let us know whether you notice any difference with regards to brake fade etc. with the extra cooling

Brake fade is not a problem with Movit or AP brakes but they get much too hot (over 700C) and wear down pads and crack discs. The cooling should fix that at least.

Post by **DaveP** » Mon Oct 10, 2005 12:07 pm

derdle wrote:Will this mod be ok inside stock 18" wheels?

Yes...I'm still running stock wheels...although I have got spacers (but that's due to my 380mm discs, not the ducts)

Won't get fade on track - didn't do last time, but hopefully the ducts will give a bit more life to the discs and keep the temps down...

Post by **VST** » Mon Oct 10, 2005 1:16 pm

why do you need spacers for the 380's Dave?

I dont have any on mine!

Ducts look well, they should work very well with the wheelarch liner mod and Sportec front grilles I have, must order up a few bits from the VW dealer.

Post by **DaveP** » Mon Oct 10, 2005 1:39 pm

Yeah...I've also got the sportec grills in and my own 'dremel' mods to the wheelarch liner

No spacers ???...Really ?...my calipers foul the standard wheel without spacers (well, that's what Gordon told me at least!) - maybe the bells you have are slightly different?
